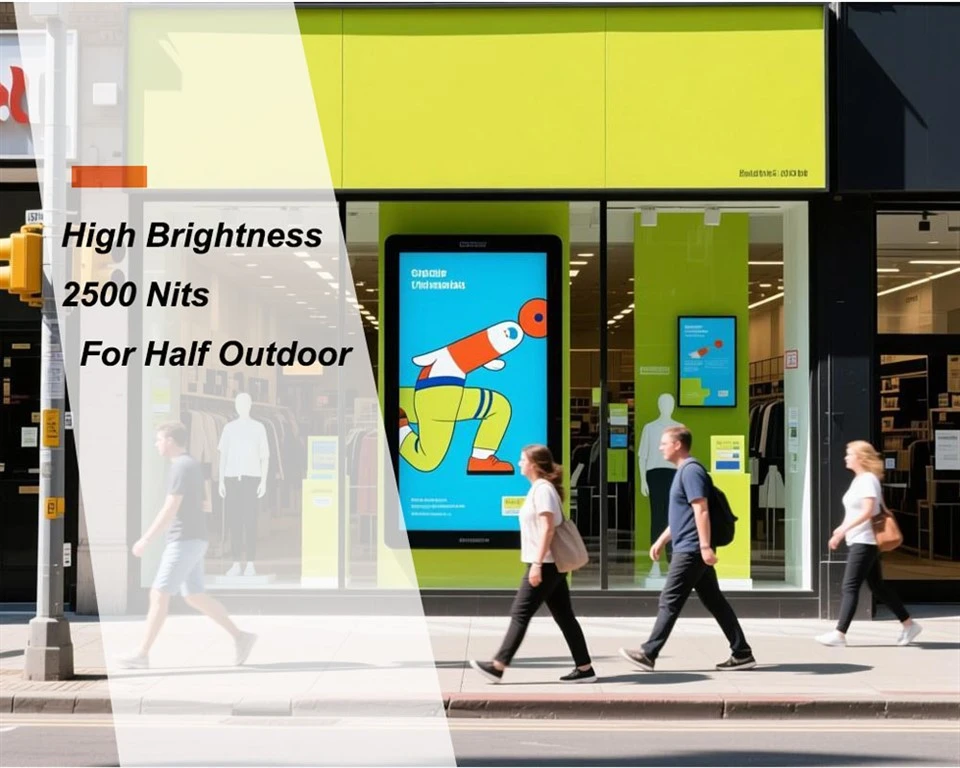

Sunlight Readable
＆High Brightness LCD Panel ＆Automatically Light Sensor
01
LCD Backlight 2500-5000nits
Read Well under Direct Sunlight
02
Automatically Brightness adjustment
Maximum energy saving
＆Industrial-grade panel ＆Polarized sunglasses visible
01
LCD Panel withstand 110 degrees
No Dark Screen in Sunlight
02
Using QWP Technology to Improve Visibility
Can Read When Wear Sunglasses
＆ Low noise design ＆Industrial Design Ultra-thin Casing
01
Less than 25dB sound.
as quiet as a recording studio
02
Thin Beze
Thin shell
Different Installation Options
01
1.Hanging
02
2.Floor stand
32-49 inch Specification
|
Model |
YT32-O |
YT43-O |
YT49-O |
|
|
LCD panel |
Size |
32" |
43" |
49" |
|
LCD type |
IPS,RGB |
IPS,RGB |
IPS,M+(RGBW) |
|
|
Ratio |
16:9 |
16:9 |
16:9 |
|
|
Resolution |
1920*1080 |
1920*1080 |
1920*1080 |
|
|
Brightness |
2500nits |
2500nits |
2500nits |
|
|
Contrast |
1200:1 |
1200:1 |
1200:1 |
|
|
View Angle |
178/178 |
178/178 |
178/178 |
|
|
Surface treatment |
Haze 3% |
Haze 3% |
Haze 3% |
|
|
Life time |
50000Hrs |
50000Hrs |
50000Hrs |
|
|
Working time |
7*24Hrs |
7*24Hrs |
7*24Hrs |
|
|
Orientation |
Support horizontal and vertical |
Support horizontal and vertical |
Support horizontal and vertical |
|
|
Motherboard Options |
Android Board |
RK3288,RK3566,3568 etc(USB, WIFI ,LAN, HDMI,4G optional) |
||
|
Monitor Board |
HDMI input*1 VGA input *1 |
|||
|
Windows Board |
J1900,J4125,J6412,i3,i5,i7,i9 (USB, WIFI ,LAN, HDMI,4G optional) |
|||
|
Appearance |
Color |
Black |
Black |
Black |
|
Beze |
18mm |
18mm |
18mm |
|
|
Outside |
739*433*80mm |
980*568*80mm |
1114*644*80mm |
|
|
Net weight |
15kg |
25kg |
29kg |
|
|
Carton Size |
860*550*220mm |
1100*670*220mm |
1250*750*220mm |
|
|
Gross weight |
18kg |
28kg |
32kg |
|
|
Vesa size |
VESA200*300mm |
VESA300*400mm |
VESA400*400mm |
|
|
Operating |
Operating temperature |
-20--70 |
-20--70 |
-20--70 |
|
Operating Humidity |
10%--85% |
10%--85% |
10%--85% |
|
|
Power |
Power Voltage |
180-264V, 50/60Hz |
180-264V, 50/60Hz |
180-264V, 50/60Hz |
|
Power |
160W |
260W |
220W |
|
55-86 inch Specification
|
Model |
YT55-O |
YT65-O |
YT75-O |
YT85-O |
|
|
LCD panel |
Size |
55" |
65" |
75" |
86" |
|
LCD type |
IPS,M+(RGB) |
IPS,M+(RGB) |
IPS,M+(RGB) |
IPS,M+(RGB) |
|
|
Ratio |
16:9 |
16:9 |
16:9 |
16:9 |
|
|
Resolution |
3840*2160 |
3840*2160 |
3840*2160 |
3840*2160 |
|
|
Brightness |
2500nits |
2500nits |
2500nits |
2500nits |
|
|
Contrast |
1200:1 |
1200:1 |
1200:1 |
1200:1 |
|
|
View Angle |
178/178 |
178/178 |
178/178 |
178/178 |
|
|
Surface treatment |
Haze 3% |
Haze 3% |
Haze 3% |
Haze 3% |
|
|
Life time |
50000Hrs |
50000Hrs |
50000Hrs |
50000Hrs |
|
|
Working time |
7*24Hrs |
7*24Hrs |
7*24Hrs |
7*24Hrs |
|
|
Orientation |
Support horizontal and vertical |
Support horizontal and vertical |
Support horizontal and vertical |
Support horizontal and vertical |
|
|
Motherboard Options |
Android Board |
RK3288,RK3566,3568 etc(USB, WIFI ,LAN, HDMI,4G optional) |
|||
|
Monitor Board |
HDMI input*1 VGA input *1 |
||||
|
Windows Board |
J1900,J4125,J6412,i3,i5,i7,i9 (USB, WIFI ,LAN, HDMI,4G optional) |
||||
|
Appearance |
Color |
Black |
Black |
Black |
Color |
|
Beze |
18mm |
18mm |
18mm |
18mm |
|
|
Outside |
1249.6*720.4*80mm |
1468.6*843.6*80mm |
1689.6*968*80mm |
1935*1106*85mm |
|
|
Net weight |
32kg |
40kg |
48kg |
68kg |
|
|
Carton Size |
1350*840*220mm |
1580*980*220mm |
1800*1100*220mm |
2100*1300*220mm |
|
|
Gross weight |
36kg |
44kg |
58kg |
85kg |
|
|
Vesa size |
VESA400*400mm |
VESA400*400mm |
VESA500*600mm |
VESA400*600mm |
|
|
Operating |
Operating temperature |
-20--70 |
-20--70 |
-20--70 |
-20--70 |
|
Operating Humidity |
10%--85% |
10%--85% |
10%--85% |
10%--85% |
|
|
Power |
Power Voltage |
180-264V, 50/60Hz |
180-264V, 50/60Hz |
180-264V, 50/60Hz |
180-264V, 50/60Hz |
|
Power |
310W |
440W |
660W |
960W |
|
