Product Introduction
23.6/24" Waterproof industrial monitor advantech touch screen monitor industrial lcd panel
Bestview Industrial Touch Screen Monitor Features
● 23.6/24-inch TFT LCD display, 1920 * 1080 resolution.
● High precision 10 points capacitive touch screen. Resistive touch available.
● True flat design, easy-to-install to make the total true flat front surface.
● Front surface IP65 rating dust-proof and waterproof.
● Advanced long service life LED backlight.
● Wide operational temperature range -10°C to +70°C.
● Standard 300 nits (cd/m2) brightness, support high brightness 1000nits or higher.
● A multitude of video input combinations, support I/O expansion.
● High performance and reliability under a harsh industrial environment.
● Support desktop, embedded, panel mount, and VESA mounting.
● Support customization service and upgrade.
● Available size:10.4/12.1/13.3/15/15.6/17/18.5/19/21.5/23.6 inch

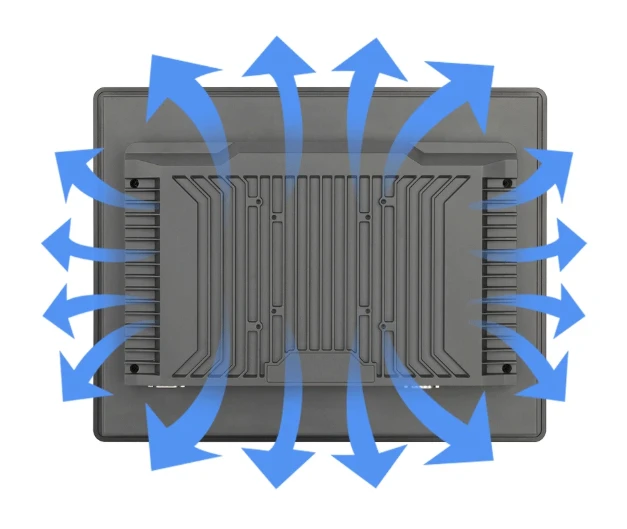

Efficient heatdissipation back cover
Fully enclosed back cover,efficient heat dissipation

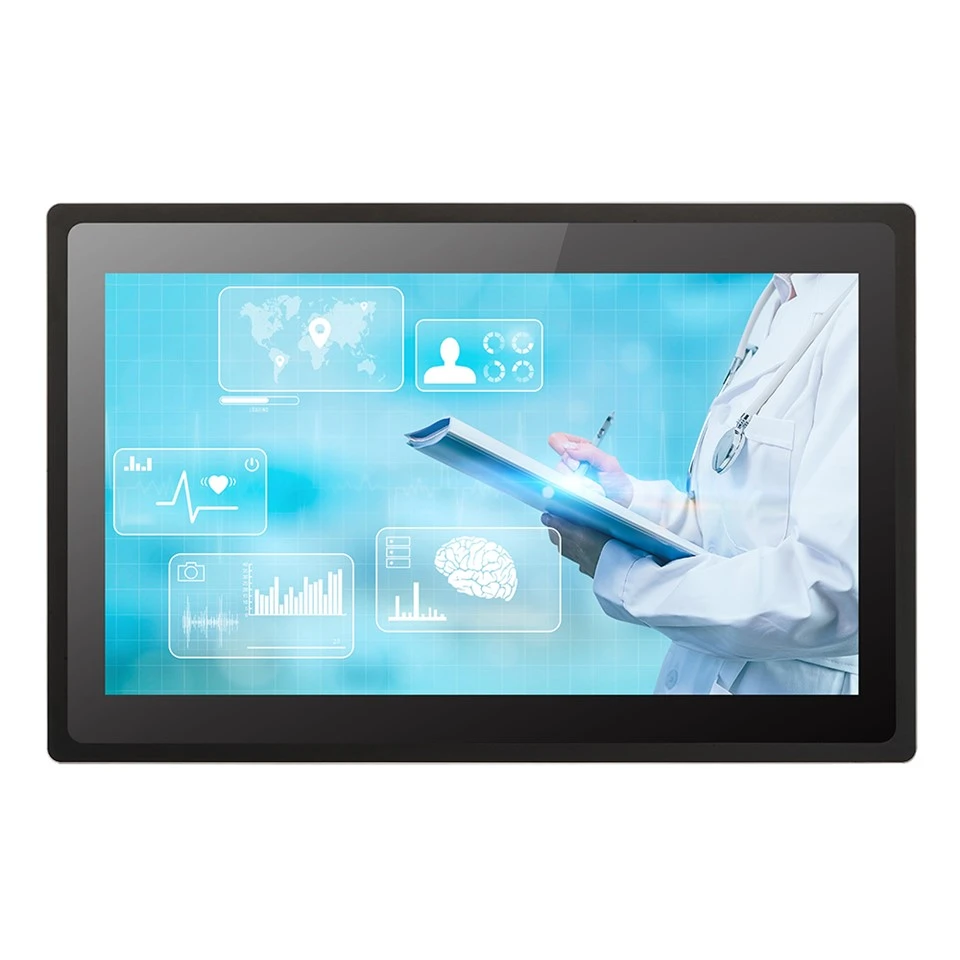

his True Flat Capacitive Touch Screen FHD Monitor with IP65 front panel, the10 points projected capacitive touch display is engineered specifically for industrial applications clients who are looking for a reliable and durable touch screen working in harsh conditions for 7/24 hours. The durable flat panels are fully industrial LCD monitors with bright TFT displays that can be connected to many IPCs and almost all standard PCs in the market. The TFT LCD is protected by a scratch-resistant and anti-reflective screen and is also available with an optional touch sensor for direct process control. It is ideal for check-in, turnstile devices, kiosks, gaming, banking, and all kinds of self-service terminals.

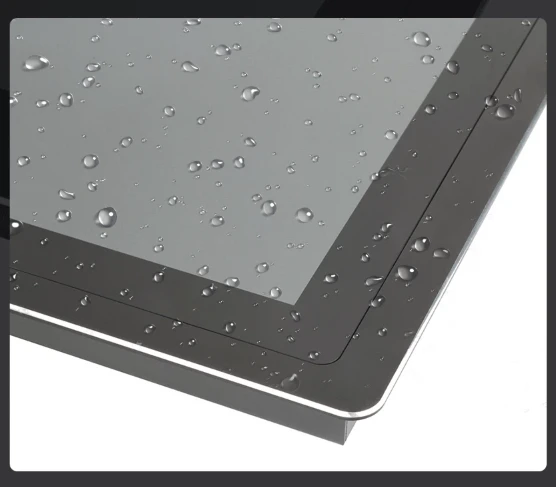

Waterproof Front Shell
The pure flat panel lP65/IP66 protection grade design effectively preventsdust, water droplets, etc.

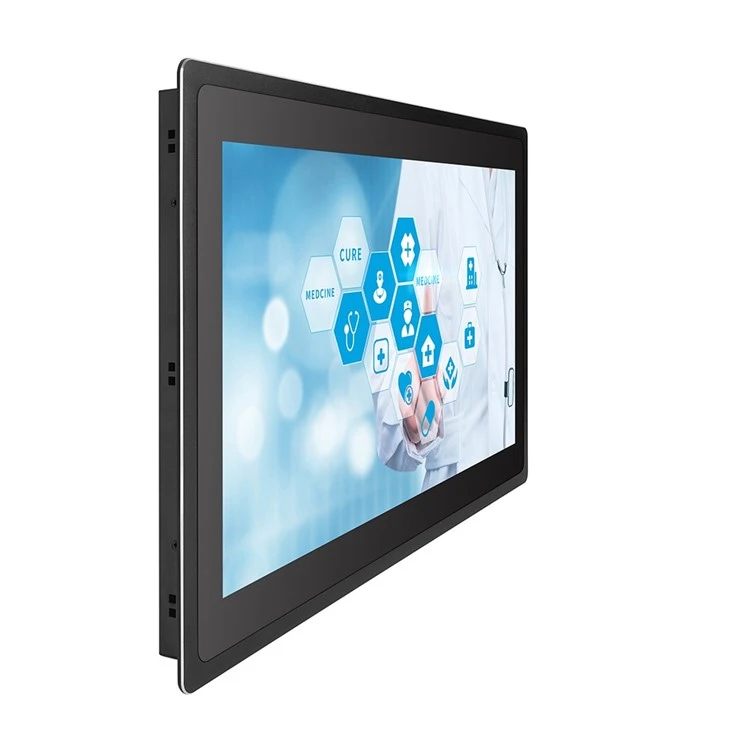

This 23.6/24" industrial waterproof monitor,designed with 3mm bezel, front panel waterproof, standard 300nits, support 1000nits or above with ligh sensor, anti glare.privacy protection.providing clear, high-quality image,support 24/7 reliable operation in a harsh environment.
A variety of installation methods can be applied to different scenarios
1.1xDevice
2.1xWall Mount Bracket(Optional)
3,1xPower Supply
4.1xPower Adapter
5.4xEmbedded Screws
6.1xWiFi Antenna

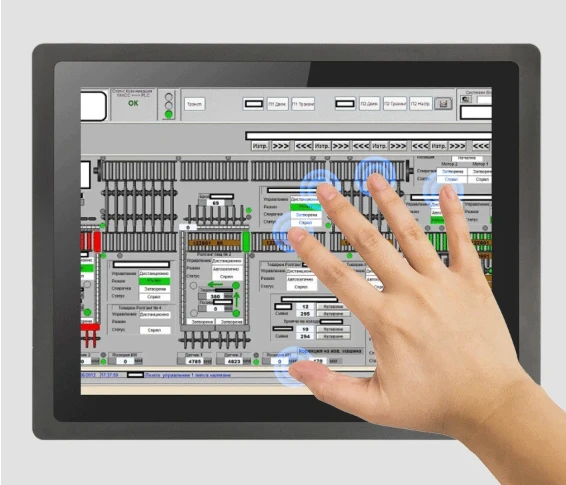

Capacitive touch and Non touch Available
1.12.1 inch industrial touchscreen monitor with PCAP Touch
2. Support single touch and multi touch,non touch Available
3. Touch with gloves is available
4. Touch response time <8ms
MAIN CATEGORIES
Bestview is a national high technology company with professional R&D ,produceand sell industrial touch monitor, All in one PC and Mini Pc. With the powerful technologyadvantage and rigorous quality control process, Bestview already got certifications of CEKCC, FCC,ROHS,IP66,HDMl and iso9001. Bestview has won the favorite of many customers
from abroad.
why choose us
15+ Years Touch Solution Provider
MOQ
Low MOQ of 1pcs for customization
Productionline capacity
in-house Touch Monitor/Touch Panel PC Production3000㎡factory,100 workers,7semi-automaticproduction lines,annual delivery quantity 120K
Product Testing
Leading service robotics brand with products sold in more than
R&D
20 R&D and after-sales engineers to provideprofessional technical support
Customer Feedback
0%lot relect rate,99%customer satisfaction85% repeated order
Price Advantage
Iuropean /Korea/Taiwan equivalent qualitywith lower price
Application scenario
Smart Medical terminal
Medical infrastructure and IT infrastructure through information technology Integration.equipped with smart medical Yang Fanset sail.
Smart Factory MES system
In smart factories, FWC products are human-machine in combination with MES system.nteractive,Production Kanban provideshardware technology landing office to help the industry Optimize Operations.
iOT Internet of Things
With warehouse management system,throughRFlD tag technology, cooperate Vehicle.mounted terminal and PDA terminal are theentire intelligent warehousing and logisticssystem.Provide reliable quarantee
Automatic control
With the upper software to achieve automaticcontrol
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bagand foam wrapping
2. Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPs,FedEx,TNT,Air freight,LCL/FCL Sea freight
Company Introduction
Bestview is a national high technology company, professional R&D, produce and sell bro adcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE,KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.Bestview main partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has alreadyapplied every photography field in the world, industry generation four, rail way traffic, industry application etc. The market has spread Europe, America, Southeast Asia and other more than 60 countries.
15+ Years Touch Solution Provider
3000+ Square Meter Workshop
Serving 50+ International Markets
PROFESSIONAL R&D TEAM
Bestview alreadygot certifications of CE, KCC, FCC,ROHS,IP66,HDMl and iso9001. Bestview has won thefavorite of many customers from abroad.
3000+
Square Meter Workshop
20000+
Units sold each year
40+
certification
50+
Countries
Certifications
Create a comprehensive solution for efficient human theft manag
HDMI
CE
ROHS
IP66
IP65
Question and Answer
Common Problem
Are you a trading company or factory?
We are a professional industrial Panel PC/monitor/Android touch panel PC manufacturer, Established more than 15 years
What's Minimum Order Quantity?
1 pcs sample. welcome to test our sample first and then place bulk order.
How long is your Lead Time ?
Different quantity with different production time.regular product with 7-10 days, customized with 15-25 days around.
Do you support OEM / ODM?
Yes, pls let us know your detailed requirements then we can provide you the solution.
ry dard righteous
First-class professional team for you to recommend products more in line with your needs. Perfect after-sale services exempt your worries.
Our address
No.5F, Building 24, Longbi Industry City, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China
Phone Number
+86-755-28447130
+8613632535154
sales@bestview.cc
Product Specification
|
Bestview 23.6/24 inch high brightness waterproof Monitor IP65 Aluminum Alloy 3mm Bezel Industrial Display |
|||||||||||
|
Display |
Size(inch) |
10.4inch |
12.1inch |
13.3inch |
15inch |
15.6inch |
17 inch |
18.5 inch |
19inch |
21.5 inch |
23.6 inch |
|
Screen type |
LCD screen with LED backlight |
||||||||||
|
Resolution |
1024x768 |
1024x768 |
1920x1080 |
1024x768 |
1920x1080 |
1280x1024 |
1920x1080 |
1280x1024 1440x900 |
1920x1080 |
1920x1080 |
|
|
Contrast ratio |
700:1 |
800:1 |
1000:1 |
800:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
|
|
Brightness |
300cd/㎡ |
350cd/㎡ |
250cd/㎡ |
350cd/㎡ |
250cd/㎡ |
300cd/㎡ |
250cd/㎡ |
250cd/㎡ |
250cd/㎡ |
300cd/㎡ |
|
|
Screen ratio |
4:3 |
4:3 |
16:9 |
4:3 |
16:9 |
5:4 |
16:9 |
5:4 16:10 |
16:9 |
16:9 |
|
|
Structure |
Material |
Full Aluminum case |
|||||||||
|
Touch screen |
Type |
10 points Projected capacitive touch 4 wires resistive touch Optional |
|||||||||
|
Response time |
＜8ms |
||||||||||
|
Accuracy |
＜2.5mm |
||||||||||
|
Transparency |
≥90% |
||||||||||
|
Protection |
The surface is coated with 1:1 PVC protective film |
||||||||||
|
Others |
Working environment |
-10℃～ 70℃; Humidity: 10%～ 90% |
|||||||||
|
Storage environment |
Temperature: -20℃～80℃; Humidity: 10%～90% |
||||||||||
|
Installation ways |
Embedded/Panel Mount, Wall Mount(VESA75*75mm/100*100mm) |
||||||||||
|
Power consumption |
≤60W |
||||||||||
|
Warranty |
1 year warranty |
||||||||||
|
Accessories |
Cables |
VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|||||||||
|
Bracket |
Wall mounted bracket, embedded bracket, desktop bracket(optional) |
||||||||||
|
Adapter |
Power adapter |
||||||||||
