Product Introduction
01

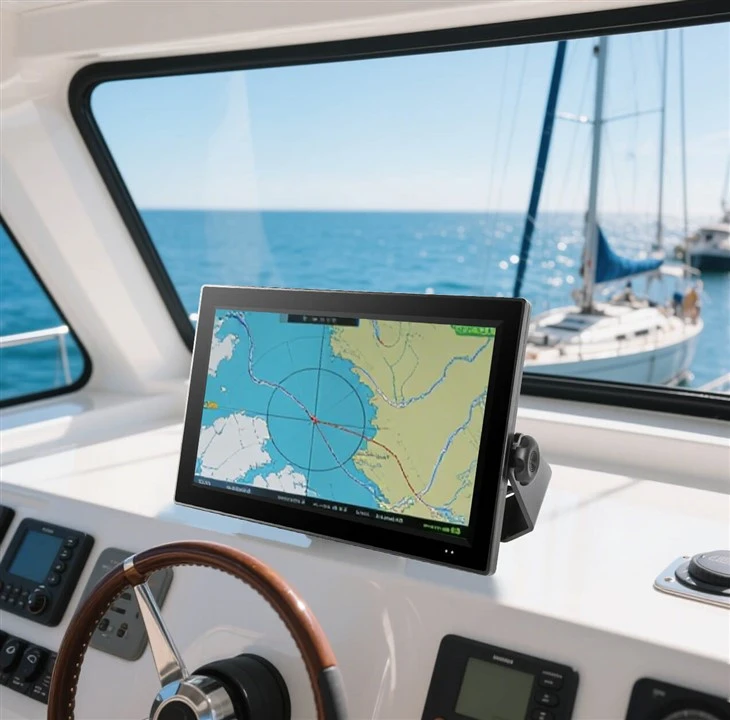

1. Application fields: Fishing boat
01
02

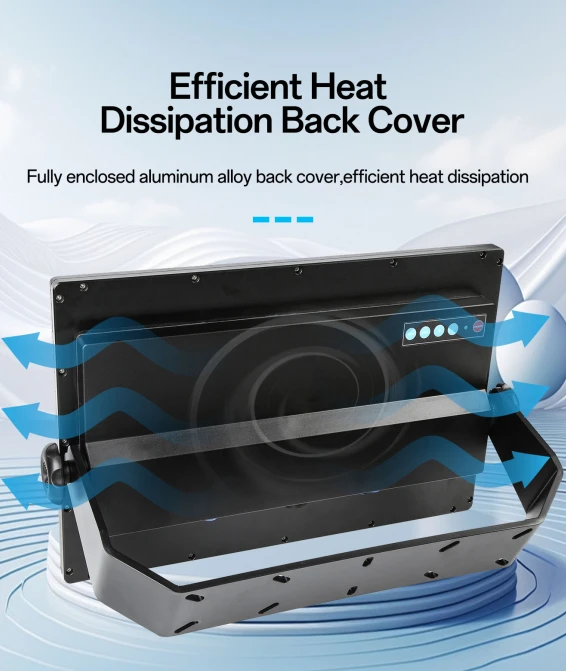

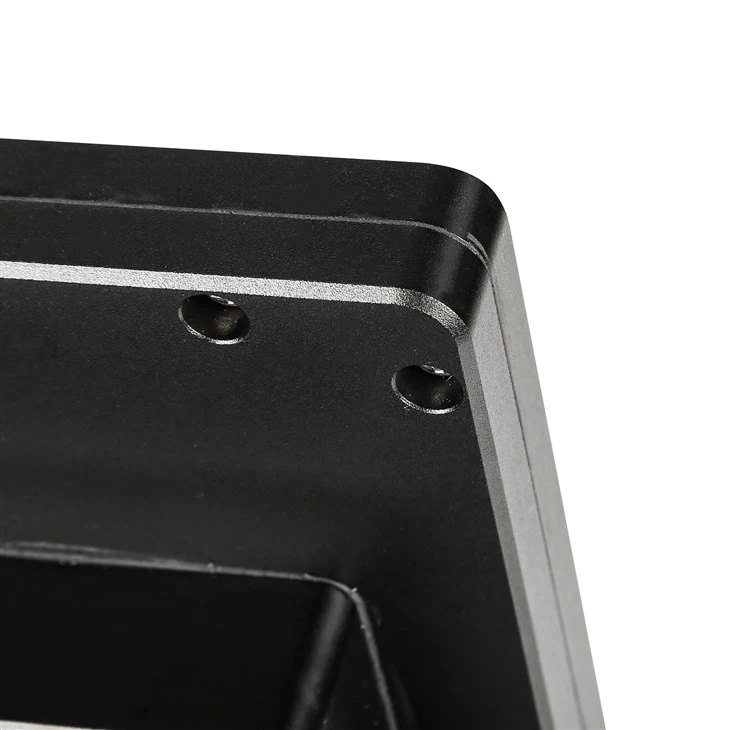

2. Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.
02
03
3. This machine is of Window(s) OS design, which could be connected to internet and easy connection to wifi.
03
04
4.Remotely report system utilization and memory usage.
04
05
5. No dust, resistant high temperature /humidity, Support long time working.
05
06
6.Color for metal outer frame is available with Black color, Shinning-silver color, Color Is optional.
01
07

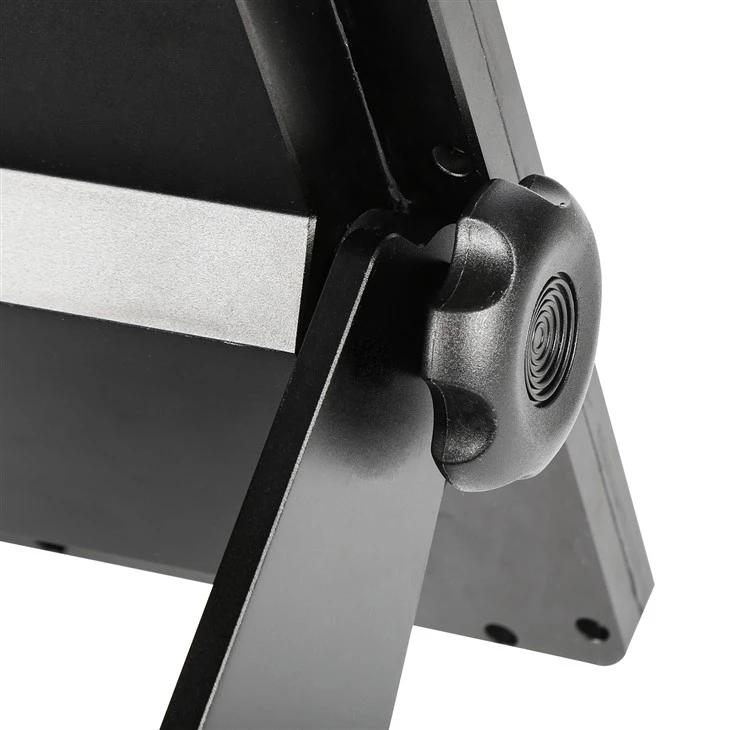

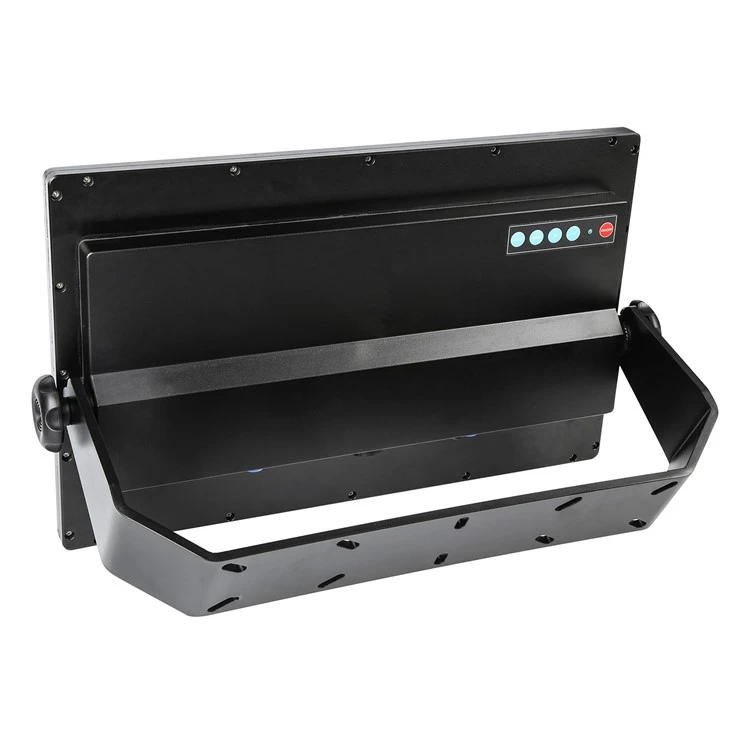

7. Fixing method: embedded, standing, wall mounting or ceiling fixing.
02
08
8. Support appearance, performance, module customization.
03
09
9.Waterproof grade:ip67
04
10
10.Native Resolution：1920*1080
05
Specification
|
LCD panel( IPS screen) |
|
|
Panel size |
15.6" 18.5" 21.5" 23.6" (16:9) |
|
Native Resolution |
1920*1080 |
|

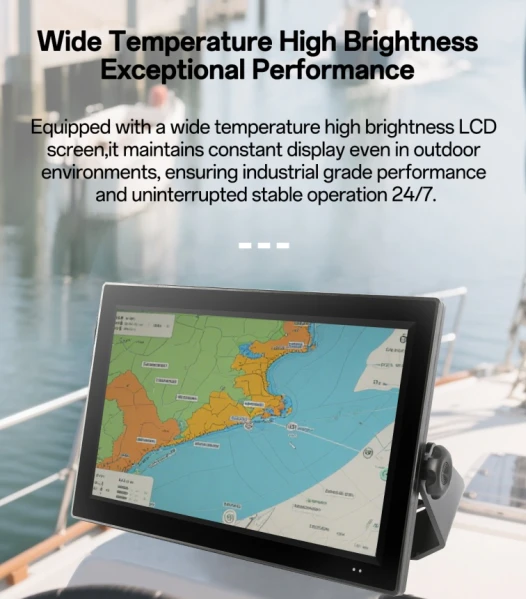

Brightness (cd/m²) |
250cd/m2 1000cd/m2 1500cd/m2 Optional |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|

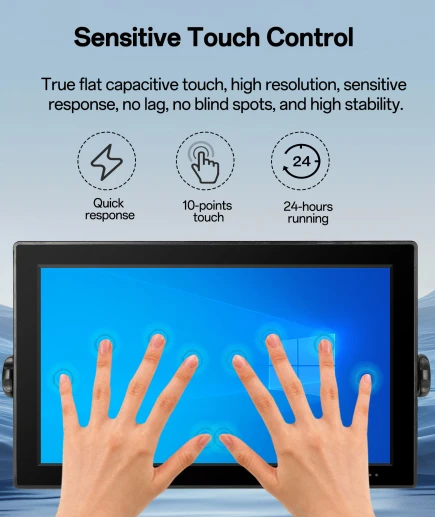

Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

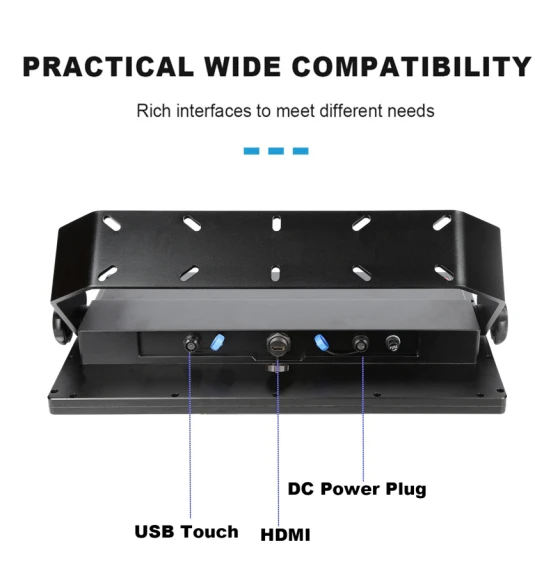

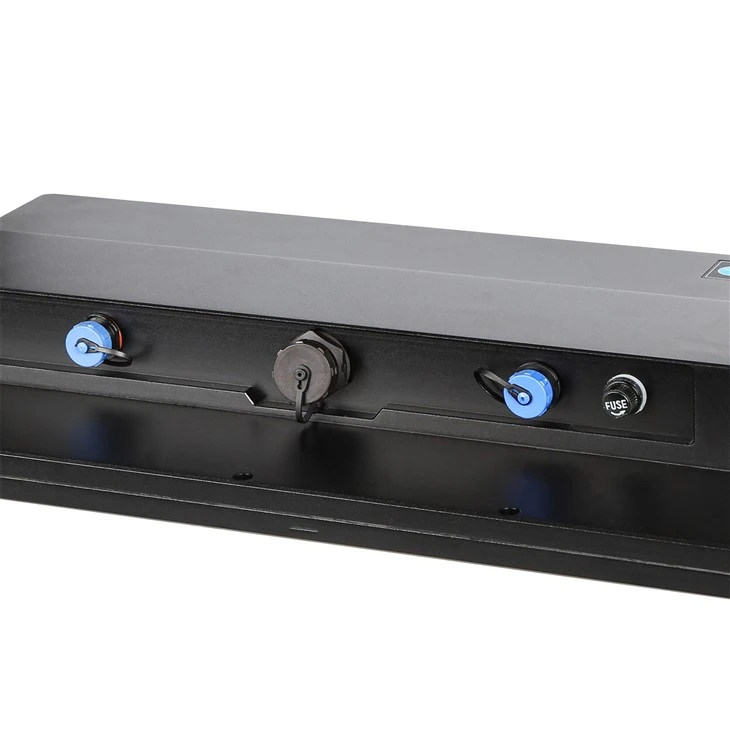

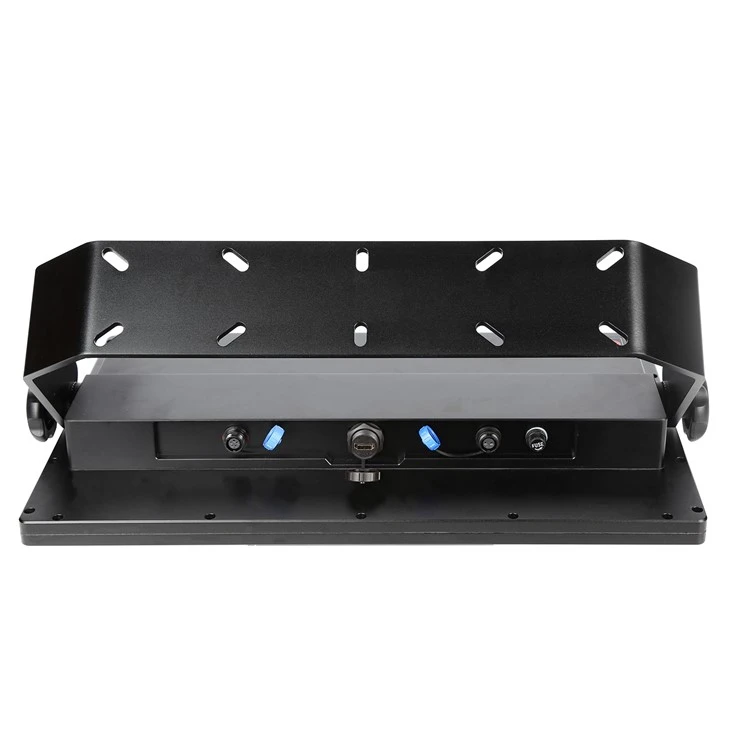

Signal Ports |
|
|
VGA |
1×IP67 VGA |
|
USB |
1xIP67 USB for touch |
|
HDMI |
1xIP67 HDMl |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -20 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 2pieces/carton |
|
Accessories |
IP67 Power adapter, ip67 *HDMI cable, IP67 USB touch cable, mountable stand for boat, optional |
|
Others |
|
|
Warranty |
1 year warranty |
