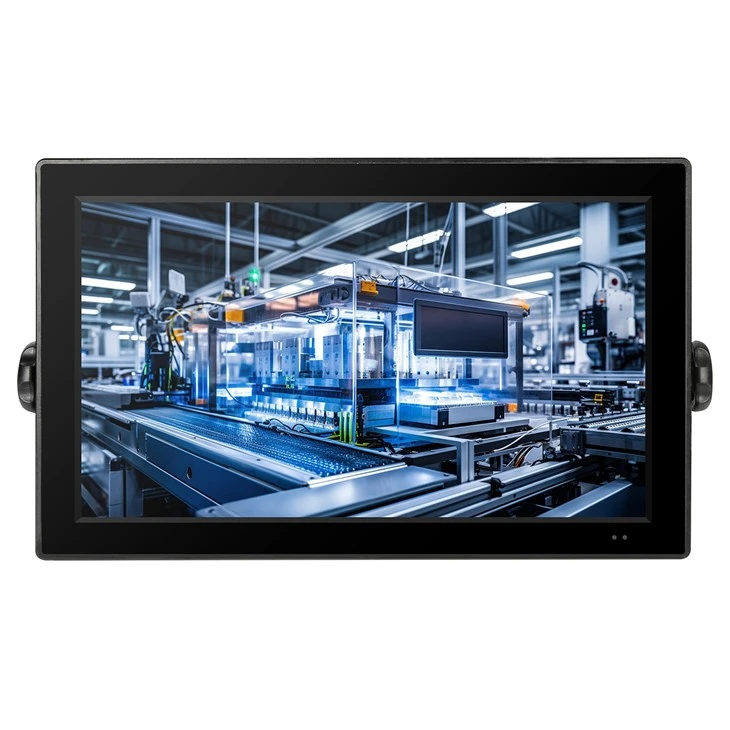

Product Introduction
01
1.Size:21.5" (7"-55" is supported)
02
2.Resolution:1920*1080
03
3.Touchtype:10 points capacitive touch screen
04

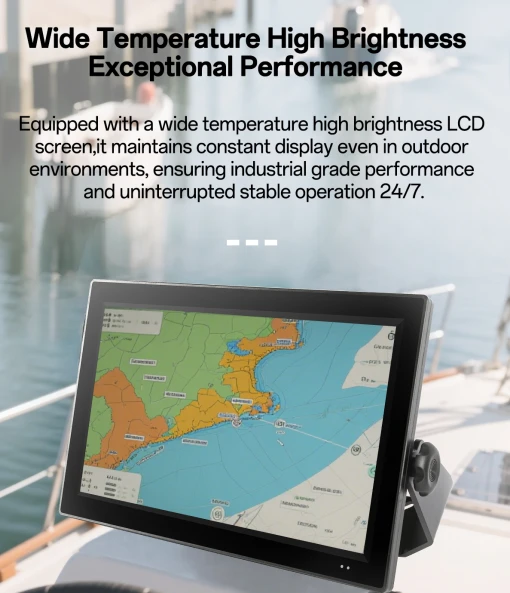

4.Brightness: 1500 nits
05
5.Power: DC 9~36V input
06
6.Touch Type:10 Points Capacitive Touchscreen (resistive touch is optional)
07

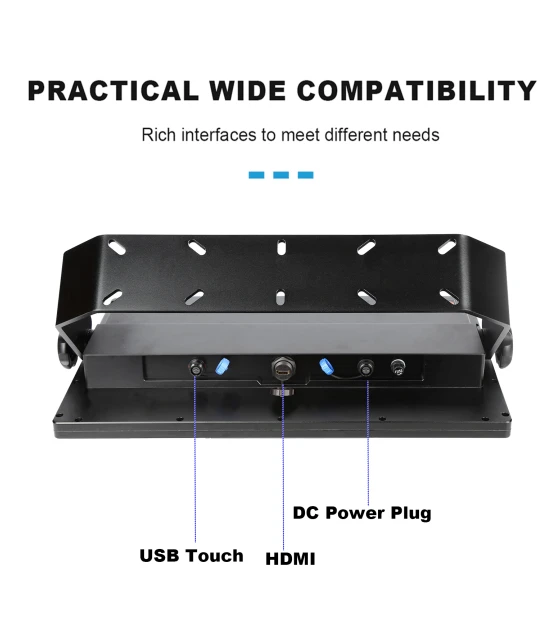

7.I/O Ports:1*HDMl+1*USB+1*Power Jack
08
8.Resolution:1920*1080
09
9.Aspect Ratio:16:9
10

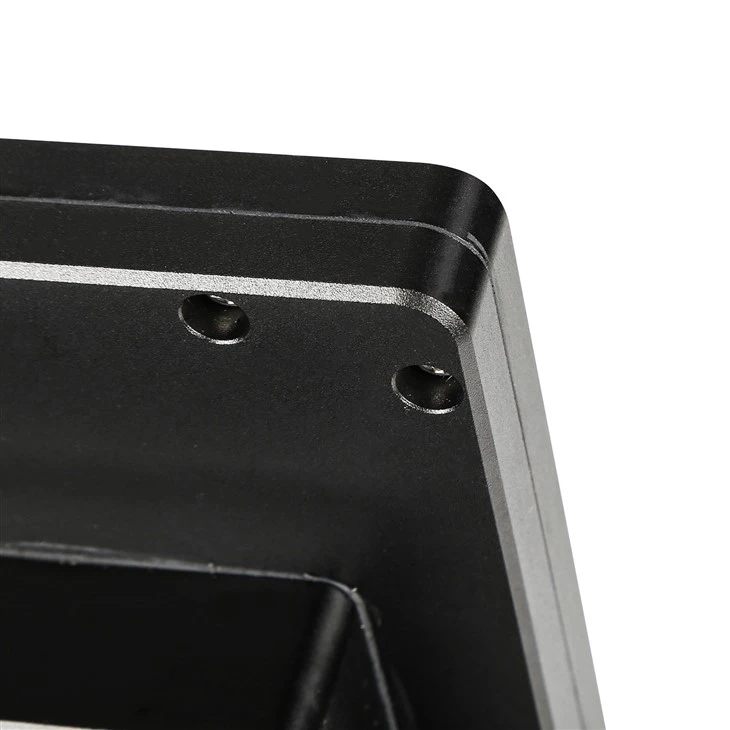

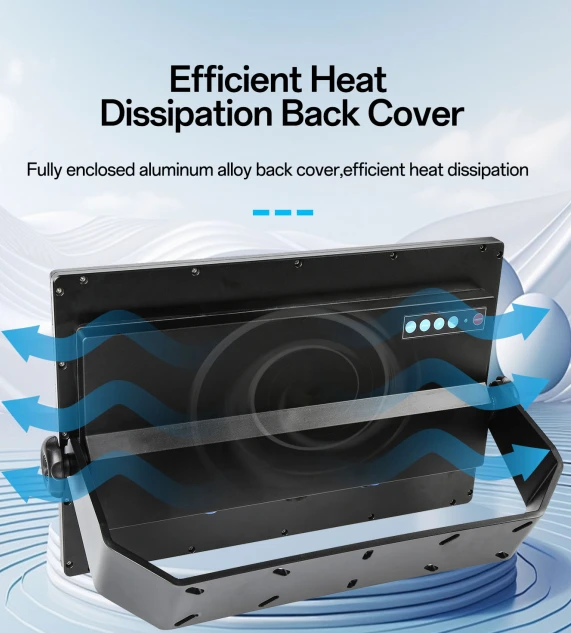

10.Housing:Stainless Steel / Aluminium Alloy
11

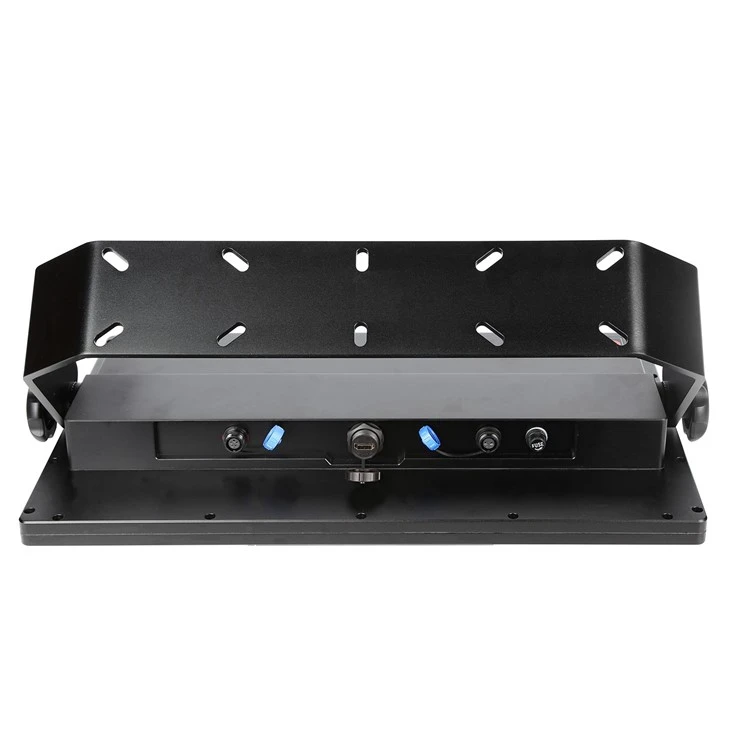

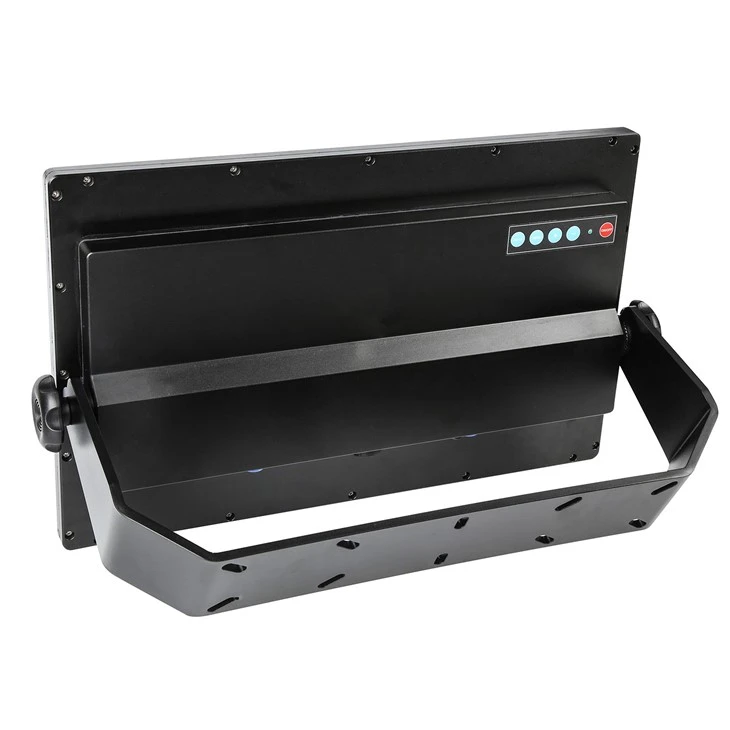

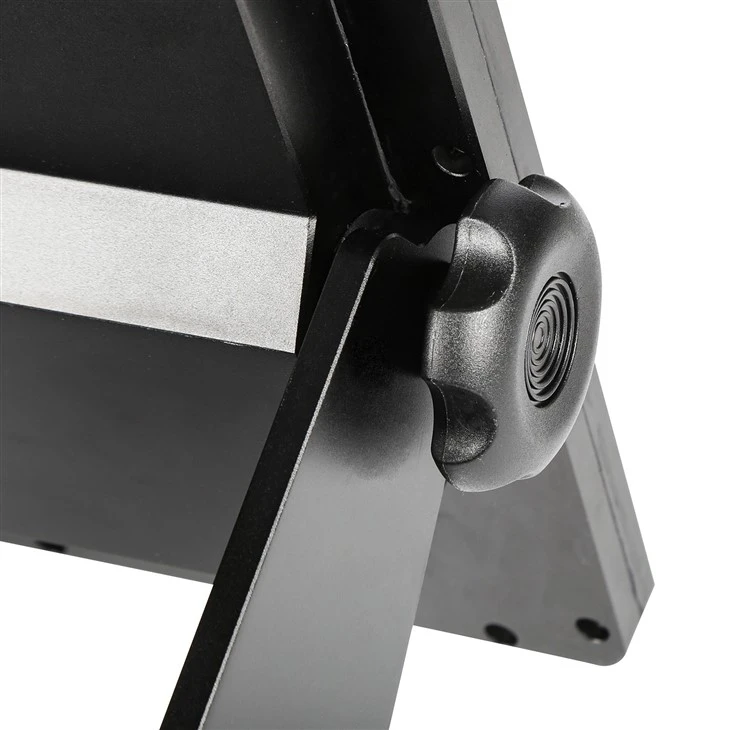

11.Mounting:Wall/Gimbal mount
12
12.Weight:7.5kg debugging and maintenance services.
Specification
|
LCD panel( IPS screen) |
|
|
Panel size |
15.6" 18.5" 21.5" 23.6" (16:9) |
|
Native Resolution |
1920*1080 |
|
Brightness (cd/m²) |
250cd/m2 1000cd/m2 1500cd/m2 Optional |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

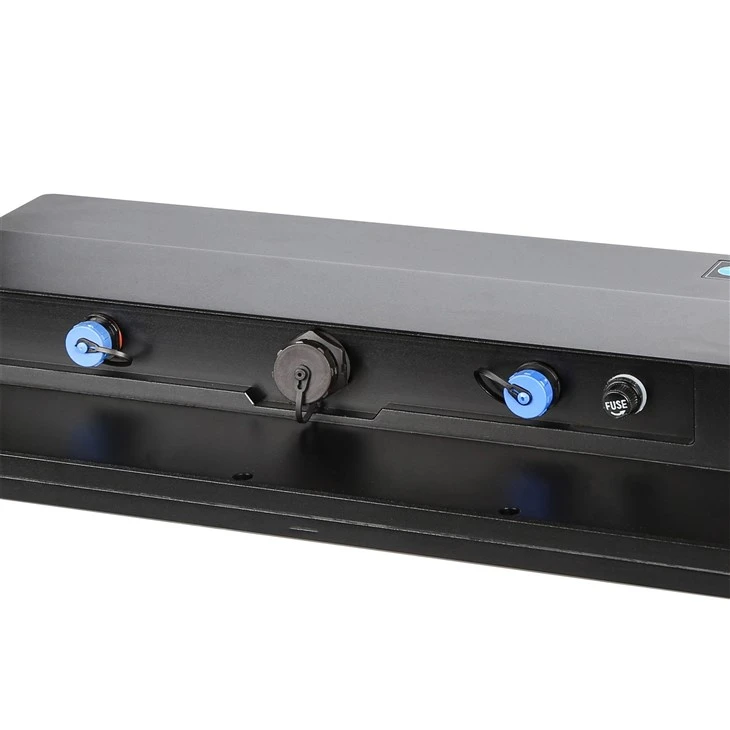

Signal Ports |
|
|
VGA |
1×IP67 VGA |
|
USB |
1xIP67 USB for touch |
|
HDMI |
1xIP67 HDMl |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -20 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 2pieces/carton |
|
Accessories |
IP67 Power adapter, ip67 *HDMI cable, IP67 USB touch cable, mountable stand for boat, optional |
|
Others |
|
|
Warranty |
1 year warranty |
