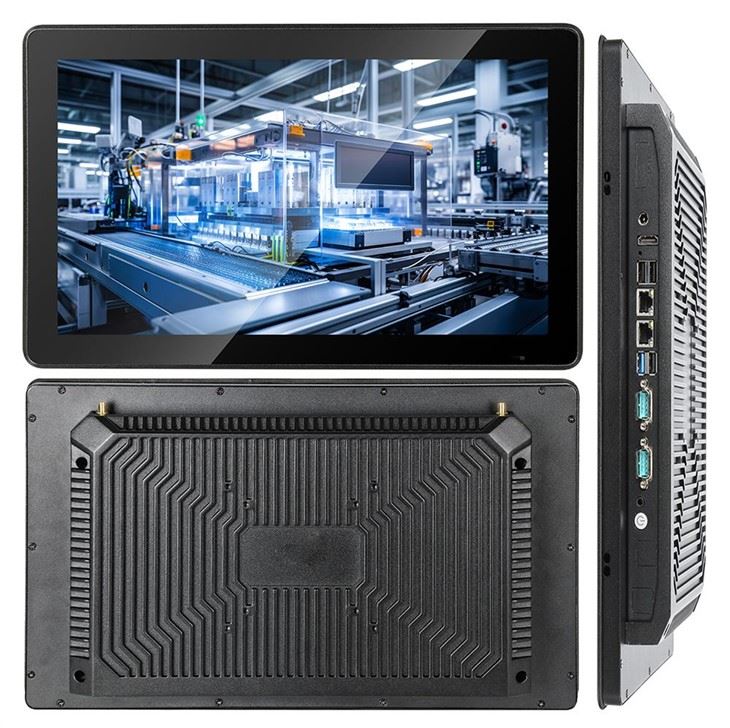

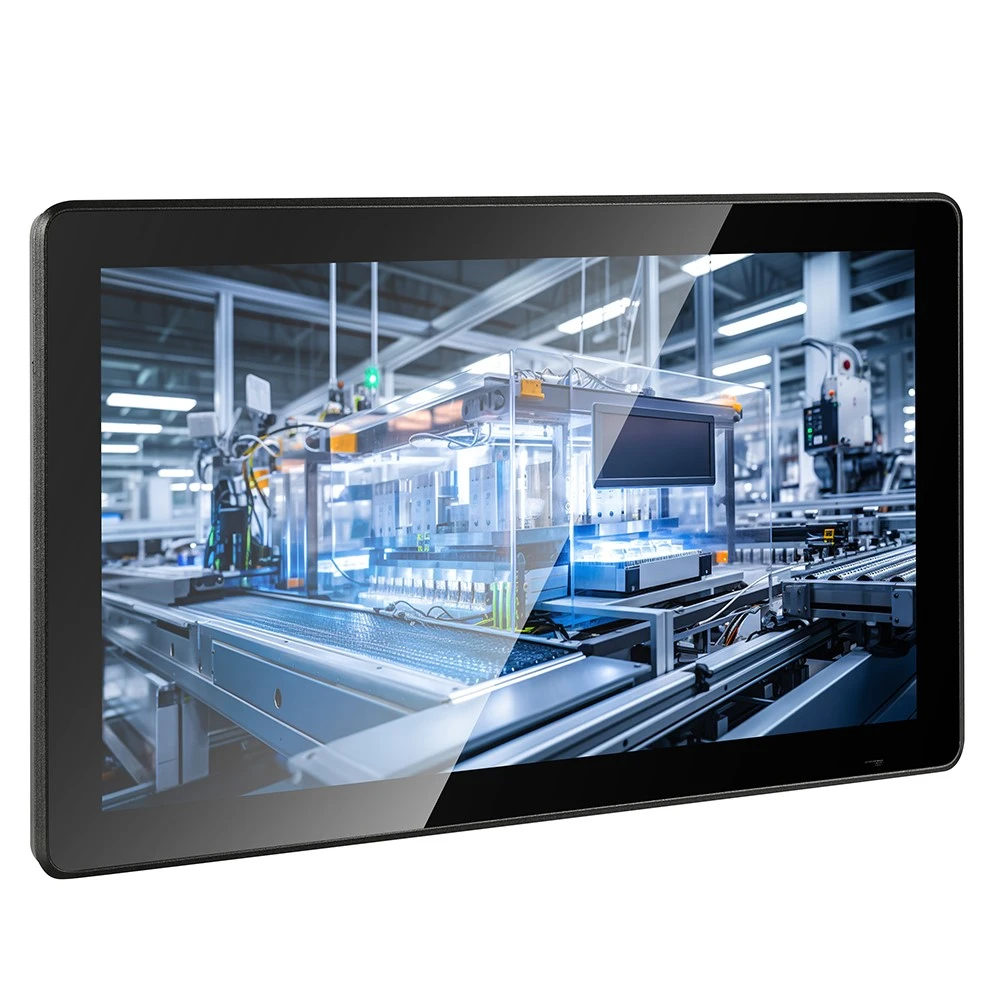

Fanless Industrial Panel PC

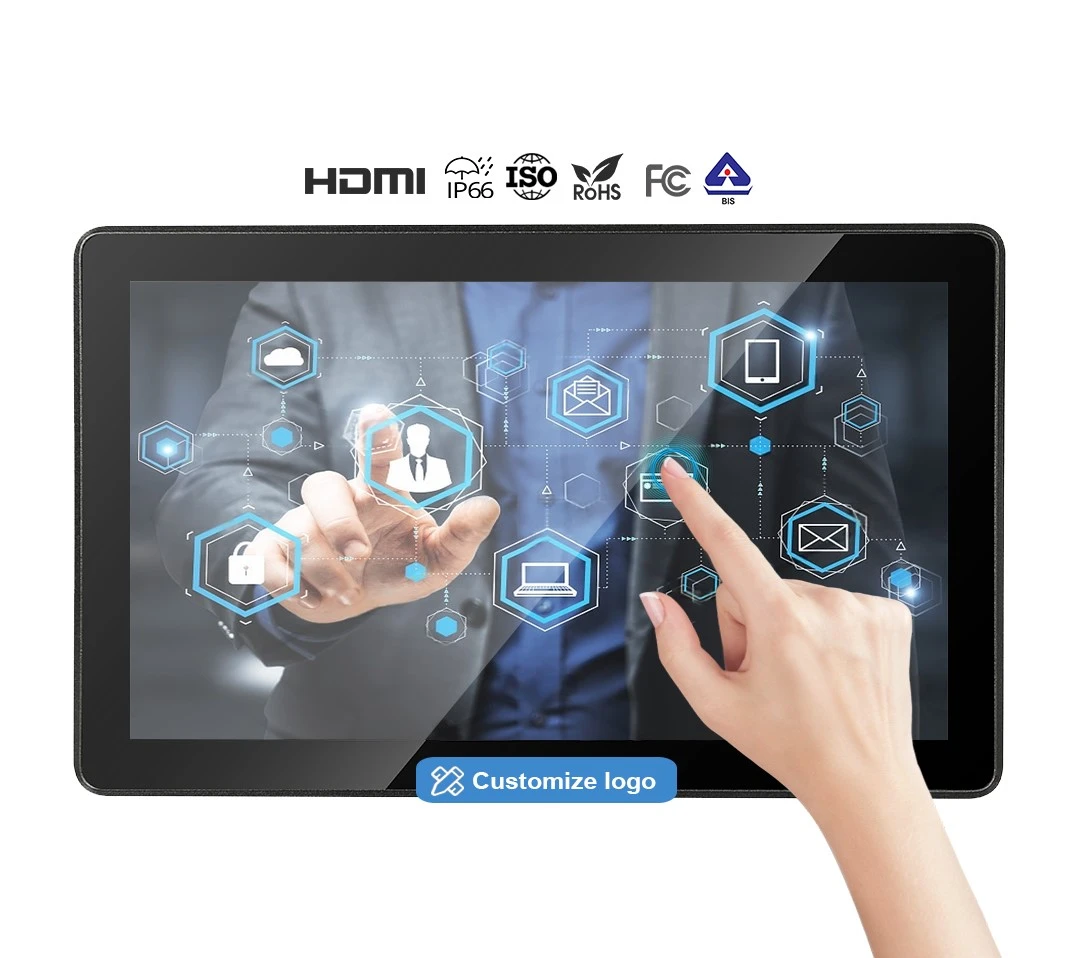

Fanless Industrial Panel PC use 10 ponts capactive touch lcd screen, it's EPC series, the certificates include HDMI, CCC,CE,FCC,ROHS,BIS,IP66.

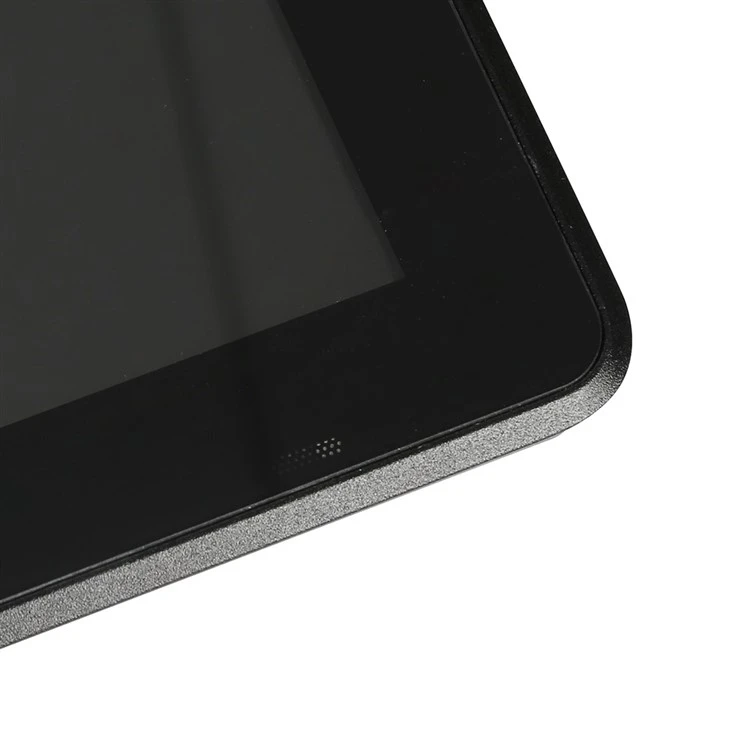

Narrow Bezel Embedded Frame
the frame of Fanless Industrial Panel PC is narrow bezel embedded, true flat screen, color can do black and sliver.

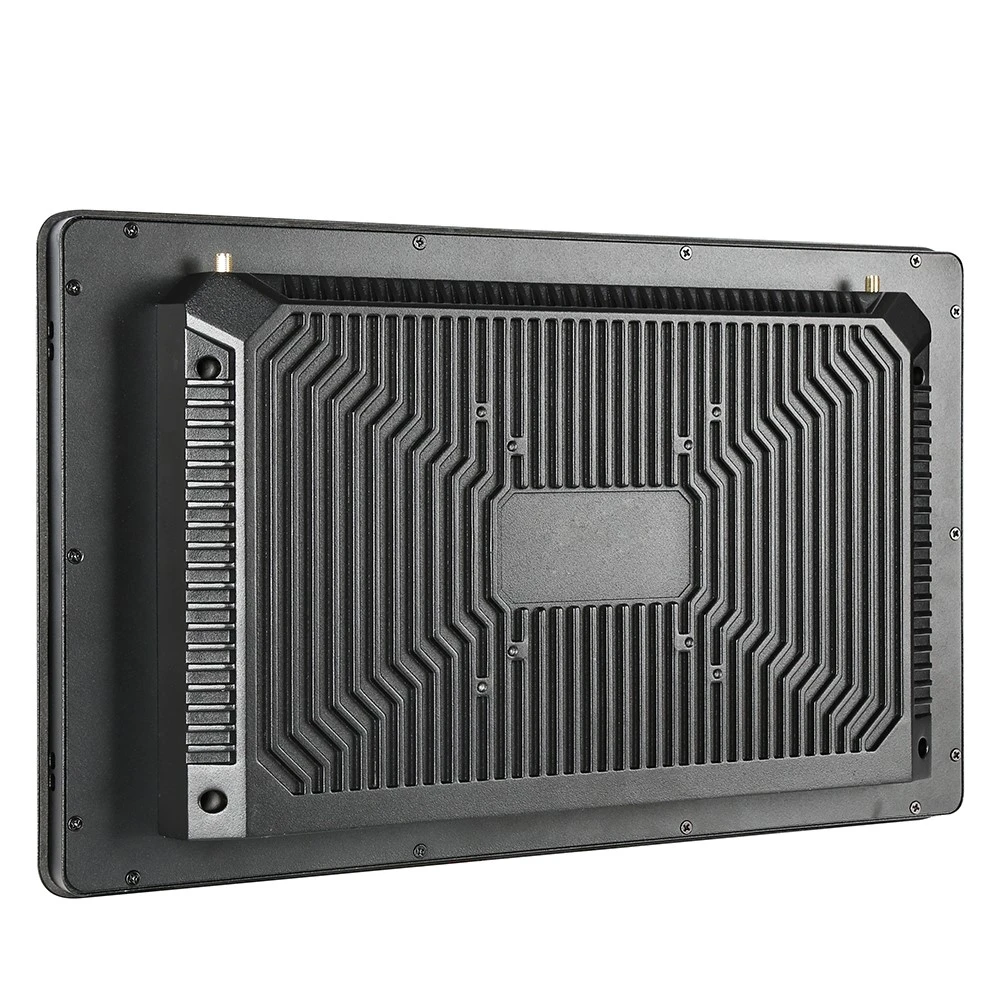

Die-cast Back Cover
Fanless Industrial Panel PC use Die-cast Back Cover, it's more like industry and upscale.

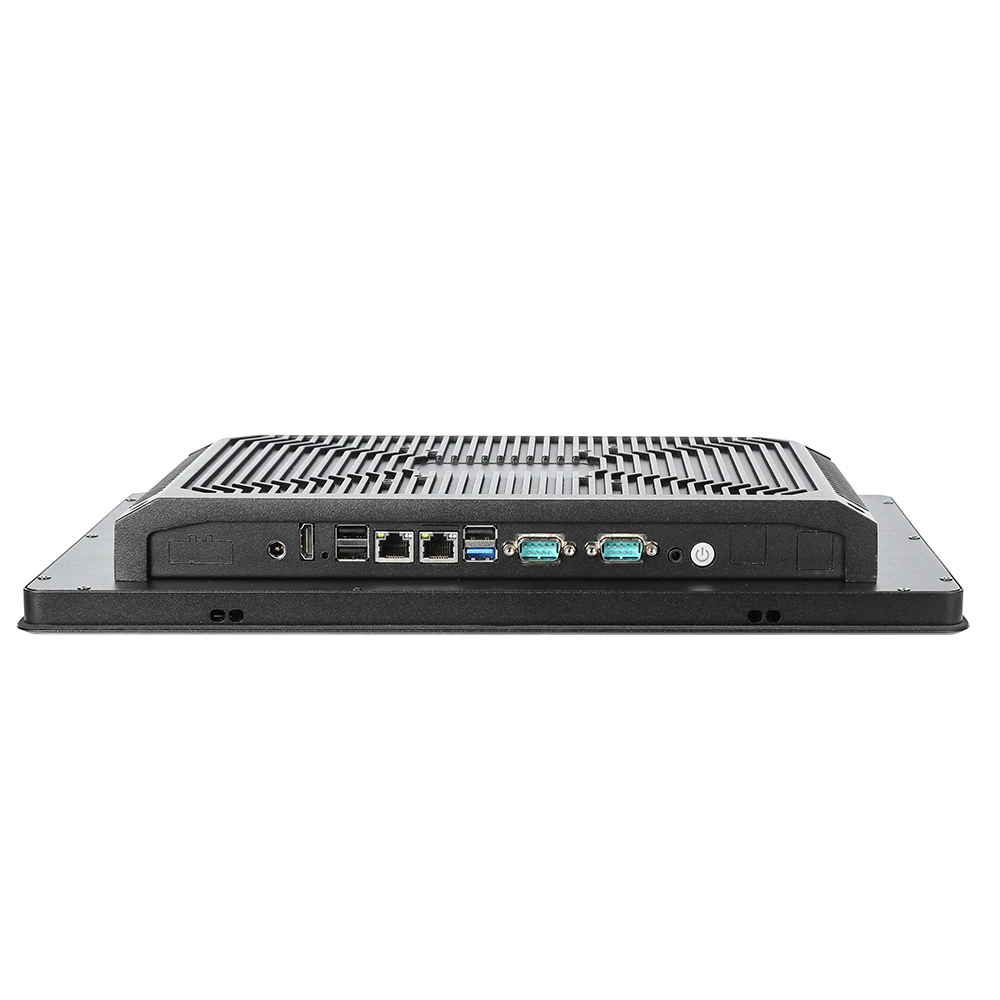

Interface
Fanless Industrial Panel PC No VGA, include 1xHDMI,2xLAN,4xUSB,1xAUDIO,2xCOM, 4-6xCOM is available, wide voltage DC9~36V is available.
|
LCD panel |
||||
| 10.4'' 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' Fanless Industrial Panel PC | ||||
|
PC |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional) |
|||
|
Memory |
8GB DDR4 |
|||
|
Hard Drive Capacity |
128G SSD |
|||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|
I/O Interface |
1xHDMI/2xLAN, 4x USB/1xAudio Out/1xPower DC/2xCOM/No VGA |
|||
|
Opetation System |
Preinstall test version Windows 7/10/11,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
10.4,12.1,13.3,15,15.6,17,18.5,19,21.5,27,32 Inch |
|||
|
Resolution |
1024*600,1280*800,1366*768,1930*1080,1280*1024,1440*900 | |||
|
Brightness (cd/m²) |
250~1000 cd/m2 |
|||
|
Response time |
15ms |
|||
|
Contrast ratio |
1000:1 |
|||
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|||
|
Touch panel |
||||
|
Touch Type |
10 points projective Capacitive touch optional |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V(DC9~36V optional) |
|||
|
Power consumption |
≤18W |
|||
|
Operating Environment |
||||
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna,Embedded screws |
|||
|
Other |
||||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
