industrial Panel Pc
We can provide complete solutions and customized product services in the field of industrial control.
Available sizes range from 7 inches to 21.5 inches
Industrial Grade Design
Seamless full-screen panel design, specially built for the industrial industry
Intuitive Multi-Touch Screen
Three touch modes are provided:
Single-point resistive touch, multi-point capacitive touch, non-contact

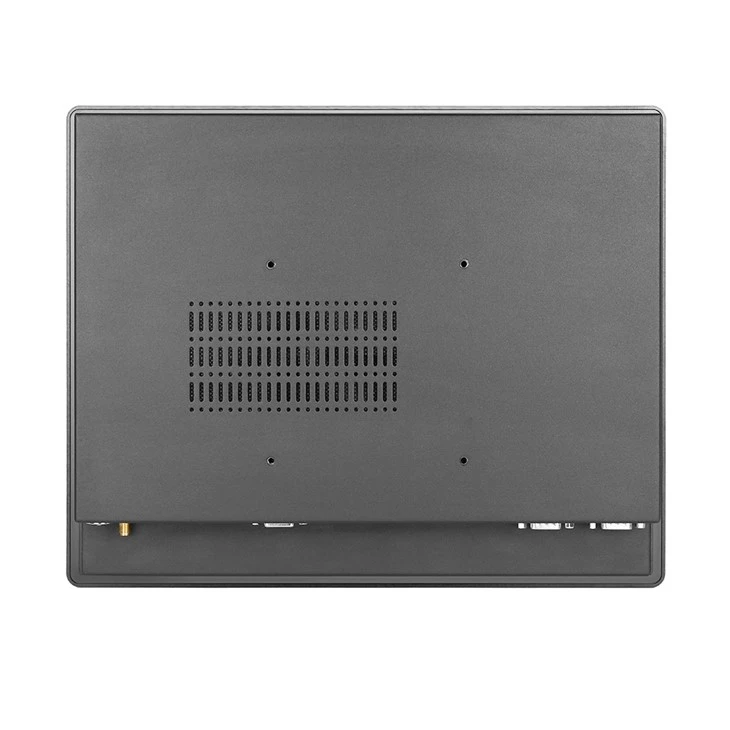

Aluminium fin designfor strong heat dissipation
The body is made of aluminum-magnesium alloy, and the back is designedwith large aluminum fins to ensure a good heat dissipation system.
Wide Working Temperature Range
Industrial-grade wide temperature design allows long-term operation in-20~60°C environments,regardless of harsh environments
|
LCD panel( IPS screen) |
|
|
CPU |
Intel® Celeron J1900 2.0GHz, Quad cores, fanless |
|
Intel® Core i3-3217U 1.8GHz dual cores, with fan |
|
|
Intel® Core i5-3317U 1.7GHz dual cores, with fan, i5-6th |
|
|
Memory |
8GB DDR3 ( Max. 32G) |
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB, 256GB |
|
HDD: 160GB,320GB,500GB,1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1×Realtek RTL 8111F Gigabit Ethernet controller |
|
Wifi |
Optional |
|
4G module |
Optional |
|

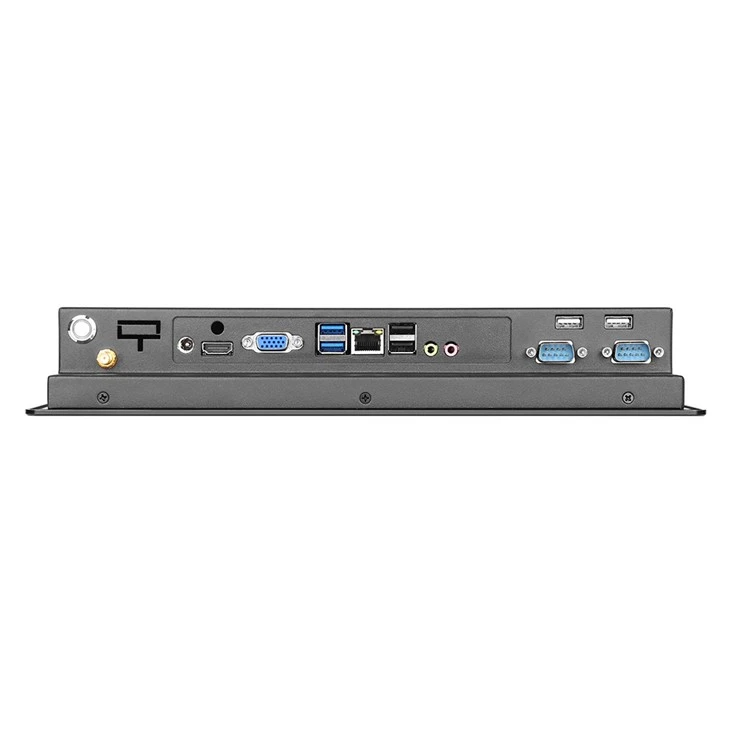

I/O Interface |
2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC |
|
Opetation System |
Windows 7/8/10/Linux |
|
LCD panel |
|
|
Panel size |
7-21.5inch |
|
Resolution |
1280x1024,1920X1080 |
|
Brightness (cd/m²) |
350 cd/m² or custom |
|
Response time |
15ms |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
75-85% |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V,9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature range |
operating: -25 to 75°C, storage :-30 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Accessories |
Power adapter, wall mounting bracket |
|
Other |
|
|
Mounting (options) |
1) Wall brackets for wall-mounting, VESA 100×100mm |
|
2) Metal desl stander to support the PC |
|
|
3) Open frame mount kits( left and right side) to hold the PC |
|
|
4) Embedded installation, 1 sets screws provided |
|
|
Certification |
CE, FCC |
|
Warranty |
1 year warranty |
