10-finger-multi touch
The projected 10-point capacitive touch panel is
accurate and responsive.
WIDELY OPERATING TEMPERATURE
Can work in the environmentof -20° C to 60C degrees Celsius
IP65 protection rating.
It can effectively prevent dust and water stains from entering the main unit, extend its service life and improve the stability of machine operation.
Quick response"Response,Ten o 'clock Touch control
Pure screen capacitive touch, high resolution, sensitive touch control, no delay, no blind spots, high stability
Quick response"Response,Ten o 'clock Touch control
|
LCD panel( IPS screen) |
|
|
CPU |
Intel® Celeron J1900 2.0GHz, Quad cores, fanless |
|
Intel® Core i3-3217U 1.8GHz dual cores, with fan |
|
|
Intel® Core i5-3317U 1.7GHz dual cores, with fan, i5-6th |
|
|
Memory |
8GB DDR3 ( Max. 32G) |
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB, 256GB |
|
HDD: 160GB,320GB,500GB,1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1×Realtek RTL 8111F Gigabit Ethernet controller |
|
Wifi |
Optional |
|
4G module |
Optional |
|

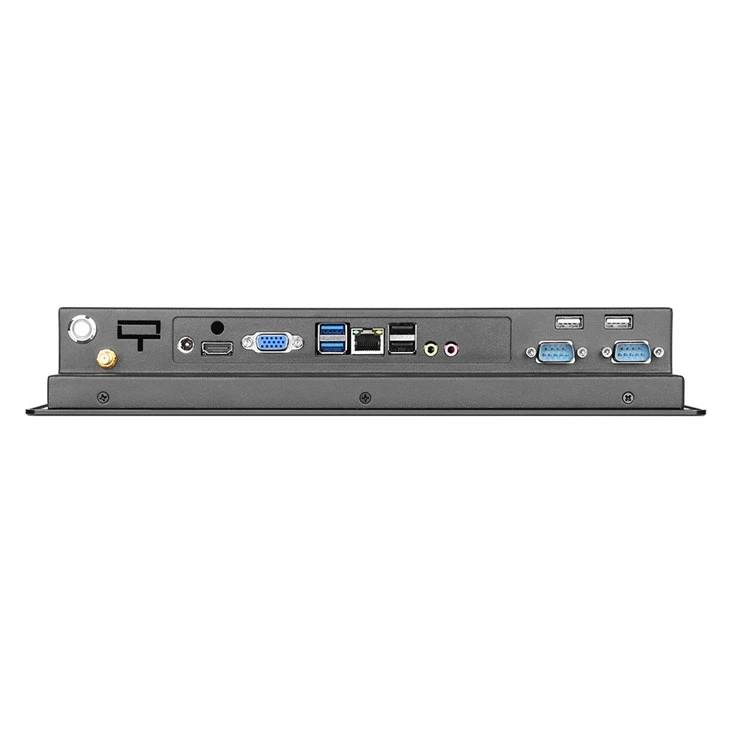

I/O Interface |
2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC |
|
Opetation System |
Windows 7/8/10/Linux |
|
LCD panel |
|
|
Panel size |
7-21.5inch |
|
Resolution |
1280x1024,1920X1080 |
|
Brightness (cd/m²) |
350 cd/m² or custom |
|
Response time |
15ms |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
75-85% |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V,9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature range |
operating: -25 to 75°C, storage :-30 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Accessories |
Power adapter, wall mounting bracket |
|
Other |
|
|
Mounting (options) |
1) Wall brackets for wall-mounting, VESA 100×100mm |
|
2) Metal desl stander to support the PC |
|
|
3) Open frame mount kits( left and right side) to hold the PC |
|
|
4) Embedded installation, 1 sets screws provided |
|
|
Certification |
CE, FCC |
|
Warranty |
1 year warranty |
