Industrial Pc Windows 10

I/O Interface:2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC
Opetation System:Windows 7/8/10/Linux
Resolution:1280x1024,1920X1080 or other
Brightness (cd/m²):350 cd/m²
Contrast ratio:1000:1
View angle:85°/85°/89°/89° (R/L/U/D)
Touchscreen Type:10 points Projected capacitive touch

Send Inquiry

Description

Technical Parameters

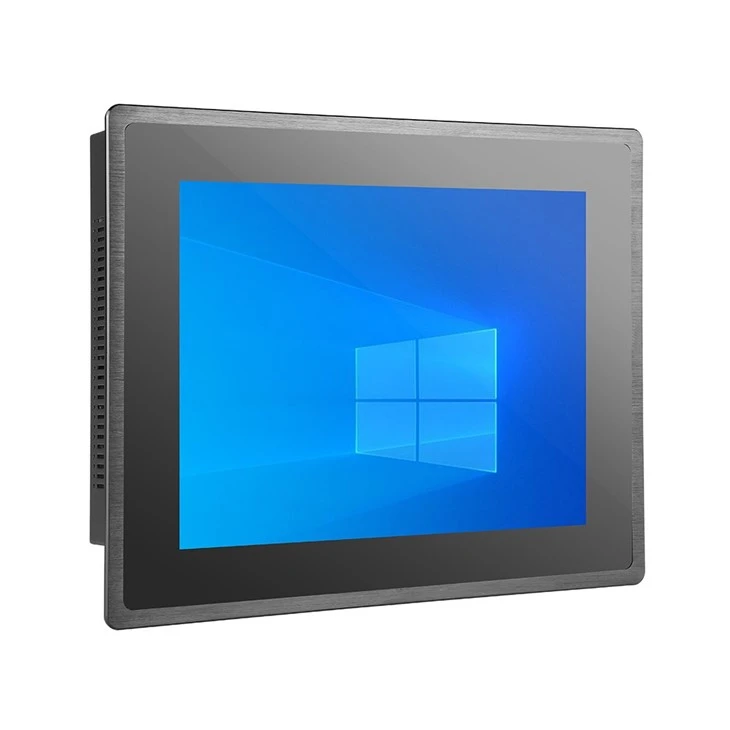

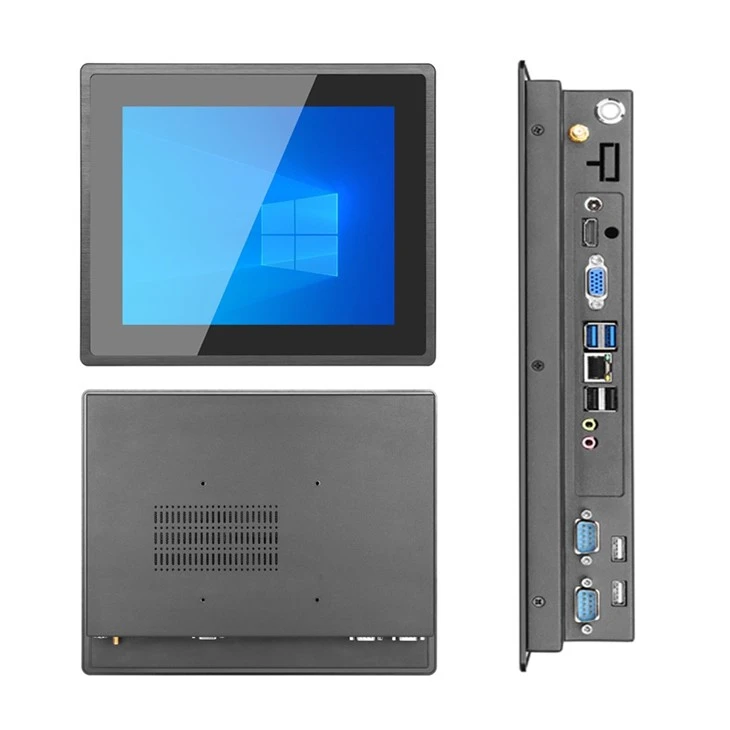

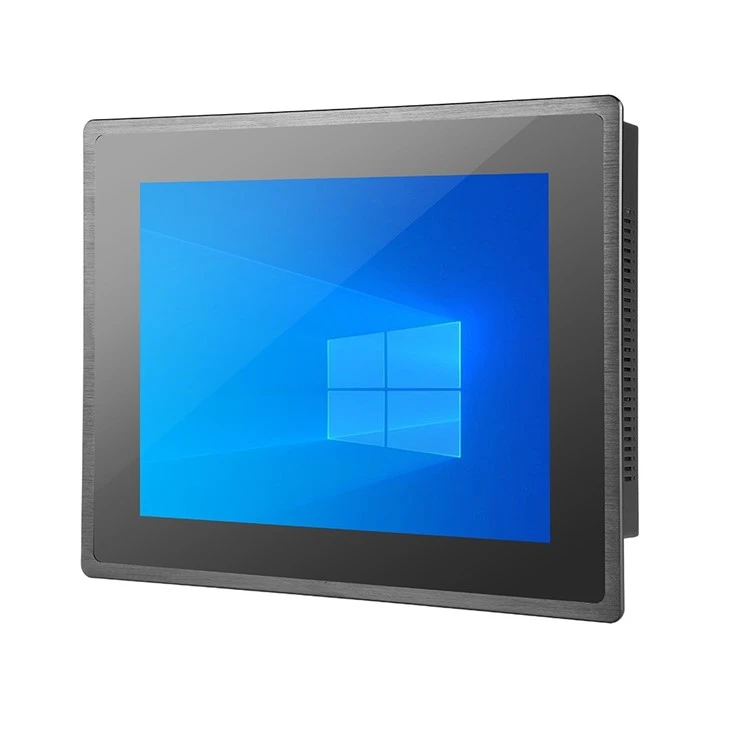

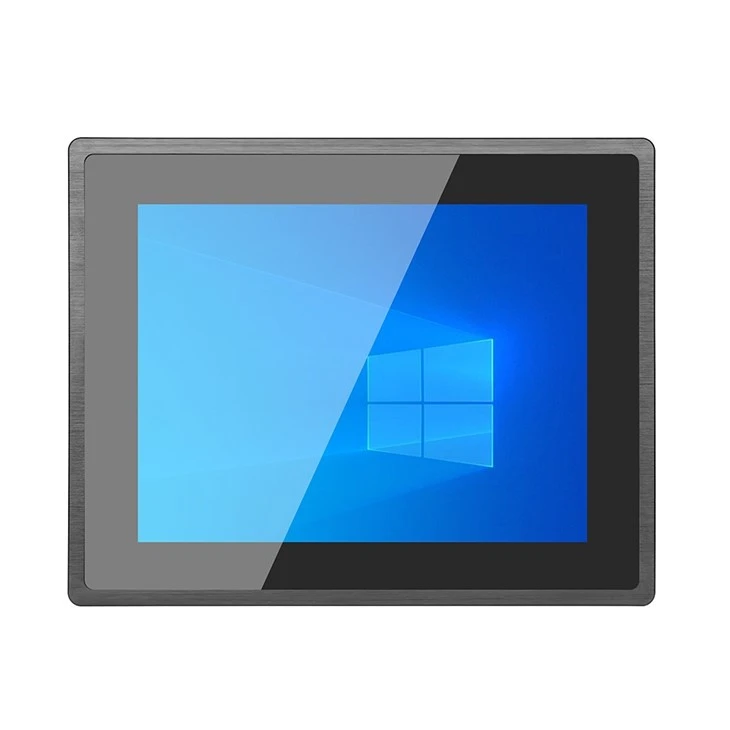

7-21.5inch Industrial Panel PC Touchscreen

Features:

'lt is awesome to work with Creative. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.

1.CPU:J1900/J4125/j6412/i3/i5/i7

2.Memory: 4GB, up to 16GB

3.Storage: 64/128/256GB SSD

4.Size:7-21.5inch

5.Resolution:1280x1024,1920X1080,1024*768

6.Touchtype:10 points capacitive touch screen

7.Power: DC 12/24/36V input

Hot Tags: industrial pc windows 10, China industrial pc windows 10 manufacturers, suppliers, factory, Fanless Industrial Touch Panel PC, industrial panel mount pc for farmers markets, industrial panel mount pc for fishing industry, industrial panel mount pc for offshore oil and gas, panel mount pc for retail stores, panel mounted industrial computer for yacht manufacturing

LCD panel( IPS screen)
CPU	Intel® Celeron J1900 2.0GHz, Quad cores, fanless
	Intel® Core i3-3217U 1.8GHz dual cores, with fan
	Intel® Core i5-3317U 1.7GHz dual cores, with fan, i5-6th
Memory	8GB DDR3 ( Max. 32G)
Hard Drive Optional	SSD: 32GB,64GB,128GB, 256GB
Hard Drive Optional	HDD: 160GB,320GB,500GB,1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1×Realtek RTL 8111F Gigabit Ethernet controller
Wifi	Optional
4G module	Optional

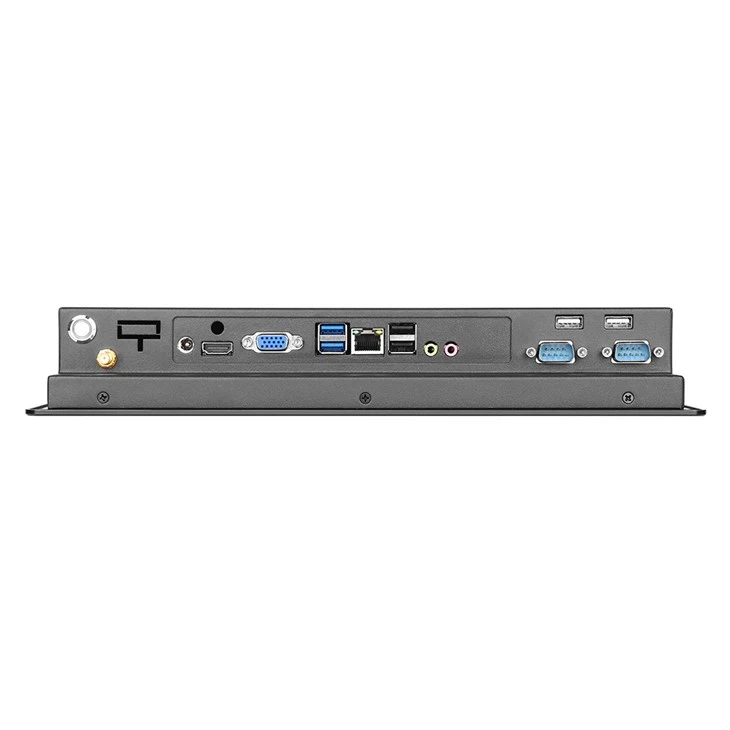

I/O Interface	2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC
Opetation System	Windows 7/8/10/Linux
LCD panel
Panel size	7-21.5inch
Resolution	1280x1024,1920X1080
Brightness (cd/m²)	350 cd/m² or custom
Response time	15ms
Contrast ratio	1000:1
View angle	85°/85°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type	10 points Projected capacitive touch
Touch Interface	USB
Touch response time	<8ms
Luminousness	75-85%
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V,9-36V Optional
Power consumption	≤30W
Operating Environment
Temperature range	operating: -25 to 75°C, storage :-30 to 80°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories	Power adapter, wall mounting bracket
Other

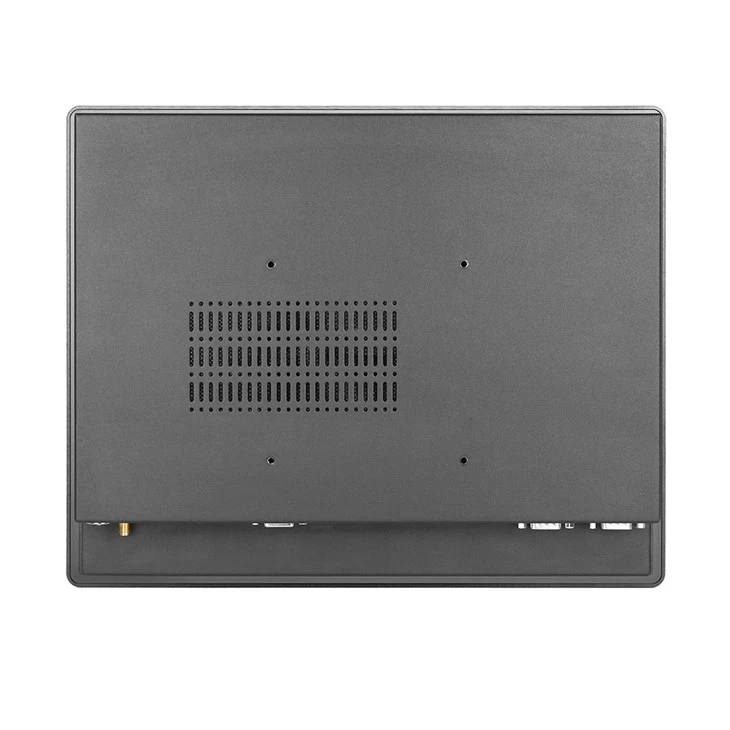

Mounting (options)	1) Wall brackets for wall-mounting, VESA 100×100mm
	2) Metal desl stander to support the PC
	3) Open frame mount kits( left and right side) to hold the PC
	4) Embedded installation, 1 sets screws provided
Certification	CE, FCC
Warranty	1 year warranty
