Product Introduction

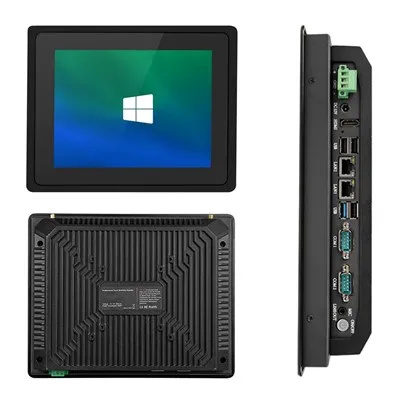

Fanless Industrial Touch Panel PC all in one desktop touch screen industrial touchscreen display
Capacitive Touch Industrial Grade A+Screen True Flat Design
10 Points Capacitive Touch,6.5ms Quick Response,IP65/IP66 Waterproof,16.7M colors,Wide Viewing Angle
Support 24 hours *7 days uninterrupted operation
Size:10.4"/12.1"/13.3"/15"/15.6"/17"/18.5"/19"/21.5"/23.6"Available
■ IP65 front panel waterproof and dustproof
■ DC12V input, 9-36V Optional
■ I/O Interfaces:1xVGA/HDMI/LAN/EAR/MIC/DC POWER, 4xUSB,2XRS232, 2LAN/6COM Optional
■ Installation:Embedded/Wall mounted/Desktop VESA:100X100mm
■ OS:Windows 7/8/10/Linux/Ubuntu Android Optional
About
The industrial panel pc with 10 points projected capacitive touchscreen,Normal brightness and sunlight readable high brightness is ok, Industrial all in one pc adopts an industrial-grade design and IP65-rated waterproof and dustproof front bezel.Fanless design with efficient heat dissipation back cover.
Efficient heatdissipation back cover
Fully enclosed aluminum alloy back cover,efficient heat dissipation
• 3mm ultra-thin front panel thickness, easy to maintain, and suitable for embedding.
• IP65 waterproof and dust-proof for the front panel.
• EMC anti-electromagnetic interference.
• Working temp for industrial panel PC: -20°C ~ +80°C.
• Celeron Quad-core J1900/J4125/J6412 CPU, fast-running.
• Aluminum alloy heat-dissipating material, low power consumption, energy-saving.
• Support 7*24 hours long-time running under all weather conditions.
High Temperature Test Screen
Controllable high temp test -10°C~60°CWorking stable even in harsh environments
The Ip65 industrial touch panel pc fit most manufacturing scenario with all in one design, industrial grade motherboard and fanless heating-dissipation constructure to meet extreme temperature, vibration and shock tolerance.
Waterproof Front Shell
The pure flat panel lP65/IP66 protection grade design effectivelypreventsdust, water droplets, etc.
There is a variety of I/O interfaces including USB, RS-232/485 port, Dual Gigabit Ethernet ports , audio (Mic-in/Line-out), HDMI,etc.Also supports mini-pcie expansion, and comes with built-in speakers for use in multimedia kiosk applications and offers an optional WIFI and 3G/4G module.
Installation Method
The Aluminum Alloy Industrial touch computer have different installation way, Embedde/Panel Mount Install, Wall Mount Install with 75*75/100*100mm vesa holes.
1.1xDevice
2.1xWall Mount Bracket(Optional)
3,1xPower Supply
4.1xPower Adapter
5.4xEmbedded Screws
6.1xWiFi Antenna
Capacitive touch and Non touch Available
1.12.1 inch industrial touchscreen monitor with PCAP Touch
2. Support single touch and multi touch,non touch Available
3. Touch with gloves is available
4. Touch response time <8ms
MAIN CATEGORIES
Bestview is a national high technology company with professional R&D ,produceand sell industrial touch monitor, All in one PC and Mini Pc. With the powerful technologyadvantage and rigorous quality control process, Bestview already got certifications of CEKCC, FCC,ROHS,IP66,HDMl and iso9001. Bestview has won the favorite of many customers
from abroad.
why choose us
15+ Years Touch Solution Provider
MOQ
Low MOQ of 1pcs for customization
Productionline capacity
in-house Touch Monitor/Touch Panel PC Production3000㎡factory,100 workers,7semi-automaticproduction lines,annual delivery quantity 120K
Product Testing
Leading service robotics brand with products sold in more than
R&D
20 R&D and after-sales engineers to provideprofessional technical support
Customer Feedback
0%lot relect rate,99%customer satisfaction85% repeated order
Price Advantage
Iuropean /Korea/Taiwan equivalent qualitywith lower price
Application scenario
Smart Medical terminal
Medical infrastructure and IT infrastructure through information technology Integration.equipped with smart medical Yang Fanset sail.
Smart Factory MES system
In smart factories, FWC products are human-machine in combination with MES system.nteractive,Production Kanban provideshardware technology landing office to help the industry Optimize Operations.
iOT Internet of Things
With warehouse management system,throughRFlD tag technology, cooperate Vehicle.mounted terminal and PDA terminal are theentire intelligent warehousing and logisticssystem.Provide reliable quarantee
Automatic control
With the upper software to achieve automaticcontrol
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bagand foam wrapping
2. Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPs,FedEx,TNT,Air freight,LCL/FCL Sea freight
Company Introduction
Bestview is a national high technology company, professional R&D, produce and sell bro adcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE,KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.Bestview main partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has alreadyapplied every photography field in the world, industry generation four, rail way traffic, industry application etc. The market has spread Europe, America, Southeast Asia and other more than 60 countries.
15+ Years Touch Solution Provider
3000+ Square Meter Workshop
Serving 50+ International Markets
PROFESSIONAL R&D TEAM
Bestview alreadygot certifications of CE, KCC, FCC,ROHS,IP66,HDMl and iso9001. Bestview has won thefavorite of many customers from abroad.
3000+
Square Meter Workshop
20000+
Units sold each year
40+
certification
50+
Countries
Certifications
Create a comprehensive solution for efficient human theft manag
HDMI
CE
ROHS
IP66
IP65
Question and Answer
Common Problem
Are you a trading company or factory?
We are a professional industrial Panel PC/monitor/Android touch panel PC manufacturer, Established more than 15 years
What's Minimum Order Quantity?
1 pcs sample. welcome to test our sample first and then place bulk order.
How long is your Lead Time ?
Different quantity with different production time.regular product with 7-10 days, customized with 15-25 days around.
Do you support OEM / ODM?
Yes, pls let us know your detailed requirements then we can provide you the solution.
ry dard righteous
First-class professional team for you to recommend products more in line with your needs. Perfect after-sale services exempt your worries.
Our address
No.5F, Building 24, Longbi Industry City, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China
Phone Number
+86-755-28447130
+8613632535154
sales@bestview.cc
Product Specification
|
Bestview 10.4 inch IP65 Aluminum Alloy 3mm Bezel Industrial Panel PC Embedded Install All in one Touch PC |
|||||||||||
|
Motherboard |
Configuration |
Intel Celeron J1900/J4125/J6412 Quad core |
|||||||||
|
Upgrade 1 |
Intel Core i3-3217U, i3-6100U, i3-7100U, i3-8130U, i3-10110U, i3-1125G4 |
||||||||||
|
Upgrade 2 |
Intel Core i5-3317U, i5-6200U, i5-7200U, i5-8265U, i5-10210U, i5-1135G7 |
||||||||||
|
Upgrade 3 |
Intel Core i7-3337U, i7-6500U, i7-7500U, i7-8550U, i7-10510U, i7-1165G7 |
||||||||||
|
Upgrade 4 |
H310, H610 Motherbaord with i3 i5 i7 CPU up to 12th generation |
||||||||||
|
Storage |
Memory |
4GB DDR3 8GB 16GB Optional |
|||||||||
|
SSD |
64GB, 128GB,256GB,512GB,1TB Optional |
||||||||||
|
HDD |
500GB,1TB,2TB |
||||||||||
|
Interface |
WiFi, 3/4G module |
802.11b/g/n (optional), Support 3g/4g (optional) |
|||||||||
|
HDMI |
1*HDMI output |
||||||||||
|
USB |
2*USB 3.0,2*USB2.0 |
||||||||||
|
Network |
2*RJ45 with 1000 Base-T |
||||||||||
|
COM |
2* COM(RS232), RS485/RS422 Optional,6COM Port Optional |
||||||||||
|
Power supply |
1*DC12V Standard, 9-36V Optional(lock phoenix terminal) |
||||||||||
|
Audio output |
1*3.5mm audio |
||||||||||
|
Other |
8*GPIO (optional) |
||||||||||
|
Display |
Size(inch) |
10.4inch |
12.1inch |
13.3inch |
15inch |
15.6inch |
17 inch |
18.5 inch |
19inch |
21.5 inch |
23.6 inch |
|
Screen type |
LCD screen with LED backlight |
||||||||||
|
Resolution |
1024x768 |
1024x768 |
1920x1080 |
1024x768 |
1920x1080 |
1280x1024 |
1920x1080 |
1280x1024 1440x900 |
1920x1080 |
1920x1080 |
|
|
Contrast ratio |
700:1 |
800:1 |
1000:1 |
800:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
|
|
Brightness |
300cd/㎡ |
350cd/㎡ |
250cd/㎡ |
350cd/㎡ |
250cd/㎡ |
300cd/㎡ |
250cd/㎡ |
250cd/㎡ |
250cd/㎡ |
300cd/㎡ |
|
|
Screen ratio |
4:3 |
4:3 |
16:9 |
4:3 |
16:9 |
5:4 |
16:9 |
5:4 16:10 |
16:9 |
16:9 |
|
|
Structure |
Front and back cover |
Aluminum front case, metal back case |
|||||||||
|
Heat dissipation |
Fanless, aluminum fin heat dissipation |
||||||||||
|
Touch screen |
Type |
10 points Projected capacitive touch |
|||||||||
|
Response time |
＜8ms |
||||||||||
|
Accuracy |
＜2.5mm |
||||||||||
|
Transparency |
≥90% |
||||||||||
|
Protection |
The surface is coated with 1:1 PVC protective film |
||||||||||
|
Others |
Working environment |
-20℃～ 70℃; Humidity: 10%～ 90% |
|||||||||
|
Storage environment |
Temperature: -40℃～80℃; Humidity: 10%～90% |
||||||||||
|
Installation ways |
Embedded/Panel Mount, Wall Mount(VESA75*75mm/100*100mm) |
||||||||||
|
Power consumption |
≤60W |
||||||||||
|
Warranty |
1 year warranty |
||||||||||
|
Accessories |
Wifi |
Wifi antenna |
|||||||||
|
Bracket |
Wall mounted bracket, embedded bracket, desktop bracket(optional) |
||||||||||
|
Adapter |
Power adapter |
||||||||||
