LED Screen
Using LED backlight technology, make sure colourful pictures, highbrightness and good contrast, wide angle viewing, longer life time
Sensitive touch screen, Quick response
Accurate capacitive screen Multi-touch.10 point touch quick response
Waterproof Front Shell
True flat panel lP66 protection grade design effectively prevent dust, water droplets, etc
Fearless of High & Low Temperatures
The operating temperature range of the entire machine is as high as -10°C to 60° C, and it supports customized ultra-wide temperature requirements
Efficient heat dissipation back cover
ultra-thin rear cover of the device,efficientheat dissipation.
10 Points PCAP Touch & Non Touch Available
10 Points PCAP Touch & Non Touch Available
Product interface Diagram
Multiple interfaces to meet your various needs
CUSTOMIZABLE SCREEN PARAMETERS
CUSTOMIZABLE SCREEN PARAMETERS
10 Tests Before Delivery ,Ensure 100% pass rate
|

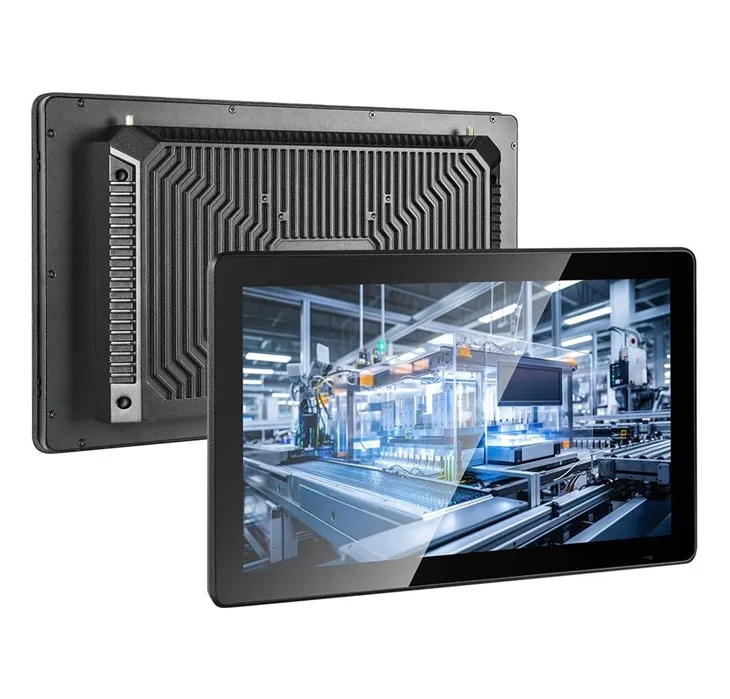

Bestview New Narrow Edge Promotion PC India BIS CE Industrial Grade Cost-Effective All in One Capacitive Touch Panel PC |
||
|
PC |
||
|
CPU |
Intel® Core i5 |
|
|
Memory |
8G DDR4 |
|
|
Hard Drive Capacity |
128G SSD |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|
|
Wireless Network |
WIFI optional |
|
|
I/O Interface |
2×USB2.0/USB3.0/COM,1×Lan(RJ45),1×HDMI/MIC/EAR/POWER DC |
|
|
Opetation System |
Preinstall test version Win7/8/10/11,Linux |
|
|
LCD panel |
||
|
Panel size |
15.6" 21.5'' 18.5'' 13.3'' 10.4'' 12.1'' 15'' 17'' 19'' 23.8'' 27'' |
|
|
Resolution |
1920*1080, 1024*768,1280*1024 |
|
|
Brightness (cd/m²) |
250 cd/m2(500~1000 cd/m2) |
|
|
Response time |
15ms |
|
|
Contrast ratio |
1000:1 |
|
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
|
Touch panel |
||
|
Touch screen Type |
capacitive touch |
|
|
Touch Interface |
USB |
|
|
Touch response time |
<8ms |
|
|
Luminousness |
75-85% |
|
|
Power Supply |
||
|
External Power Supply |
AC 100 - 240V |
|
|
Working voltage |
DC 12V(DC9~36V optional) |
|
|
Power consumption |
≤18W |
|
|
Operating Environment |
||
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
Packing Details |
||
|
Accessories |
Power adapter, wifi antenna,embedded screws |
|
|
Other |
||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|
|
2) provide stable metal holder to support the monitor |
||
|
Certification |
CE, FCC, RoHS, BIS |
|
|
Warranty |
1 year warranty(2~3 years optional) |
|
