Rugged Touch Screen Computer

Warranty：1 year warranty Certification：CE, FCC，ROHS，BIS
Mounting (options):1) provide wall brackets for wall-mounting, VESA 100×100mm,2) provide Floor standing to support the PC
Temperature range:Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Touch Type:Optional: capacitive/resistive/non-touch
Brightness (cd/m²:Light sensor for auto dimming

Send Inquiry

Description

Technical Parameters

7-55 Inch Project Capacitive All-in-one Touch Computer

Capacitive All-in-one touch computer. Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof. Highlight display with anti-vandal tempered cover glass meet UL60950. Suitable for outdoor application, which is designed for Kiosk, digital signage, ATM, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user.

High brightness LED panel

Efficient and stable intel computer system

Features

Zero-bezel flat touch computer, slim housing

10point multitouch project capacitive touch technology

Aluminum alloy front bezel, meet IP65 waterproof

Standard VESA mounting and four side bracket options

Hot Tags: rugged touch screen computer, China rugged touch screen computer manufacturers, suppliers, factory, All in One Panel PC, Industrial All in One PC Touch Screen, Industrial Flat Panel PC, Industrial Touch Panel PC, Industrial Wall Mount Panel PC, Touch PC

PC Parameter
CPU	Inter Celeron J1900, quad core, 2.0Ghz, fanless(Core i3, Core i5 Core i7 optional)
	RK3288/RK3399/RK3566/RK3568
Memory	4GB DDR3, ( Max. 16G)
Hard Drive Optional	SSD: 64GB,128GB,256GB,512GB,1TB
	HDD: 500GB,1TB
Network	1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI optional

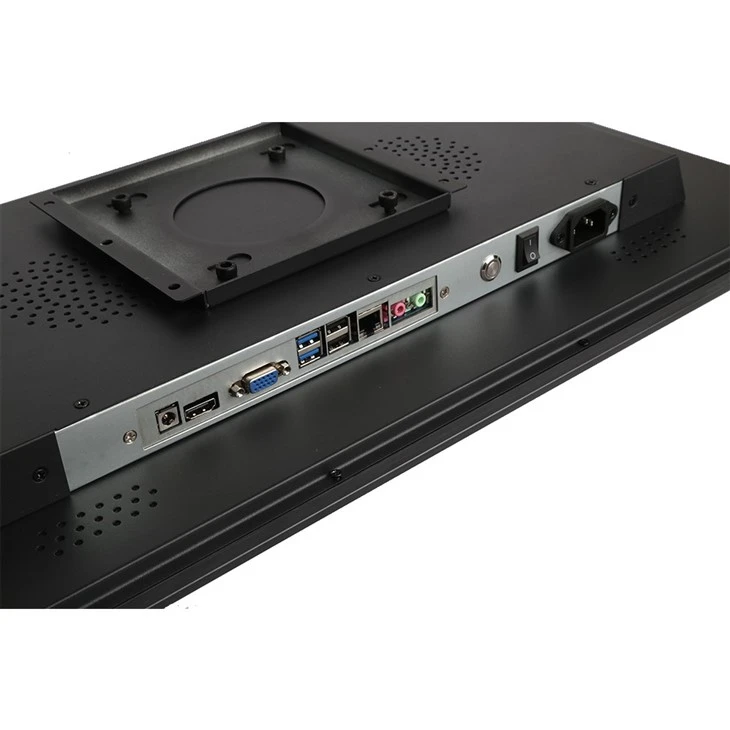

I/O Interface	1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC
Opetation System	Preinstall test version Windows 7/8/10,Linux
Image Format	Support BMP,JPEG,PNG,GIF
LCD panel
Panel size	7-55 Inch
Resolution	1920X1080
Brightness (cd/m²)	Light sensor for auto dimming
Contrast ratio	700:1
Touch panel
Touch Type	Optional: capacitive/resistive/non-touch
Touch Interface	USB
Response time	<8ms
Luminousness	75-85%
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤60W
Operating Environment
Temperature range	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories	Power adapter, Wifi antenna
Other

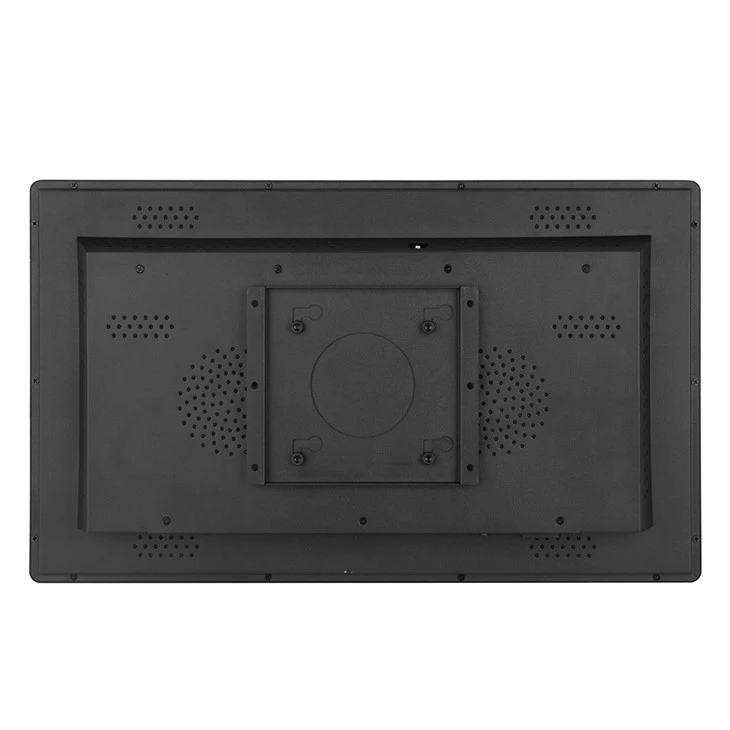

Mounting (options)	1) provide wall brackets for wall-mounting, VESA 100×100mm
	2) provide Floor standing to support the PC
Certification	CE, FCC,ROHS
Warranty	^{1 year warranty}
Key words	industrial tablet pc,industrial touch panel pc,industrial all in one panel pc
