Digital Factory Industrial touch all-in-one machine
Dustproof and waterproof /resistant tohigh and low temperatures
Plain front panel dustproof and waterproof
Tempered glass panel, lP65 waterproof and dustproof.Effectively preventing liquid splashing, dust, and food from entering the residual material inside the machine.

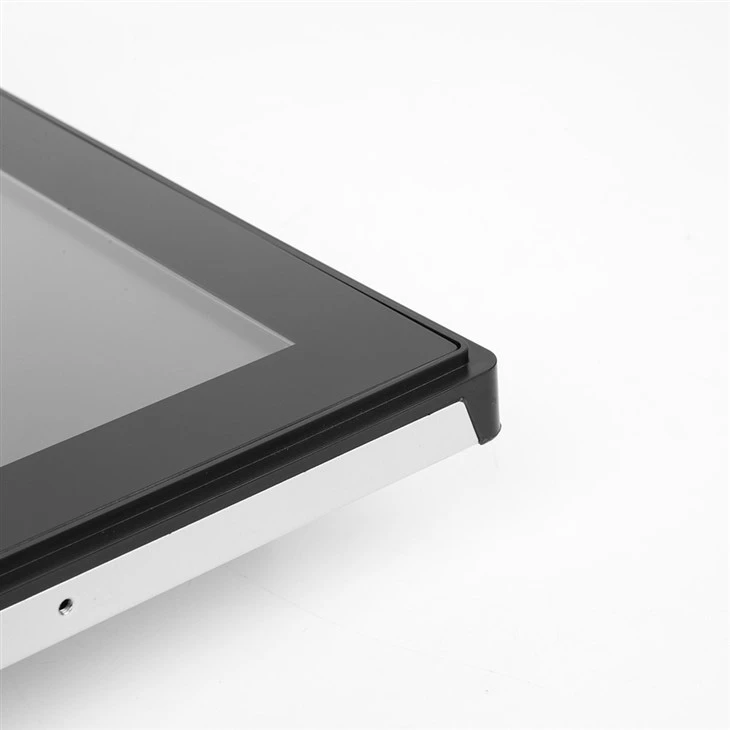

3mm aluminum alloy frameMore suitable installation
Suitable for embedded installation in various industrial places which is simple and beautiful, and saves space
Suitable for various scenarios Wide application range
Widely used in industries such as industry, healthcare, supermarkets self-service, express delivery, security, etc
Six AdvantagesMeet multiple environments
High indicators meet all mandatory requirements

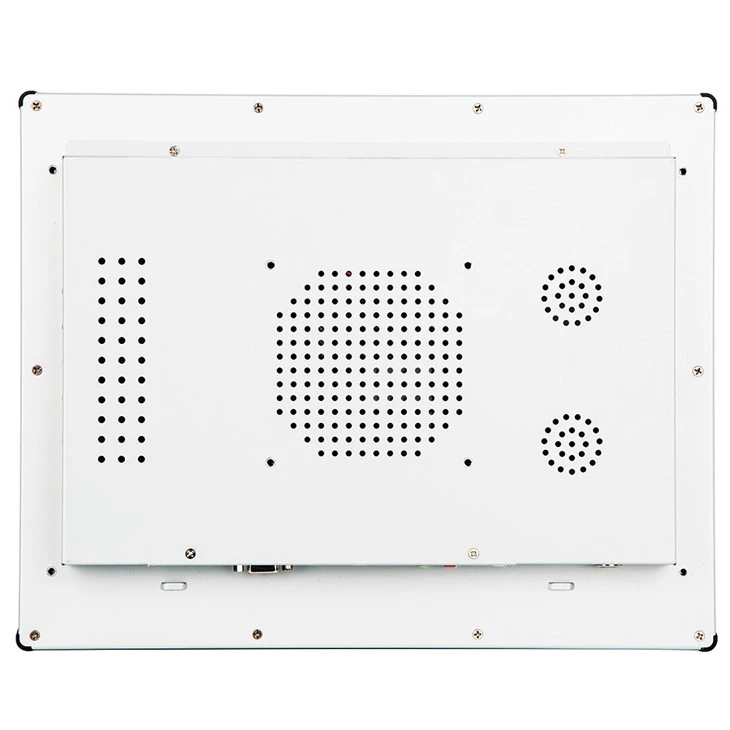

Efficient heat dissipation system for long-lasting operation
Metal heat dissipation fins utilize the heat transfer performance ofmetals to quickly transfer heat from the processor, achieving theeffect of reducing and stabilizing the temperature of the processor.
Interfaces display
Equipped with USB3.0 interface, HDMl output, COM and VGAinterfaces, it has better compatibility and can connect multipleperipheral devices, monitors, projectors, etc
|
LCD panel( IPS screen) |
||||
|

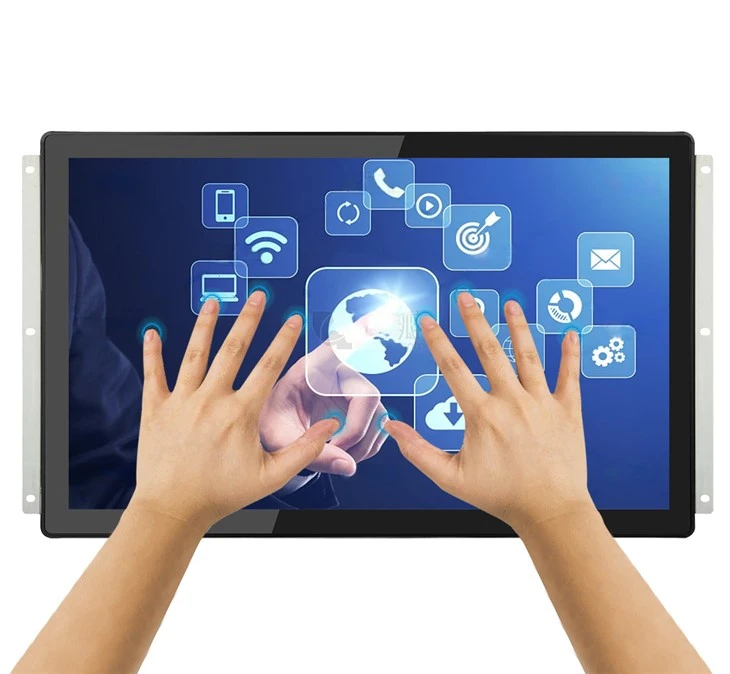

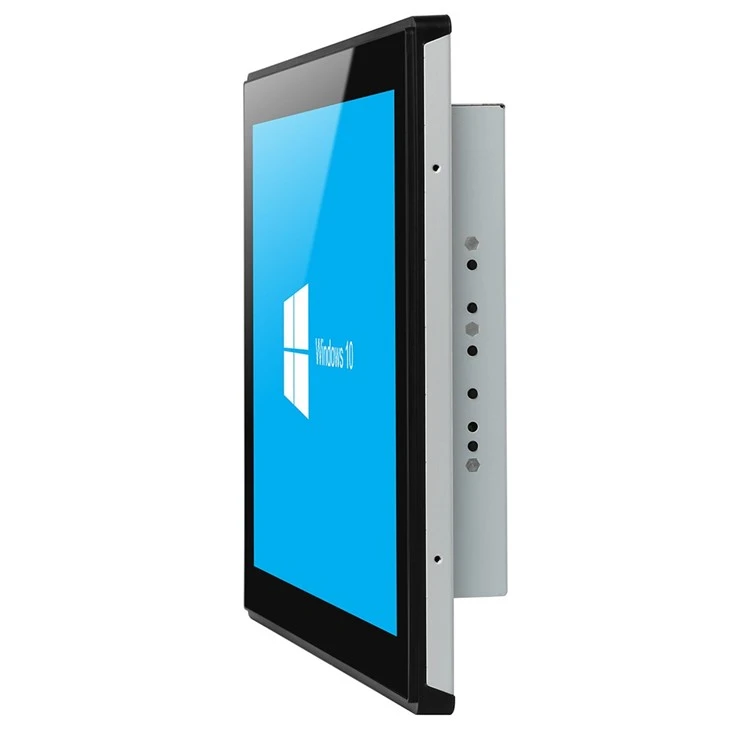

Bestview 18.5 inch industrial panel PC embedded open frame industrial touch panel PC |
||||
|
PC |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional) |
|||
|
Memory |
2GB DDR3, ( Max. 8G) |
|||
|
Hard Drive Capacity |
32G SSD or 320G HDD |
|||
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB,256GB |
|||
|
HDD: 320GB,500GB,1TB |
||||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|
I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|||
|
Opetation System |
Preinstall test version Windows 7/8/10,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
7,10.1,10.4,11.6,11.6,12.1,12.1,13.3,15,15.6,17,18.5,19,19,21.5,27,32,43 Inch |
|||
|
Resolution |
1024*600,1280*800,1366*768,1930*1080,1280*1024,1440*900 | |||
|
Brightness (cd/m²) |
350 cd/m2 |
|||
|
Response time |
15ms |
|||
|
Contrast ratio |
1000:1 |
|||
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|||
|
Touch panel |
||||
|
Touch Type |
10 points projective Capacitive touch optional |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V |
|||
|
Power consumption |
≤18W |
|||
|
Operating Environment |
||||
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna |
|||
|
Other |
||||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
