Highlight environment
The work screen can be specially customized to adapt to use in outdoor environments with direct sunlight.
Even in an environment with direct sunlight, the screen interface remains clearly visible.
Bid farewell to the troubles brought by outdoor environments and ensure user experience.

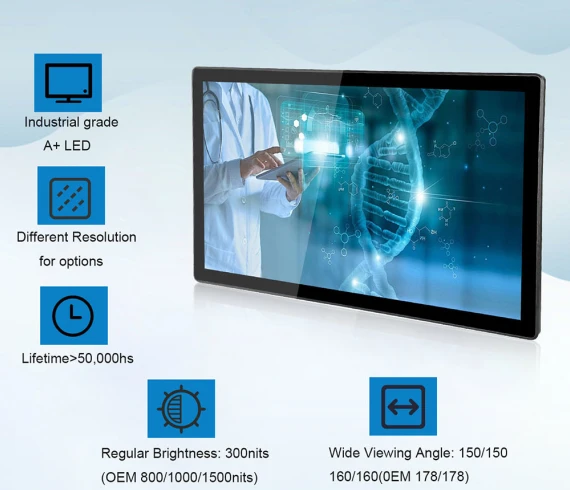

The standard screen brightness is 300cd/m ², and high-brightness screens can be customized
High hardness sareen
It has undergone high-temperature strengthening treatment and can easily withstand common daily collisions and scratches.
Multiple systems compatible taskmultiple open no pressure
Support Windows7,Windows10, Windowsl1, Linux, Android a varietyof operating systems compatibility and adaptability to feel thebeautyofintelligent human-computer interaction

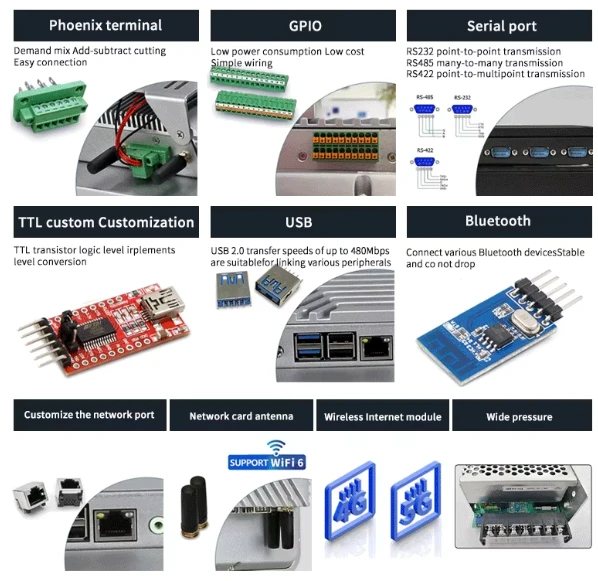

Customize the module
Customize the module
|
PC Parameter |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless(Core i3, Core i5 Core i7 optional) |
|||
|
RK3288/RK3399/RK3566/RK3568 |
|
|
|
|
|
Memory |
4GB DDR3, ( Max. 16G) |
|||
|
Hard Drive Optional |
SSD: 64GB,128GB,256GB,512GB,1TB |
|||
|
HDD: 500GB,1TB |
||||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|

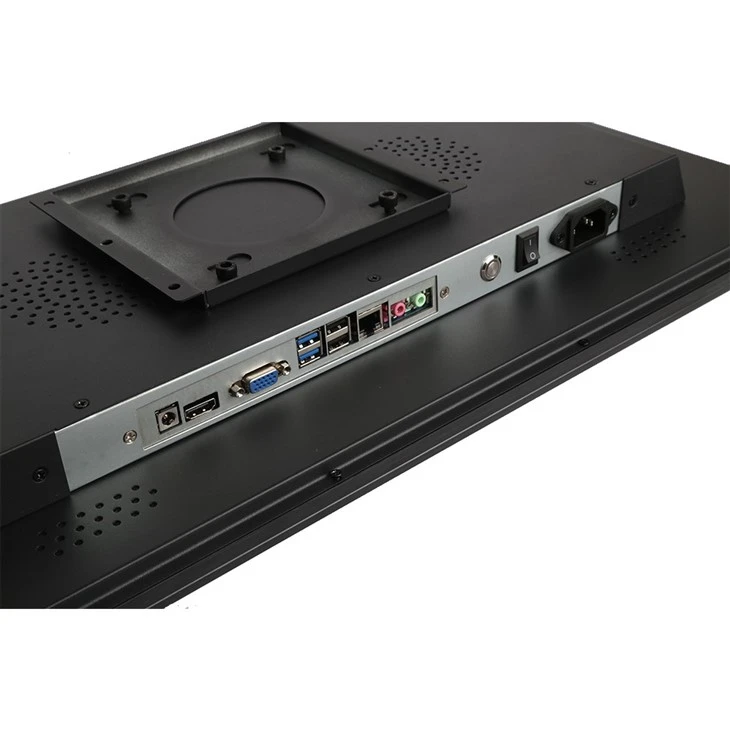

I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|||
|
Opetation System |
Preinstall test version Windows 7/8/10,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
7-55 Inch |
|||
|
Resolution |
1920X1080 |
|||
|
Brightness (cd/m²) |
Light sensor for auto dimming |
|||
|
Contrast ratio |
700:1 |
|||
|
Touch panel |
||||
|
Touch Type |
Optional: capacitive/resistive/non-touch |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V |
|||
|
Power consumption |
≤60W |
|||
|
Operating Environment |
||||
|
Temperature range |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna |
|||
|
Other |
||||
|
Mounting (options) |

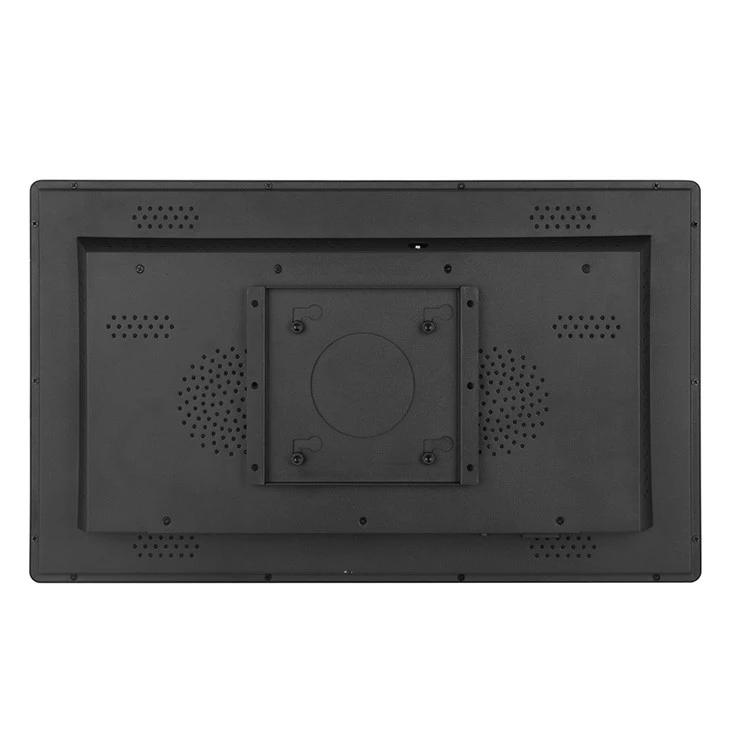

1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
|
