Product Introduction
27 inch Industrial Flat Panel PC computer touch screen all in one panel pc fanless pc touch panel
-27 inch Industrial Flat Panel PC
-16:9 screen ratio,1920x1080 resolution(4k Resolution Customized)
-Ture Flat front case design
-Multiple industrial touch panel sizes 10.1/12.1/13.3/15/15.6/17/18.5/19/19.5/21.5/23.8/27/32/43/49/55/65 and rich I/O expansion to meet industrial standards.
-Customized camera, printer,QR code scanner, NFC card reader are available
27 inch Industrial Flat Panel PC computer touch screen all in one panel pc fanless pc touch panel

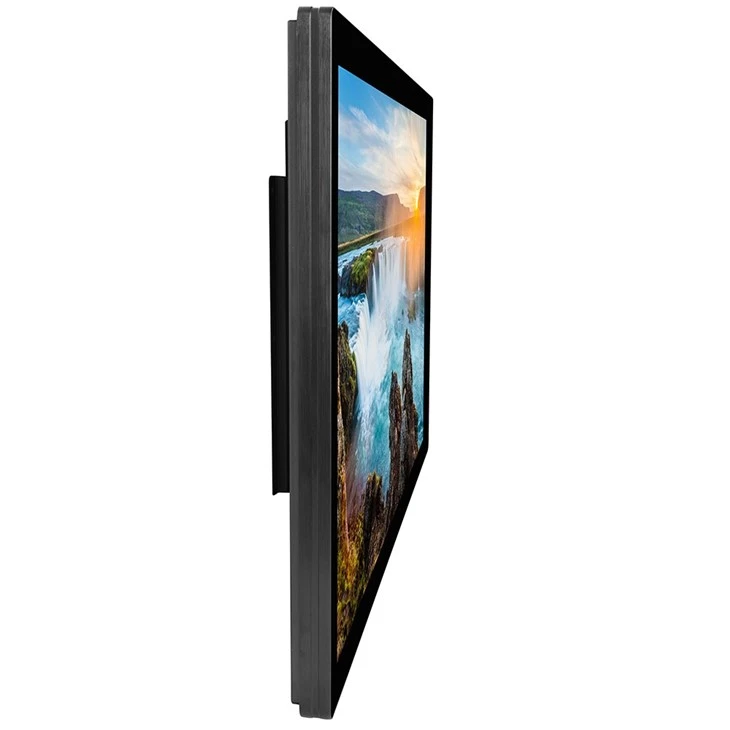

-Adopt Aluminum Alloy front Bezel,true flat design
-Ture flat screen design,ip65 front waterproof and dustproof
-Adopt brand industrial LCD/LED panel,high brightness, contrast ratio ,wide view angle, high brightness 1000 cd/m2-1500cd/m2,sunlight readable.
-10 Point Projected capacitive touch panel , high sensitive touch experience
-Support Power on,support 7x24 hours of uninterrupted work
-Built-in speaker ,Gigabit Ethernet port,built-in wifi antenna, support for wireless internet access
-Support embedded ,desk,wall mounted, bracket,stander etc installation method.
-Support different CPU,Intel J1900,J4125,J6412,Gen 3th to 12th of i3,i5,i7 Intel Core.
-Ram can be 4GB to 32GB Optional , DDR3 or DDR4
-Integrated motherboards for industrial with low power consumption
-10 points projected multi-touch screen
-More points customized
-Non touch options
-IP grade IP66 design,waterproof and dust-proof front. Fully waterproof ip68 Customized.
A variety of installation methods can be applied to different scenarios
1.1xDevice

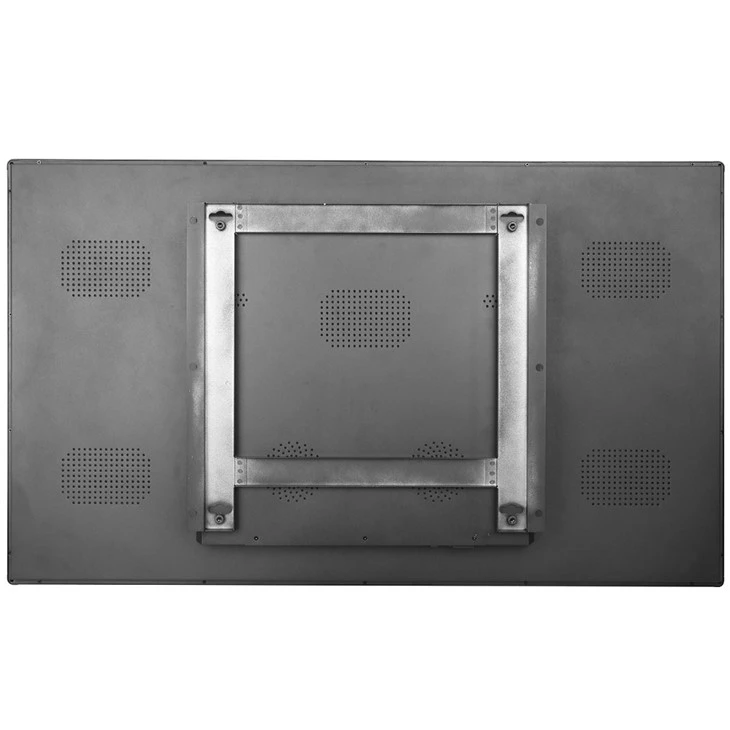

2.1xWall Mount Bracket(Optional)
3,1xPower Supply
4.1xPower Adapter
5.4xEmbedded Screws
6.1xWiFi Antenna
Capacitive touch and Non touch Available
1.12.1 inch industrial touchscreen monitor with PCAP Touch
2. Support single touch and multi touch,non touch Available
3. Touch with gloves is available
4. Touch response time <8ms
Product Specification
|
Industrial Flat Panel PC wall mount |
YT156PC |
YT185PC |
YT195PC |
YT215PC |
YT236PC |
YT27PC |
YT65PC |
|
|
Motherboard |
Configuration |
Intel® Celeron J1900/J4125/J6412 Quad core |
||||||
|
Upgrade 1 |
Intel@3th Core i3-3217U |
|||||||
|
Upgrade 2 |
Intel@5th Core i5-3317U |
|||||||
|
Upgrade 3 |
Intel@7th Core i7-4500U |
|||||||
|
Upgrade 4 |
I3 i5 i7 up to 12th Optional |
|||||||
|
Storage |
Memory |
4GB DDR3 8GB Optional,DDR4,16GB /32GB Optional |
||||||
|
SSD |
64GB, 128GB,256GB,512GB,1TB,2TB |
|||||||
|
HDD |
500GB,1TB,2TB |
|||||||
|

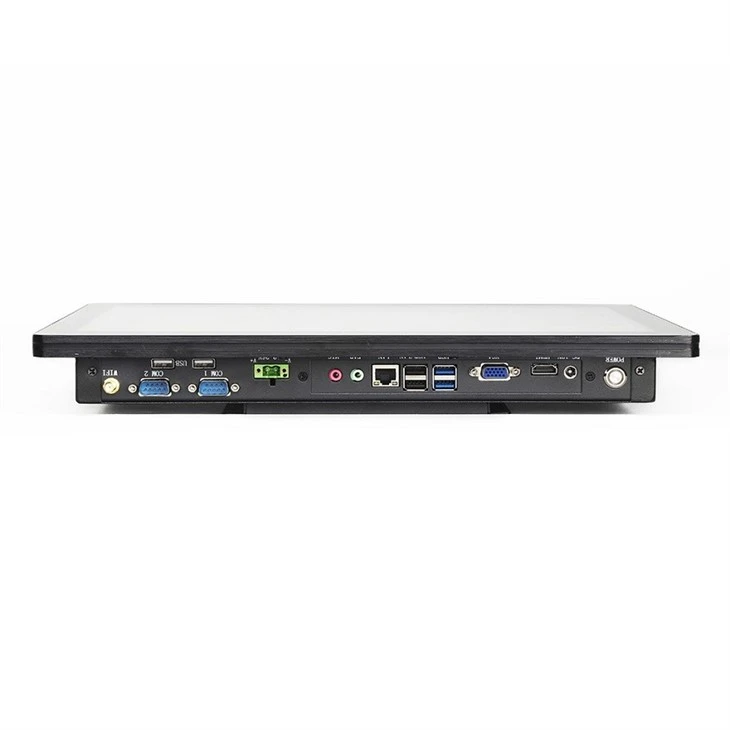

Interface |
WiFi, 3/4G module |
802.11b/g/n (optional), Support 3g/4g (optional) |
||||||
|
HDMI |
1*HDMI output |
|||||||
|
USB |
2*USB 3.0,2*USB2.0 |
|||||||
|
Network |
1*RJ45 with 1000 Base-T,2 or more Rj45 Optional |
|||||||
|
Com |
2* COM(RS232), can changed to RS485 or add more 2 to 4 RS232 |
|||||||
|
Power supply |
1*DC12V Standard, 9-36V Optional(lock phoenix terminal) |
|||||||
|
Audio output |
1*3.5mm audio |
|||||||
|
Other |
8*GPIO (optional) |
|||||||
|
Display |
Size(inch) |
15.6inch |
18.5inch |
19.5inch |
21.5inch |
23.6inch |
27inch |
Up to 65 inch |
|
Screen type |
LCD screen with LED backlight |
|||||||
|
Resolution(4K resolution Optional) |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
|
|
Contrast ratio |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
3000:1 |
|
|
Brightness(higher Optional) |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
|
|
Screen ratio |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
|
|
Structure |
Front and back cover |
Metal case |
||||||
|
Craft |
Glass frame paste, aluminum die casting |
|||||||
|
Color |
Black |
|||||||
|
Heat dissipation |
Fanless, aluminum fin heat dissipation.or with Fan Optional |
|||||||
|
Panel indicator light |
Power state, hard disk state |
|||||||
|
Touch screen |
Type |
Projected capacitive touch screen |
||||||
|
Touch point |
10 point capacitive touch or Non touch |
|||||||
|
Response time |
＜5ms |
|||||||
|
Accuracy |
＜2.5mm |
|||||||
|
Transparency |
≥90% |
|||||||
|
Protection |
The surface is coated with 1:1 PVC protective film |
|||||||
|
Others |
Working environment |
-20℃～ 70℃; Humidity: 10%～ 90% |
||||||
|
Storage environment |
Temperature: -40℃～80℃; Humidity: 10%～90% |
|||||||
|
Installation ways |
Embedded/Panel Mount, Wall Mount(VESA75*75mm/100*100mm/400mm*400mm) |
|||||||
|
Power consumption |
≤60W |
|||||||
|
Warranty |
1 year warranty |
|||||||
|
Accessories |
Wifi |
Wifi antenna |
||||||
|
Bracket |
Wall mounted bracket, embedded bracket, desktop bracket(optional) |
|||||||
|
Adapter |
Power adapter,power plug |
|||||||
