Features:
1. The standard monitor ranges from 7" to 55" screens in the 16:9 widescreen, 4:3 square screen format, with high resolution for options.

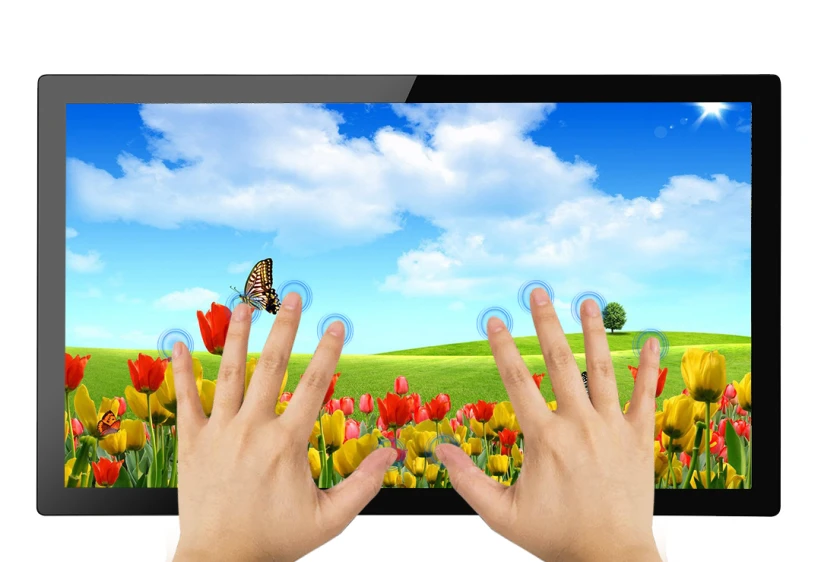

2. Precise and sensitive touch, Projected Capacitive, Resistive, or Non-touch screen for options.
3. Standard I/O interface: VGA, HD-MI, DVI, automatic identification signal channel.
4. Low power, long span life LED backlighting monitor.
5. Complete machine triple protection: explosion-proof, flameproof, moisture-proof.
6. Compatible with Windows, Linux, Android, and Raspberry Pi etc.
7. Support embedded/panel mount/card buckle/VESA holes installation.

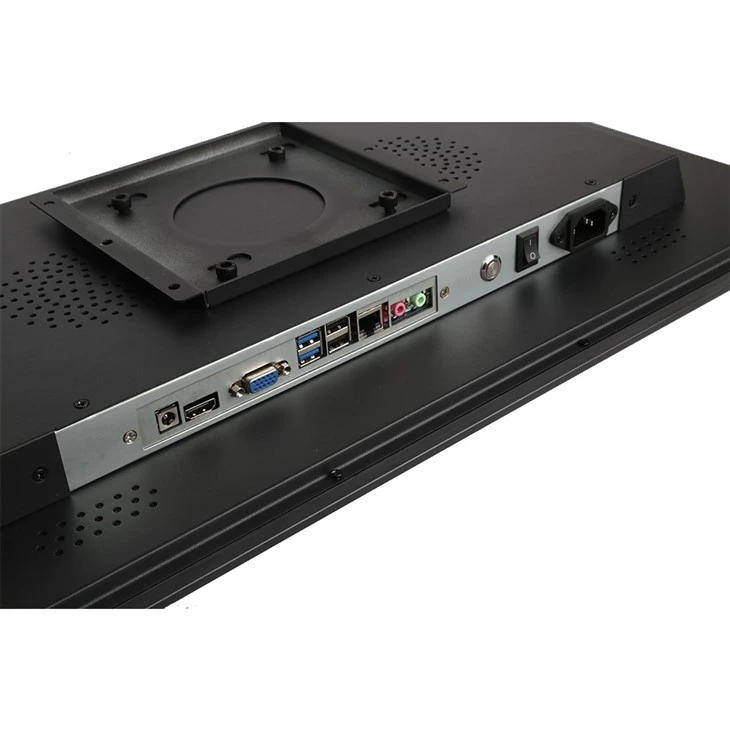

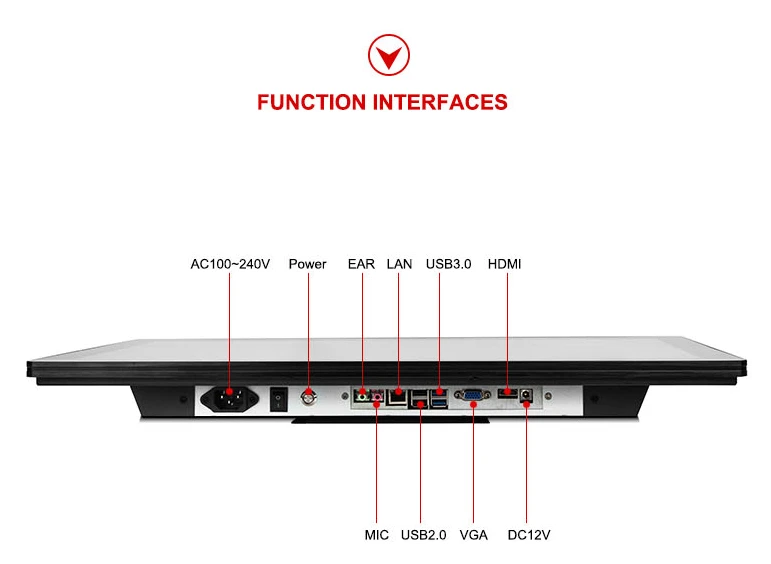

Interface distributionReserve more scalability interfaces

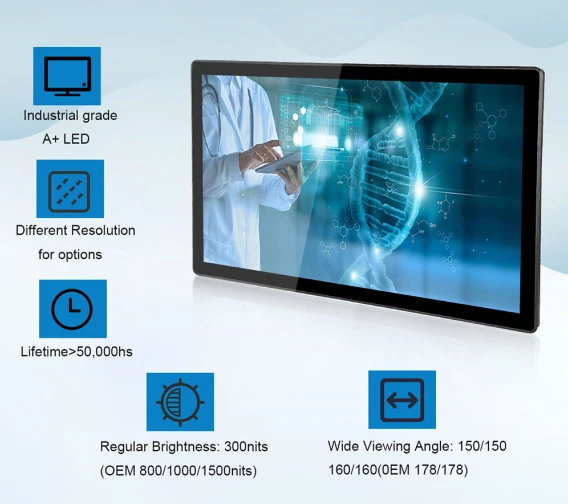

Industrial control grade HD LCD screen
HD A-standard screenwith backlight technology,The backlight life over 50.000 hours,Capacitive/resistive touch
industrial grade wide temperature motherboard

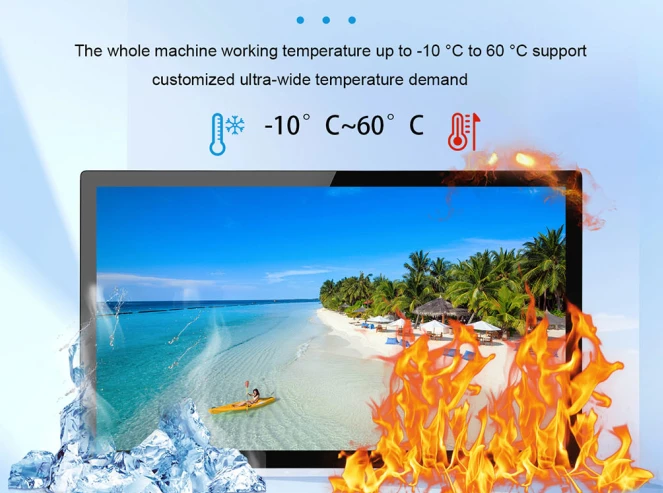

Can be customized: -20'C-70℃℃(-4°F-158°F)

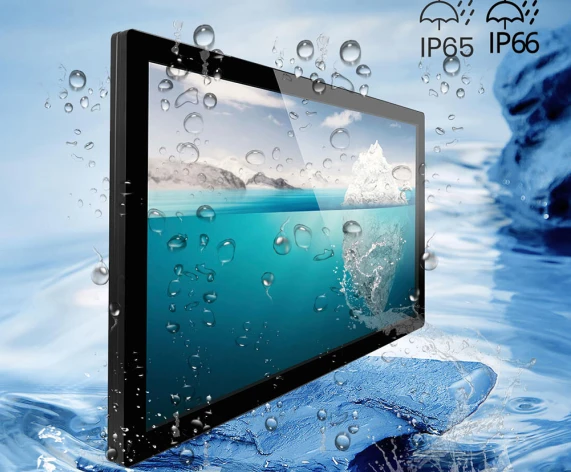

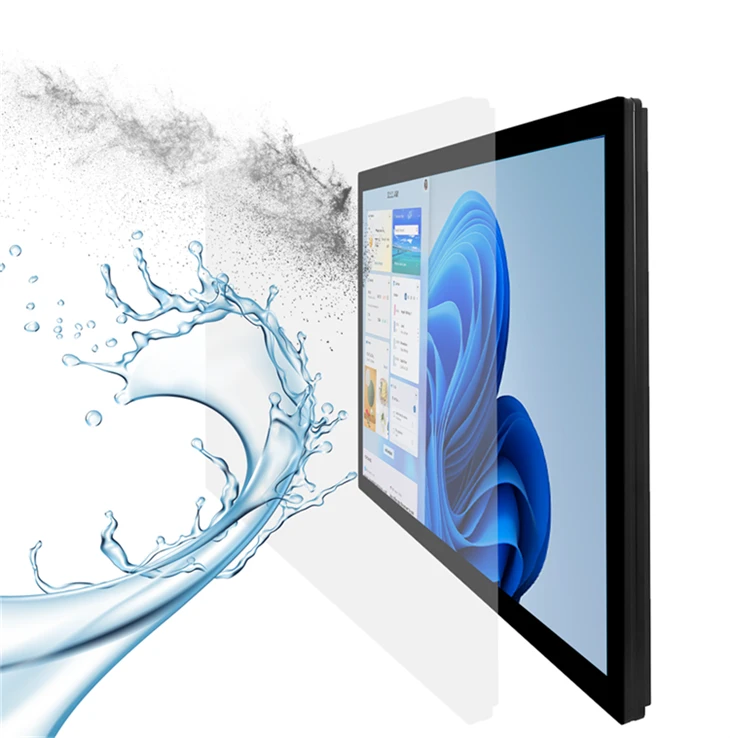

IP65 dustproofand waterproof panel
Meet the needs of complex environments
Reliable product quality
Real Application Cases of our products
IFactory:
For HMI, PLC, MES, CNC machine tool, agricultural machinery, wastewater treatment, environmental facility monitoring, industrial automatic, smart factory, power supply cabinet etc.;
01
Intelligent Transportation:
Railway power supply monitoring, rail track monitoring, automated fare collection, electronic toll collection, intelligent parking information management , vehicle weighing, smart port management, Fleet management
02
Smart City:
Outdoor kiosks, IP65 front panel intelligent self-service terminal, smart home, smart meeting room, smart building, Self-service express cabinet, bicycleself-service cabinet, smart charging pile, smart supermarket service robots, smart bankingrobots, smart canteen payment equipment etc.
03
Medical:
Medical mobile carts, self-service appointment/payment/fetching panel pc, remote patient beddetection equipment, intelligent self-service blood pressure meter, self-service dispensing cabinet, etc.
04
Product Specification
|
Industrial Touch Screen PC |
YT156PC |
YT185PC |
YT195PC |
YT215PC |
YT236PC |
YT27PC |
YT65PC |
|
|
Motherboard |
Configuration |
Intel® Celeron J1900/J4125/J6412 Quad core |
||||||
|
Upgrade 1 |
Intel@3th Core i3-3217U |
|||||||
|
Upgrade 2 |
Intel@5th Core i5-3317U |
|||||||
|
Upgrade 3 |
Intel@7th Core i7-4500U |
|||||||
|
Upgrade 4 |
I3 i5 i7 up to 12th Optional |
|||||||
|
Storage |
Memory |
4GB DDR3 8GB Optional,DDR4,16GB /32GB Optional |
||||||
|
SSD |
64GB, 128GB,256GB,512GB,1TB,2TB |
|||||||
|
HDD |
500GB,1TB,2TB |
|||||||
|
Interface |
WiFi, 3/4G module |
802.11b/g/n (optional), Support 3g/4g (optional) |
||||||
|
HDMI |
1*HDMI output |
|||||||
|
USB |
2*USB 3.0,2*USB2.0 |
|||||||
|
Network |
1*RJ45 with 1000 Base-T,2 or more Rj45 Optional |
|||||||
|
Com |
2* COM(RS232), can changed to RS485 or add more 2 to 4 RS232 |
|||||||
|
Power supply |
1*DC12V Standard, 9-36V Optional(lock phoenix terminal) |
|||||||
|
Audio output |
1*3.5mm audio |
|||||||
|
Other |
8*GPIO (optional) |
|||||||
|
Display |
Size(inch) |
15.6inch |
18.5inch |
19.5inch |
21.5inch |
23.6inch |
27inch |
Up to 65 inch |
|
Screen type |
LCD screen with LED backlight |
|||||||
|
Resolution(4K resolution Optional) |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
|
|
Contrast ratio |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
3000:1 |
|
|
Brightness(higher Optional) |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
|
|
Screen ratio |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
16:9 |
|
|
Structure |
Front and back cover |
Metal case |
||||||
|
Craft |
Glass frame paste, aluminum die casting |
|||||||
|
Color |
Black |
|||||||
|
Heat dissipation |
Fanless, aluminum fin heat dissipation.or with Fan Optional |
|||||||
|
Panel indicator light |
Power state, hard disk state |
|||||||
|
Touch screen |
Type |
Projected capacitive touch screen |
||||||
|
Touch point |
10 point capacitive touch or Non touch |
|||||||
|
Response time |
＜5ms |
|||||||
|
Accuracy |
＜2.5mm |
|||||||
|
Transparency |
≥90% |
|||||||
|
Protection |
The surface is coated with 1:1 PVC protective film |
|||||||
|
Others |
Working environment |
-20℃～ 70℃; Humidity: 10%～ 90% |
||||||
|
Storage environment |
Temperature: -40℃～80℃; Humidity: 10%～90% |
|||||||
|
Installation ways |

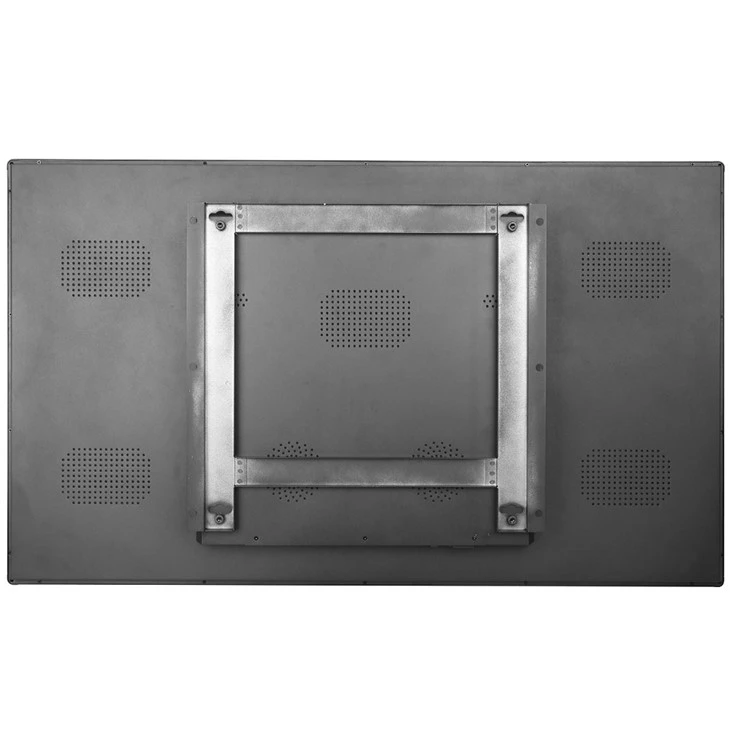

Embedded/Panel Mount, Wall Mount(VESA75*75mm/100*100mm/400mm*400mm) |
|||||||
|
Power consumption |
≤60W |
|||||||
|
Warranty |
1 year warranty |
|||||||
|
Accessories |
Wifi |
Wifi antenna |
||||||
|
Bracket |
Wall mounted bracket, embedded bracket, desktop bracket(optional) |
|||||||
|
Adapter |
Power adapter,power plug |
|||||||
