Description
Technical Parameters

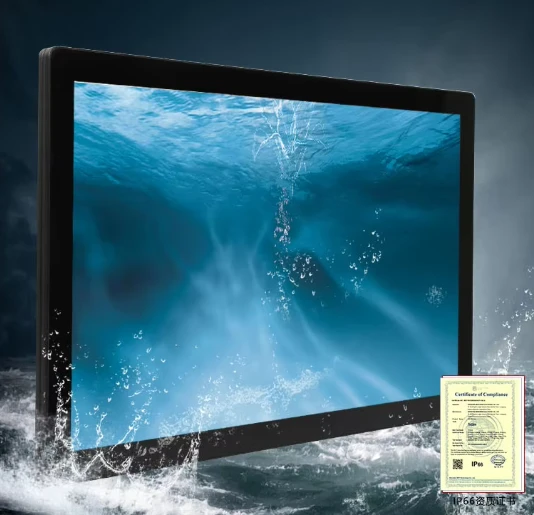

DUSTPROOF.WATERPROOFAND ANTICORROSIVE
Metal shell is shockproof and anti-static

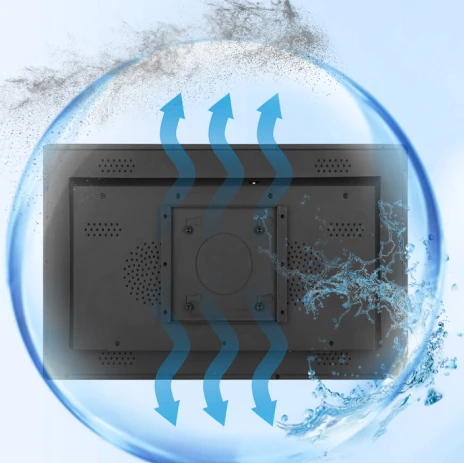

EFFICIENT HEAT DISSIPATIONBACK COVER
Fully enclosed aluminum alloy back cover,efficient heat dissipation

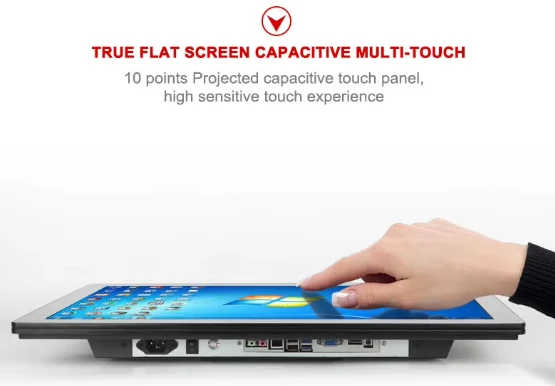

IPS SCREEN HIGH PRECISIONTOUCH
Ten-point touch 5ms response,Click life is greater than or equal to 55 million times
|
PC Parameter
|
||||
|
CPU
|
Inter Celeron J1900, quad core, 2.0Ghz, fanless(Core i3, Core i5 Core i7 optional)
|
|||
|
RK3288/RK3399/RK3566/RK3568
|
|
|
|
|
|
Memory
|
4GB DDR3, ( Max. 16G)
|
|||
|
|
SSD: 64GB,128GB,256GB,512GB,1TB
|
|||
|
HDD: 500GB,1TB
|
||||
|
Network
|
1×Realtek RTL 8111E Gigabit Ethernet controller
|
|||
|
Wireless Network
|
WIFI optional
|
|||
|

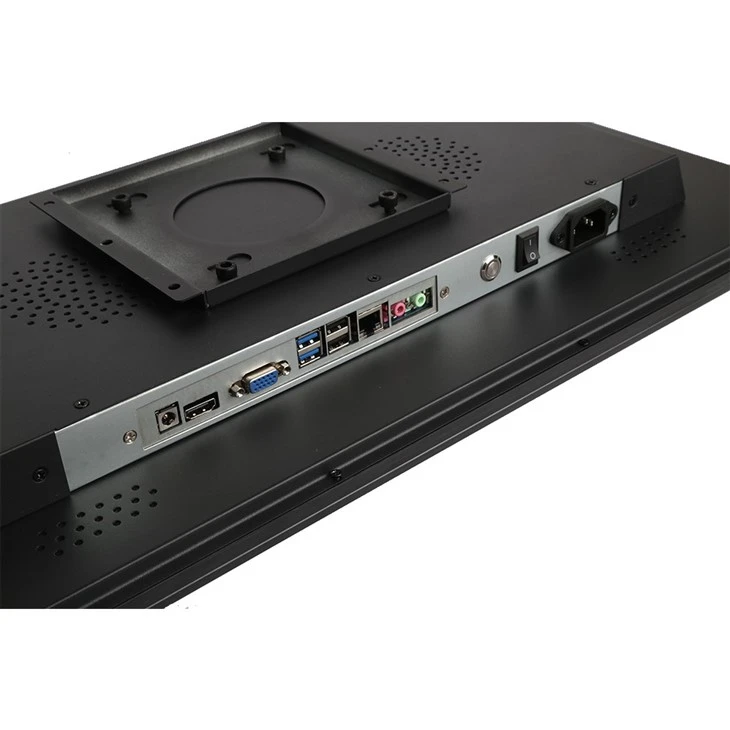

I/O Interface
|
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC
|
|||
|
Opetation System
|
Preinstall test version Windows 7/8/10,Linux
|
|||
|
Image Format
|
Support BMP,JPEG,PNG,GIF
|
|||
|
LCD panel
|
||||
|
Panel size
|
7-55 Inch
|
|||
|
Resolution
|
1920X1080
|
|||
|
Brightness (cd/m²)
|
Light sensor for auto dimming
|
|||
|
Contrast ratio
|
700:1
|
|||
|
Touch panel
|
||||
|
Touch Type
|
Optional: capacitive/resistive/non-touch
|
|||
|
Touch Interface
|
USB
|
|||
|
Response time
|
<8ms
|
|||
|
Luminousness
|
75-85%
|
|||
|
Power Supply
|
||||
|
External Power Supply
|
AC 100 - 240V
|
|||
|
Working voltage
|
DC 12V
|
|||
|
Power consumption
|
≤60W
|
|||
|
Operating Environment
|
||||
|
Temperature range
|
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
|||
|
Relative humidity
|
5%~95% @ 40° C, non-condensing
|
|||
|
Vibration
|
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
|
|||
|
Packing Details
|
||||
|
Accessories
|
Power adapter, Wifi antenna
|
|||
|
Other
|
||||
|

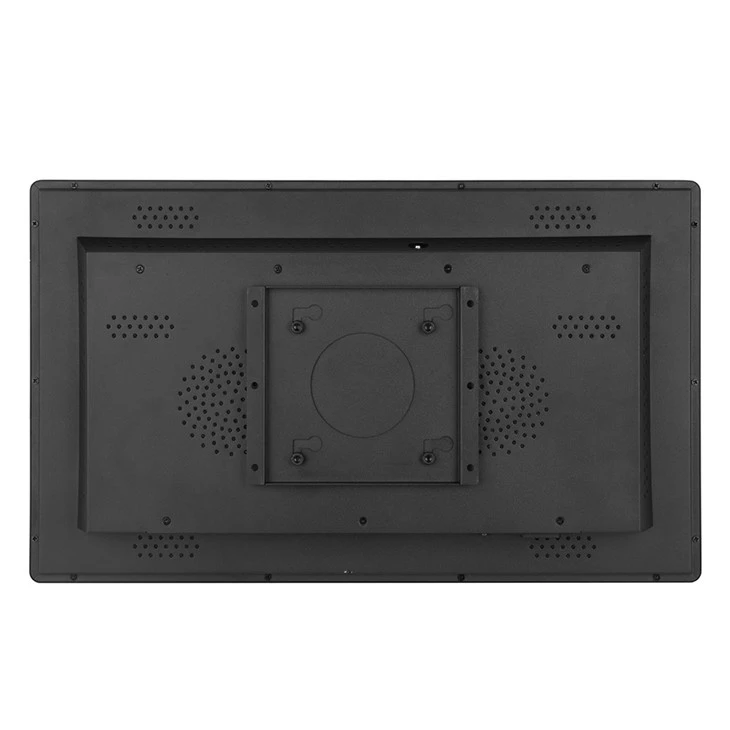

Mounting (options)
|
1) provide wall brackets for wall-mounting, VESA 100×100mm
|
|||
|
2) provide Floor standing to support the PC
|
||||
|
Certification
|
CE, FCC,ROHS
|
|||
|
Warranty
|
1 year warranty
|
|||
|
Key words
|
industrial tablet pc,industrial touch panel pc,industrial all in one panel pc
|
|||
