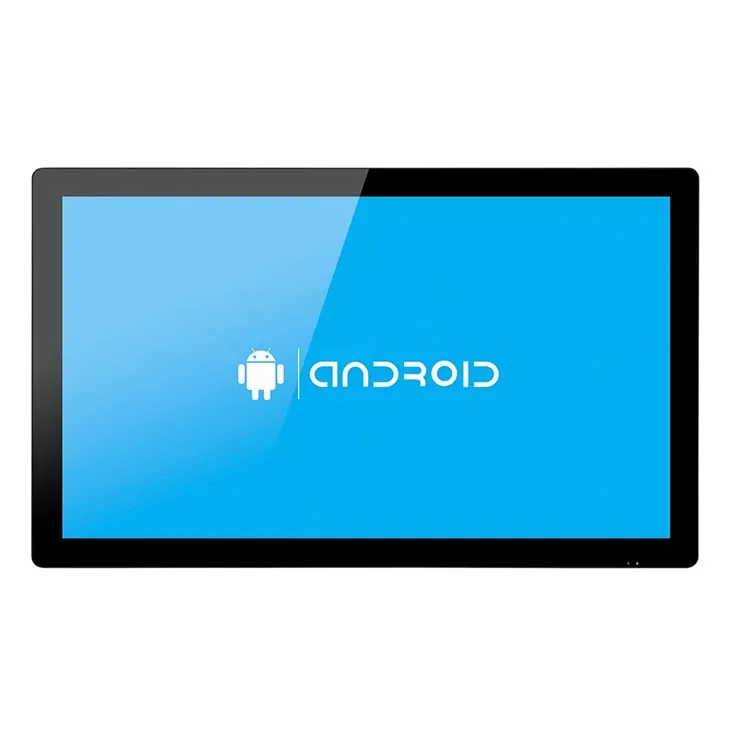

Industrial front panel with oversized design
It adopts advanced materials and manufacturing processes and has excellent impact resistance. Its IP65-level dust and water resistance can effectively prevent the intrusion of water, fog and dust, meeting the requirements of special industrial environments.
Industrial-grade heat dissipation, all-day operation
Adopting the leading passive cooling technology, it offers nearly silent operation. Large-area immersion heat sinks are used for efficient heat dissipation, quickly removing the heat generated during operation, ensuring 7x24-hour continuous operation without affecting reliability and service life
Industrial performance, continuous stability
The wide voltage design supports DC 12V(12-24V) or external AC 100-240V to DC 12V/4A adapter power supply, which enables it to operate normally in an environment with external voltage fluctuations and supports stable input of 12V rated voltage to the motherboard to meet the voltage requirements of industrial standard products.operate reliably within a temperature range of -20°C to 60°C.
Industrial standards, easy to use
wall-mounted and other methods, and can be placed in any position. It is widely applicable to automation fields such as industrial control, communication, power and network.
|
PC Parameter |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless(Core i3, Core i5 Core i7 optional) |
|||
|
RK3288/RK3399/RK3566/RK3568 |
|
|
|
|
|
Memory |
4GB DDR3, ( Max. 16G) |
|||
|
Hard Drive Optional |
SSD: 64GB,128GB,256GB,512GB,1TB |
|||
|
HDD: 500GB,1TB |
||||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|
I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|||
|
Opetation System |
Preinstall test version Windows 7/8/10,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
7-55 Inch |
|||
|
Resolution |
1920X1080 |
|||
|
Brightness (cd/m²) |
Light sensor for auto dimming |
|||
|
Contrast ratio |
700:1 |
|||
|
Touch panel |
||||
|
Touch Type |
Optional: capacitive/resistive/non-touch |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V |
|||
|
Power consumption |
≤60W |
|||
|
Operating Environment |
||||
|
Temperature range |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna |
|||
|
Other |
||||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
|
