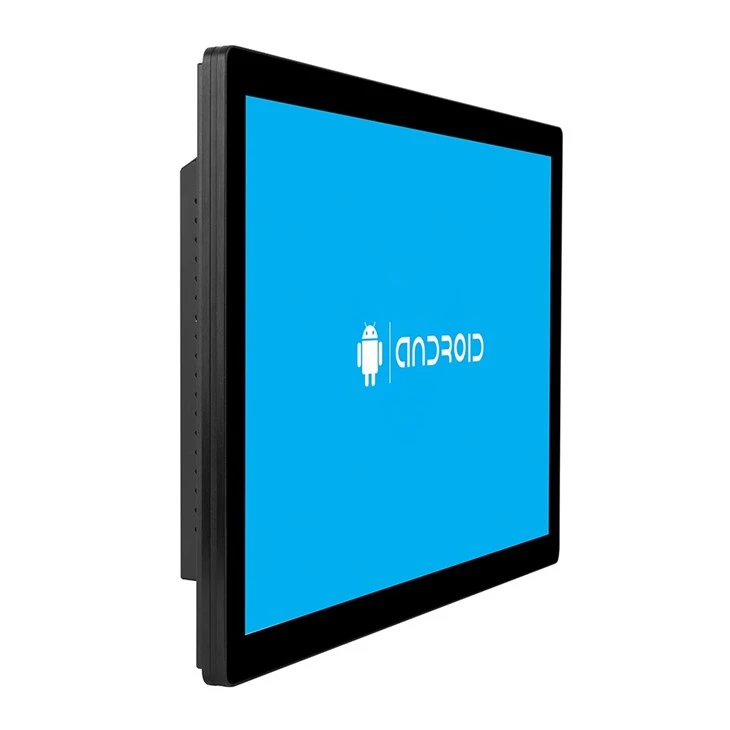

Sunlight-Readable
Sunlight-Readable and front panelWaterproof Outdoor Screen

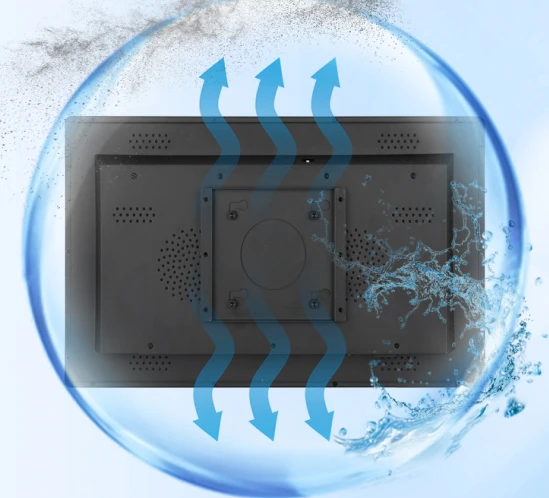

Full aluminum housing forefficient heat dissipation
Under high-intensity working conditions, it can also maintain stable performance in real time, thereby extending the service life of the machine.
Integrated forming of frontand rear aluminum die cast-ing aluminum mould
The back shell of the frame is made of aluminum alloy and formed by one-time die-casting. The structure is more standard and the overall design is compact.
|
PC Parameter |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless(Core i3, Core i5 Core i7 optional) |
|||
|
RK3288/RK3399/RK3566/RK3568 |
|
|
|
|
|
Memory |
4GB DDR3, ( Max. 16G) |
|||
|
Hard Drive Optional |
SSD: 64GB,128GB,256GB,512GB,1TB |
|||
|
HDD: 500GB,1TB |
||||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|

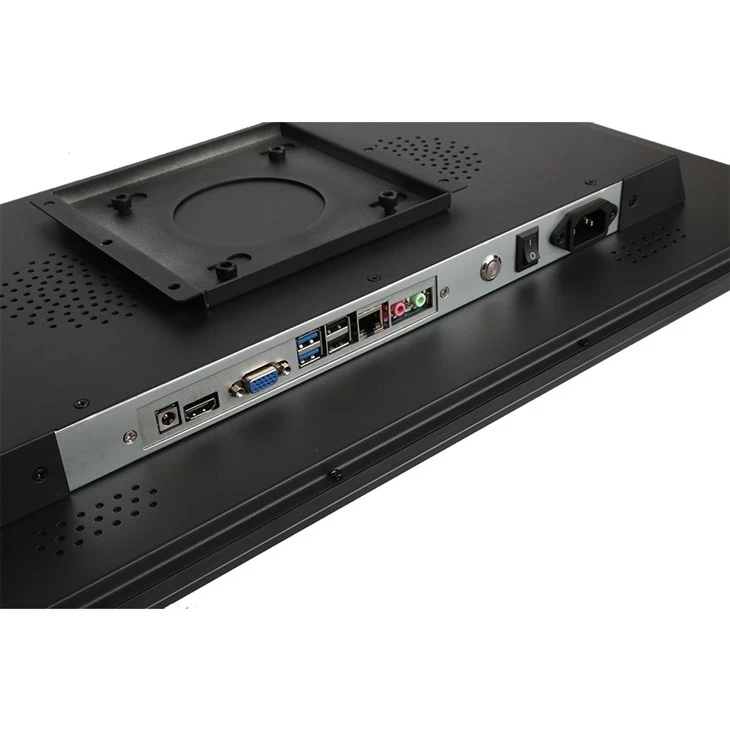

I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|||
|
Opetation System |
Preinstall test version Windows 7/8/10,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
7-55 Inch |
|||
|
Resolution |
1920X1080 |
|||
|
Brightness (cd/m²) |
Light sensor for auto dimming |
|||
|
Contrast ratio |
700:1 |
|||
|
Touch panel |
||||
|
Touch Type |
Optional: capacitive/resistive/non-touch |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V |
|||
|
Power consumption |
≤60W |
|||
|
Operating Environment |
||||
|
Temperature range |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna |
|||
|
Other |
||||
|

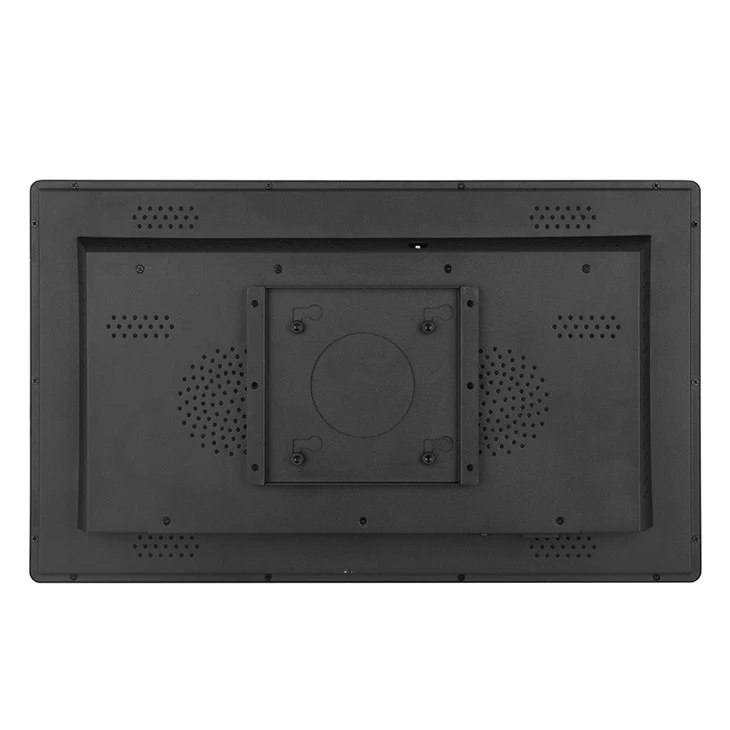

Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
|
