Using industrial A+ LCD screen, the color is more standard, theservice life is longer, and the quality is strictly guaranteed
Aluminum profile is more resistant to high and low temperature
Through the controllable high temperature test, the product adapts to thetemperature between -20 degrees and 60 degrees, and can be usednormally even in harsh environments
Pure screen capacitive touch, high resolution, sensitive re-sponse, no lag, no blind spots, and high stability

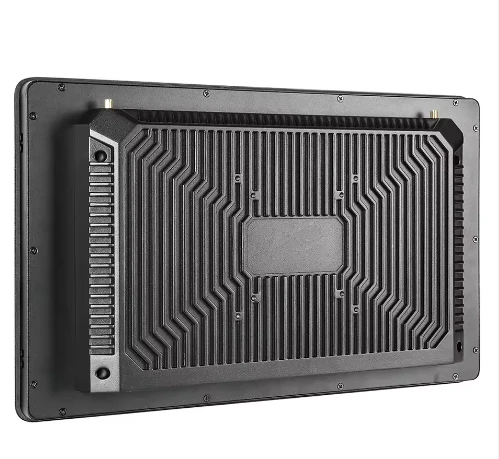

Fully Enclosed Fanless Design
Side heat dissipation design, quiet heat dissipation
and more efficient
The surface adopts a fully enclosed treatment process toachieve the effect of waterproof, dustproof and oil-proof
System Selected On Demand
The android/windows system is optional, with strong compatibilityand stable performance to meet the needs of different scenarios
Suitable for harsh working environment,fully enclosed designfor more effective dustproof, waterproof and oil drain
Product Description
|

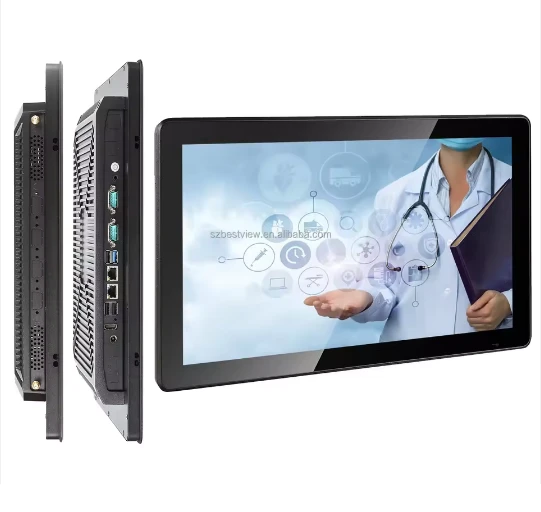

Bestview New Narrow Edge Promotion PC India BIS CE Industrial Grade Cost-Effective All in One Capacitive Touch Panel PC |
||
|
PC |
||
|
CPU |
Intel® Core i5 |
|
|
Memory |
8G DDR4 |
|
|
Hard Drive Capacity |
128G SSD |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|
|
Wireless Network |
WIFI optional |
|
|

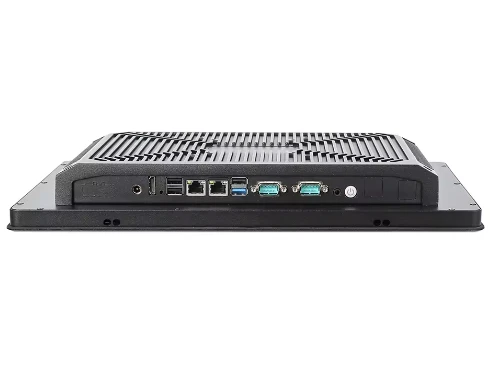

I/O Interface |
2×USB2.0/USB3.0/COM,1×Lan(RJ45),1×HDMI/MIC/EAR/POWER DC |
|
|
Opetation System |
Preinstall test version Win7/8/10/11,Linux |
|
|
LCD panel |
||
|
Panel size |
15.6" 21.5'' 18.5'' 13.3'' 10.4'' 12.1'' 15'' 17'' 19'' 23.8'' 27'' |
|
|
Resolution |
1920*1080, 1024*768,1280*1024 |
|
|
Brightness (cd/m²) |
250 cd/m2(500~1000 cd/m2) |
|
|
Response time |
15ms |
|
|
Contrast ratio |
1000:1 |
|
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
|
Touch panel |
||
|
Touch screen Type |
capacitive touch |
|
|
Touch Interface |
USB |
|
|
Touch response time |
<8ms |
|
|
Luminousness |
75-85% |
|
|
Power Supply |
||
|
External Power Supply |
AC 100 - 240V |
|
|
Working voltage |
DC 12V(DC9~36V optional) |
|
|
Power consumption |
≤18W |
|
|
Operating Environment |
||
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
Packing Details |
||
|
Accessories |
Power adapter, wifi antenna,embedded screws |
|
|
Other |
||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|
|
2) provide stable metal holder to support the monitor |
||
|
Certification |
CE, FCC, RoHS, BIS |
|
|
Warranty |
1 year warranty(2~3 years optional) |
|
