Dust and waterproof up to IP65 level
Effectively prevent splashing water droplets and dust from entering the interior of the machine

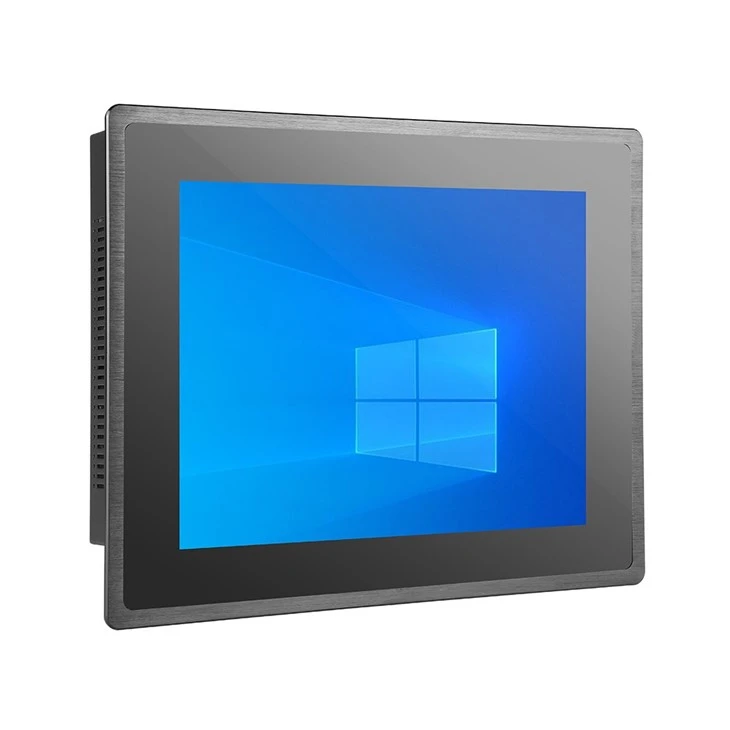

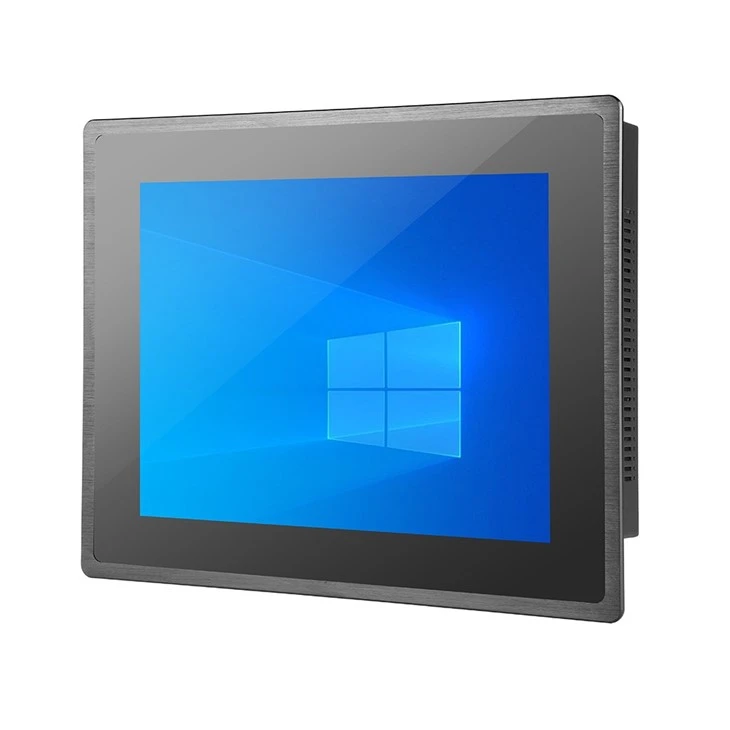

Exquisite appearance showcases industrial texture
Exquisitely crafted wire drawing process to create truly industrialgrade quality,multiscenario application products

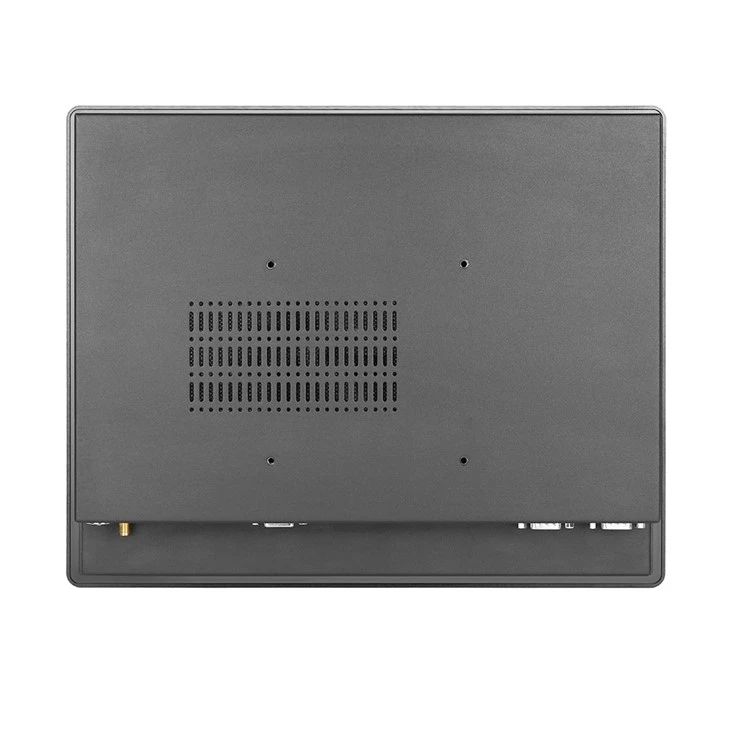

Fully enclosed, fanless andefficient heat dissipation Noisy operation
Aluminum alloy integrated body, designed witharc-shaped heat dissipation structure

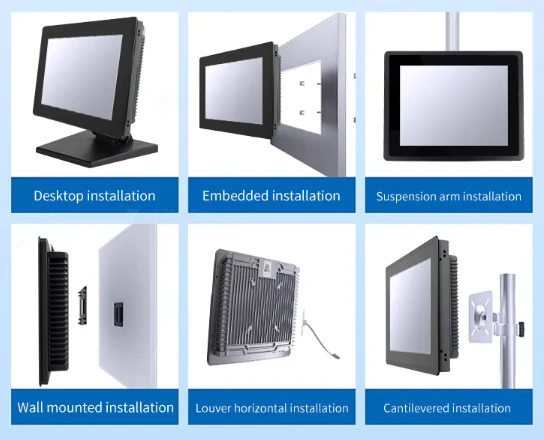

Flexible installationsupports multiple installation methods
Supports various installations such as desktop,wall mounted,cantilever,boom,and louver horizontal.For more details
Packing&Shipping
Usage scenarios
|
LCD panel( IPS screen) |
|
|
CPU |
Intel® Celeron J1900 2.0GHz, Quad cores, fanless |
|
Intel® Core i3-3217U 1.8GHz dual cores, with fan |
|
|
Intel® Core i5-3317U 1.7GHz dual cores, with fan, i5-6th |
|
|
Memory |
8GB DDR3 ( Max. 32G) |
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB, 256GB |
|
HDD: 160GB,320GB,500GB,1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1×Realtek RTL 8111F Gigabit Ethernet controller |
|
Wifi |
Optional |
|
4G module |
Optional |
|

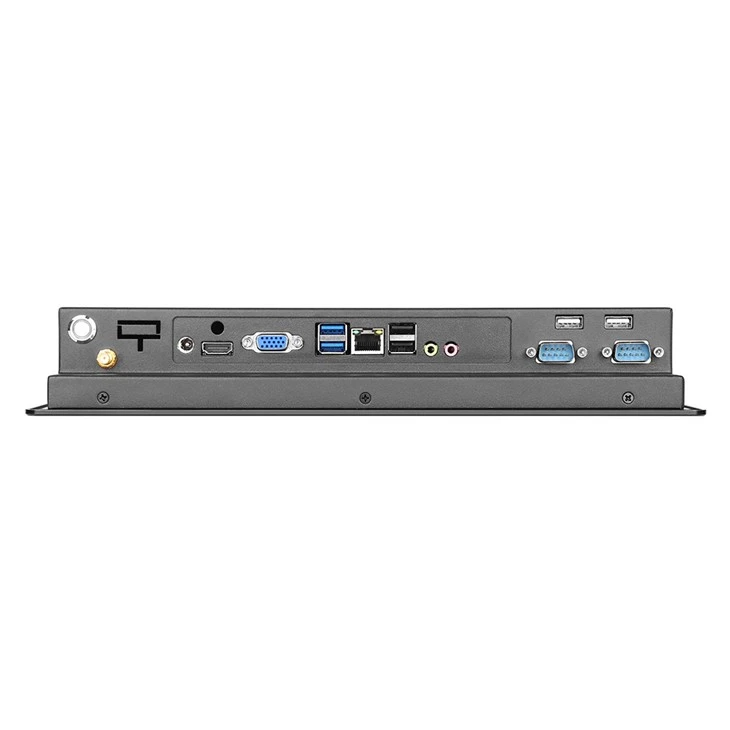

I/O Interface |
2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC |
|
Opetation System |
Windows 7/8/10/Linux |
|

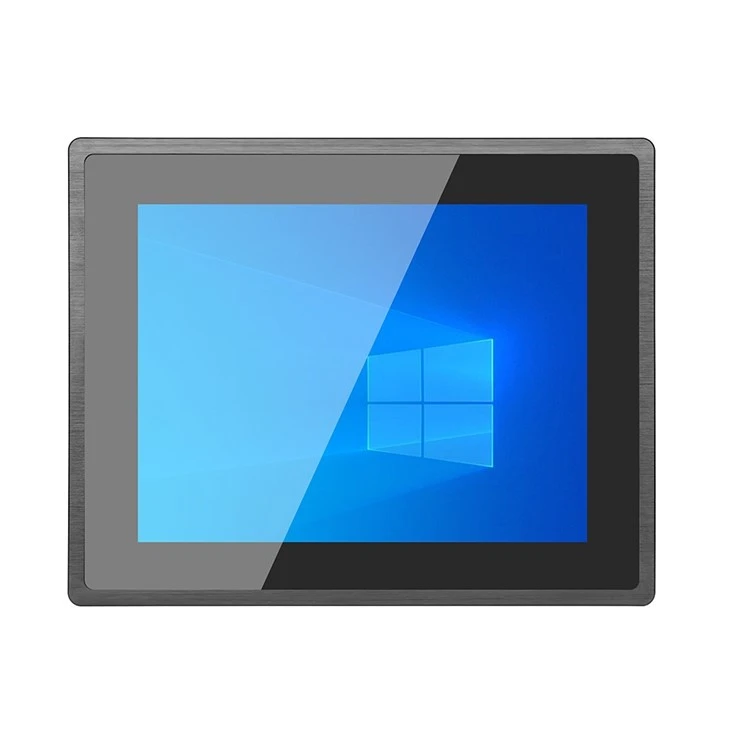

LCD panel |
|
|
Panel size |
7-21.5inch |
|
Resolution |
1280x1024,1920X1080 |
|
Brightness (cd/m²) |
350 cd/m² or custom |
|
Response time |
15ms |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
75-85% |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V,9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature range |
operating: -25 to 75°C, storage :-30 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Accessories |
Power adapter, wall mounting bracket |
|
Other |
|
|
Mounting (options) |
1) Wall brackets for wall-mounting, VESA 100×100mm |
|
2) Metal desl stander to support the PC |
|
|
3) Open frame mount kits( left and right side) to hold the PC |
|
|
4) Embedded installation, 1 sets screws provided |
|
|
Certification |
CE, FCC |
|
Warranty |
1 year warranty |
