Key point:
01
* System optional:android OR winXP/7/8/10,linux,ubuntu
02
* Mouting ways:Desktop,VESA,Embedded,Wall mounting,etc
03
* 10 points capacitive touch/Resistive touch/non touch
04
* A+ panel,seamless design,IP65 waterproof dustproof
services we offer
05
* Simple And Smart Design All In One.
06
* 7/24 working
07
* Multiple I/O Port To Meet Customers Requirement.
FAQ
Q: Does OEM and ODM service available for Industrial Panel PC?
A: Yes, both OEM and ODM service are available, we have more than 100 engineer working in the R&D dept, which able to offer variety customizing option case by case for customers.
Q: Product application
A: Adaptable for various application environment,suitable for Smart city; Smart education; Smart
payment;Smart machine; Smart transportation; Artificial intelligence
Q:What are the characteristics of your products?
A:IP65 Dustproof and waterproof; Anti-electromagnetic interference EMI/EMC;Anti-vibration GB2423 standard; Flameproof/Explosion proof;High and low temperature resistance;Industrial grade motherboard;7*24 hours running Low power consumption.
Q: What kind of your company will be?
A: We are the leading company to focus on the Touch panel PC, both available for Capacitive touch and Resistive touch, we are the factory (10000SQM), with more than 300 people working in the company. All products is developed and designed by our engineers, there are more than 100 engineer working in the hardware and software, i believe we have very strong technical back up and support for our clients to do the customizing cases.
Q: What size of Panel PC available?
A: Regular size will be: 7".8". 10.1'', 10.4'', 12'',13.3: 15'',15.6'', 17'', 17.3'', .18.5"19'', 19.1'',21.5'' 23.8".27"some of the size are in wide screen.
Q: What are the advantage of your products?
1) Famous brand of original panel A grade.
2) Independent research and development of the motherboard
3) Famous brand of Capcitive touch glass
Q: Does logo allowing to be printed on the frame? Do you have MOQ?
A: Yes, logo can be printed on the frame with charge extra moeny, it will be free of charge if quantity upto 100 pcs. We just need the AI file of your logo, we will take care of the rest.
Q: Does sample available?
A: Yes, sample is available, customer need sample to do the test and integration
|
LCD panel( IPS screen) |
|
|
CPU |
Intel® Celeron J1900 2.0GHz, Quad cores, fanless |
|
Intel® Core i3-3217U 1.8GHz dual cores, with fan |
|
|
Intel® Core i5-3317U 1.7GHz dual cores, with fan, i5-6th |
|
|
Memory |
8GB DDR3 ( Max. 32G) |
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB, 256GB |
|
HDD: 160GB,320GB,500GB,1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1×Realtek RTL 8111F Gigabit Ethernet controller |
|
Wifi |
Optional |
|
4G module |
Optional |
|

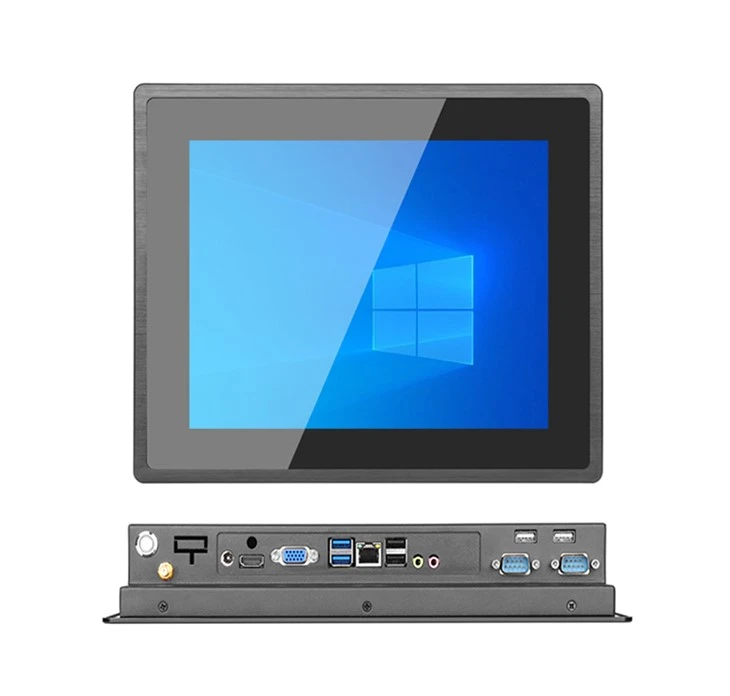

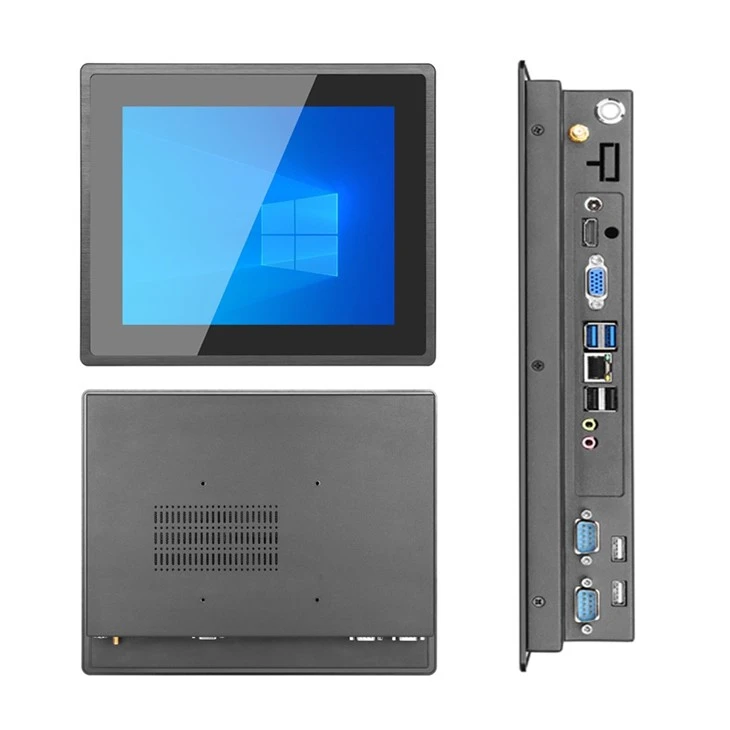

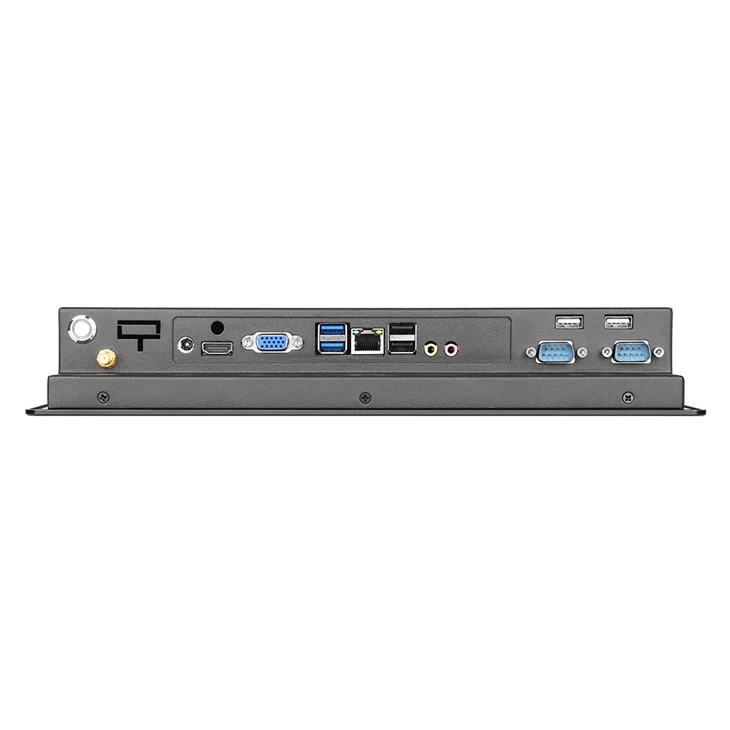

I/O Interface |
2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC |
|
Opetation System |
Windows 7/8/10/Linux |
|
LCD panel |
|
|
Panel size |
7-21.5inch |
|
Resolution |
1280x1024,1920X1080 |
|
Brightness (cd/m²) |
350 cd/m² or custom |
|
Response time |
15ms |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
75-85% |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V,9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature range |
operating: -25 to 75°C, storage :-30 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Accessories |
Power adapter, wall mounting bracket |
|
Other |
|
|
Mounting (options) |
1) Wall brackets for wall-mounting, VESA 100×100mm |
|
2) Metal desl stander to support the PC |
|
|
3) Open frame mount kits( left and right side) to hold the PC |
|
|
4) Embedded installation, 1 sets screws provided |
|
|
Certification |
CE, FCC |
|
Warranty |
1 year warranty |
