Product Description

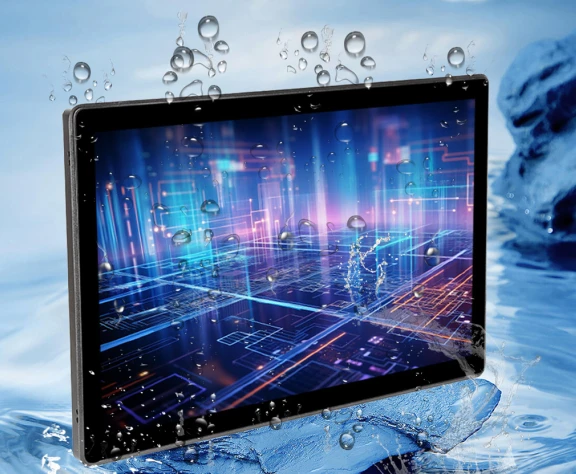

Waterproof Front Shell
True lP65 Protection Grade Design Effectively Prevents dust.
Water Droplets, etc

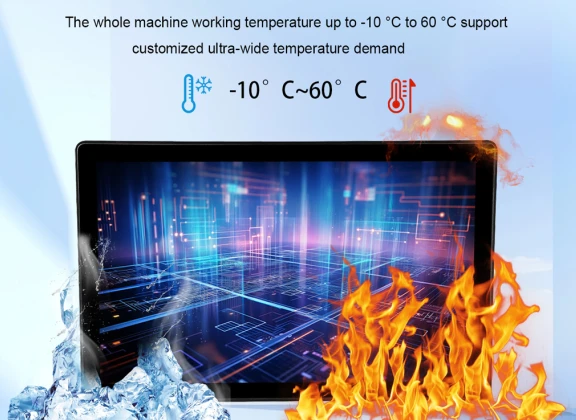

Fearless of High& Low Temperatures
The Whole Machine Working Temperature up to -10℃ to 60℃ Support Customized Ultra-wide Temperature Demand

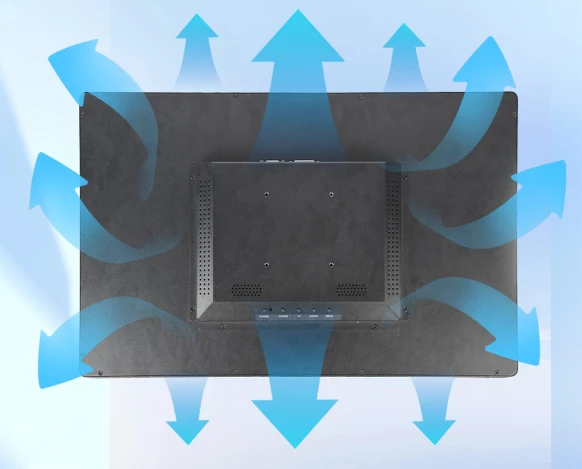

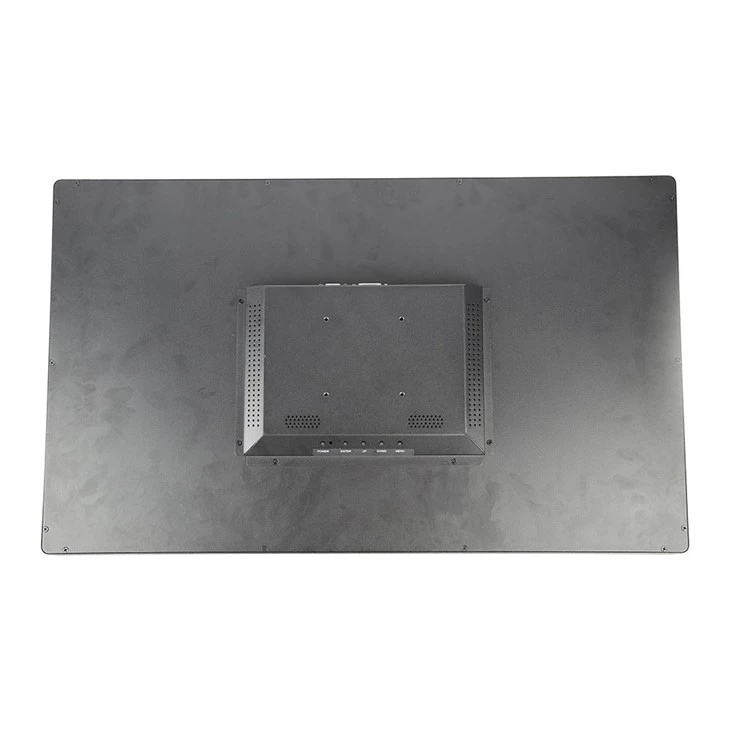

Rugged Sheet Metal Shell
Corrosion Resistance,Shock Resistance,Long Service life
Specially Built for Industry

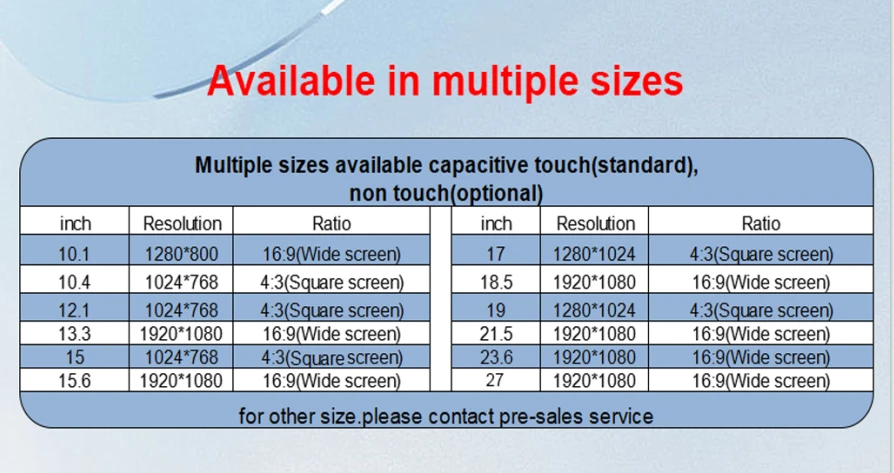

Many Choices
We Have 10.1'' 10.4" 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27''Inches,Many Choices
6 Tests Before Delivery
Ensure 100% pass rate
Display testing
Testing the lcd for integrity before production
DC voltage stabilization test
Adjust the output voltage to achieve the purpose of voltage stabilization output
Voltage withstand test
ldentify the strength of insulation of electrical equipmen
Touch Screen Inspection
Detect whether the screen is sensitive to touch
High temperature test
Testing for compliance in constant highor low temperature environments
Constant temperature test
Whether the standard is met in a constant temperature
Products Description
|
LCD panel( IPS screen) |
|
|
Panel size |
10.1'' 10.4" 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' |
|
Native Resolution |
1280*800,1024*768,1280*1024,1920*1080 |
|
Brightness (cd/m²) |
250 ~1000 cd/m2 |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

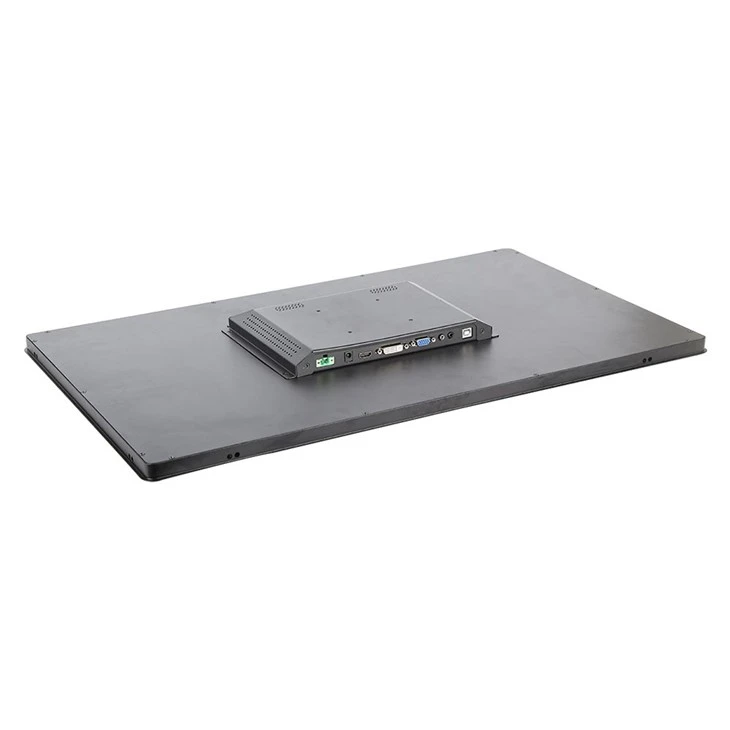

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC12V(DC9~36V optional) |
|
Power consumption |
≤60W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 2pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
|
Our Advantage |
More than 14 years in Industrial intelligent display field |
