Applications:
01
· Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
02
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
03
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
04
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
05
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
06
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
07
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Model: YT27PC

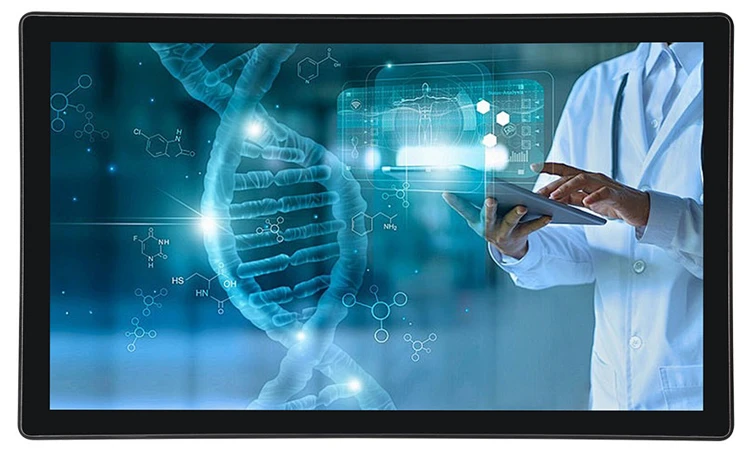

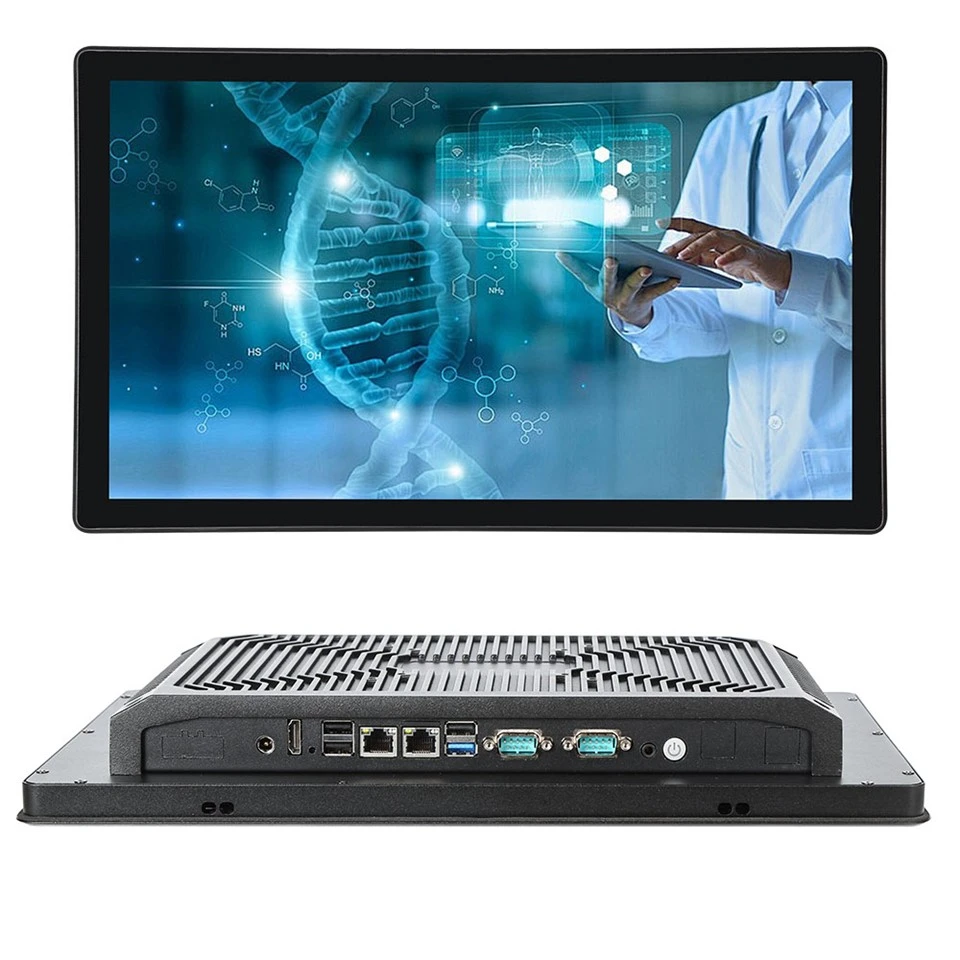

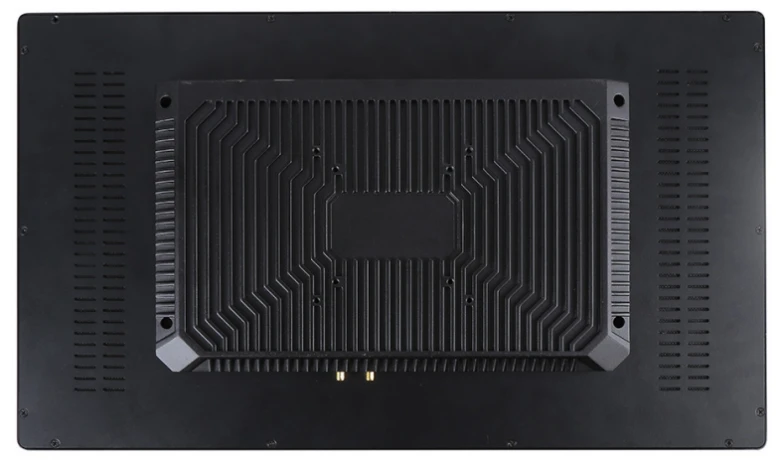

Appearance
Specification
|
Bestview 27 inch touch screen panel pc |
|
|
PC |
|
|
CPU |
Inter Core i5-8th Generation (others optional) |
|
Memory |
8GB DDR3, ( 4GB Optional;Max. 16G) |
|
Hard Drive Capacity |
128G SSD |
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB,256GB |
|
HDD: 320GB,500GB,1TB |
|
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|
Wireless Network |
WIFI |
|

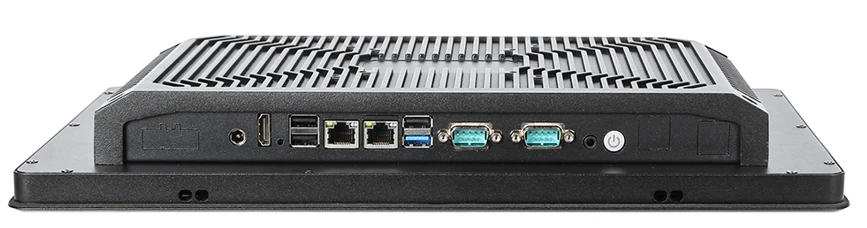

I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|
Opetation System |
Preinstall test version Windows 7/8/10/11,Linux |
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|
LCD panel |
|
|
Panel size |
27 Inch |
|
Resolution |
1920x1080 |
|
Brightness (cd/m²) |
250-300 cd/m2 |
|
Response time |
15ms |
|
Contrast ratio |
1200:1 |
|
View angle |
85°/85°/85°/85° (R/L/U/D) |
|
Touch panel |
|
|
Touch Type |
10 points projective Capacitive touch optional |
|
Touch Interface |
USB |
|
Response time |
<8ms |
|
Luminousness |
75-85% |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Accessories |
Power adapter, Wifi antenna |
|
Other |
|
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|
2) provide Floor standing to support the PC |
|
|
Certification |
CE, FCC,ROHS |
|
Warranty |
1 year warranty |

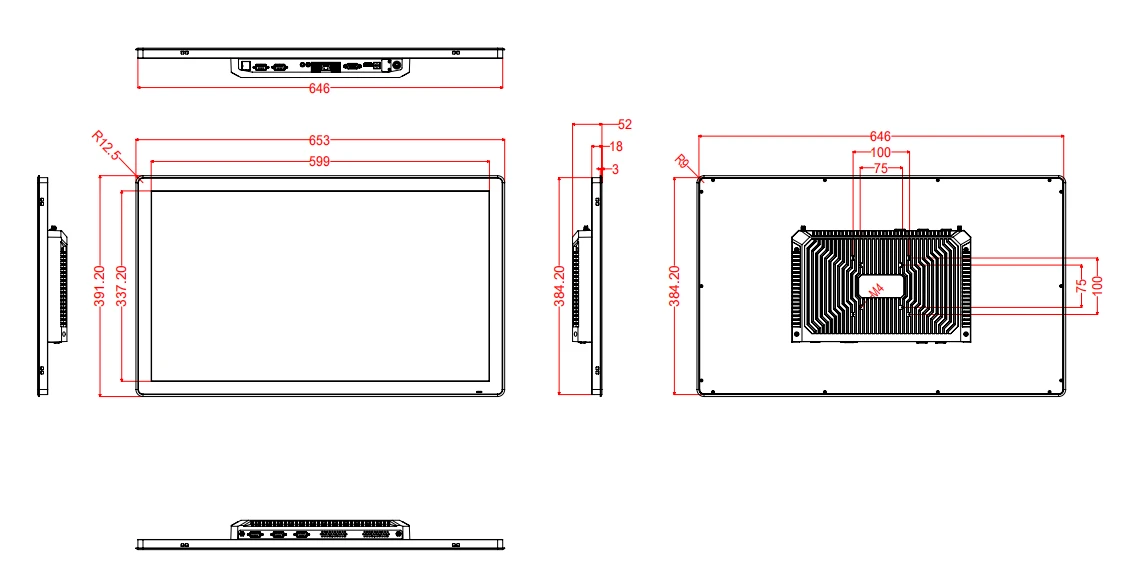

Drawing
