Why Outdoor Touch Displays Demand Industrial-Grade Panels Over Ordinary Panels
Outdoor touch displays require industrial-grade panels rather than ordinary consumer-grade panels due to extreme environmental challenges and demanding operational requirements. Below are the critical reasons:
1. Harsh Environmental Survival
Extreme Temperature Tolerance (-40°C to 85°C):
Industrial panels use wide-temperature liquid crystals, thermal-resistant adhesives, and robust power components to prevent freezing or overheating.
Ordinary panels may suffer slow response times, image retention, or permanent damage in extreme cold/heat.
IP65/IP67 Sealing (Dustproof & Waterproof):
Industrial displays resist rain, snow, dust, and humidity with sealed enclosures and gasket protections.
Ordinary screens lack proper sealing, leading to moisture ingress, corrosion, or electrical failure.
2. Unmatched Durability for Outdoor Abuse
Impact & Vandal Resistance:
Industrial screens feature chemically strengthened glass (like Gorilla Glass), aluminum/magnesium alloy frames, and anti-shatter films to survive accidental drops or deliberate impacts.
Ordinary panels use thin glass and plastic bezels, making them prone to cracks in high-traffic or public areas.
24/7 Continuous Operation Capability:
Industrial-grade backlights (LED or high-efficiency CCFL) support 50,000+ hours of non-stop use without brightness decay.
Consumer panels degrade quickly under prolonged operation due to overheating and component stress.
3. Sunlight-Readable Display Performance
Ultra-High Brightness (1000–3000 nits):
Industrial displays combat direct sunlight with high-luminance LEDs and optical enhancements.
Ordinary screens (200–500 nits) appear washed out and unreadable outdoors.

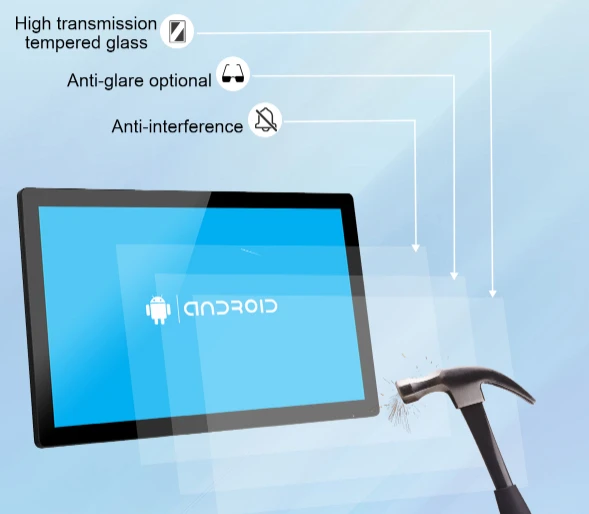

Advanced Optical Treatments:
Industrial panels apply anti-reflective (AR) coatings, optical bonding (no air gap), and circular polarizers to minimize glare.
Consumer displays lack these treatments, suffering from severe reflections and poor visibility.
4. All-Weather Touch Reliability
Rain, Glove, and Contaminant Resistance:
Industrial touchscreens (projected capacitive, infrared, or rugged resistive) work flawlessly with wet fingers, gloves, or dirty surfaces.
Ordinary touchscreens (basic capacitive/resistive) often fail in rain or with slight obstructions.
Smart Touch Rejection Algorithms
Industrial controllers ignore false touches from raindrops, insects, or debris, ensuring precise input.
Consumer touchscreens frequently misregister touches in outdoor conditions.
5. Long-Term Reliability & Cost Efficiency
Extended Service Life (5–10+ Years):
Industrial-grade components (UV-resistant coatings, anti-corrosion PCBs) prevent yellowing, delamination, and circuit degradation.
Ordinary panels deteriorate rapidly outdoors, often failing within 1–3 years.
Modular & Field-Serviceable Design:
Industrial displays allow easy replacement of damaged parts (touch layer, backlight, etc.), reducing downtime.
Consumer screens are disposable units, requiring full replacement upon failure.
Industrial panels undergo stringent testing for:
MIL-STD-810G (military-standard shock/vibration resistance)
IK09/IK10 (impact protection against vandalism)
UL/cUL, CE, and ATEX (for hazardous environments if needed)
Ordinary screens are not certified for such extreme conditions.
