Why Outdoor EV Charging Stations Need Optical bonding Touch Monitor&PC

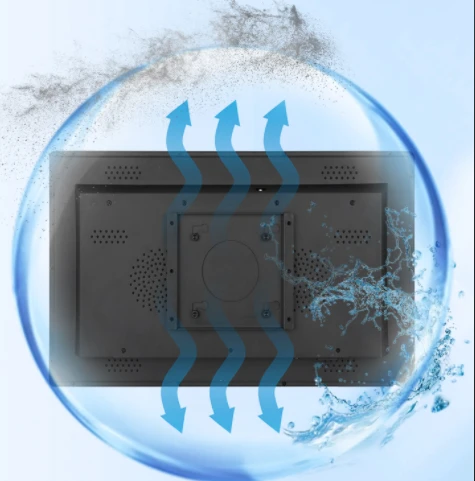

1.Enhanced Durability for Harsh Environments
Enhanced Durability for Harsh Environments

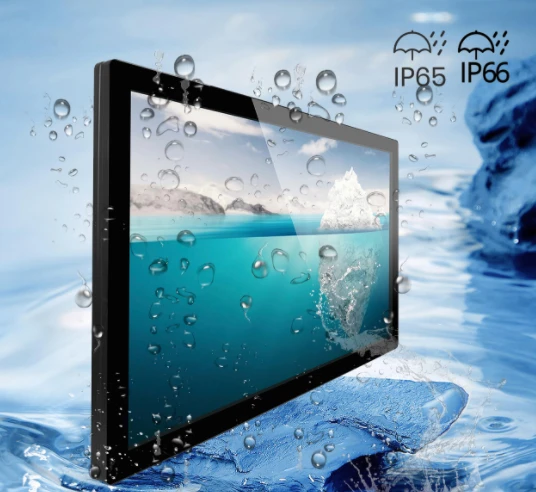

a.Dust/Water Resistance (IP Rating)
b.Non-laminated displays have air gaps between layers, allowing moisture and debris ingress. Full lamination uses optical clear adhesive (OCA) to seal all layers, achieving IP65/IP67 ratings-critical for rain, snow, and dust protection.
2. Sunlight Readability
Reduced Reflection & Higher Brightness
01
Air gaps in non-laminated screens cause light refraction, worsening glare. Fully laminated displays:
02
Increase light transmission (>90%)
03
Support high brightness (≥1000 nits)
04
Use anti-glare coatings for clear visibility under direct sunlight.
05
3. Mechanical Robustness
a.Impact Resistance

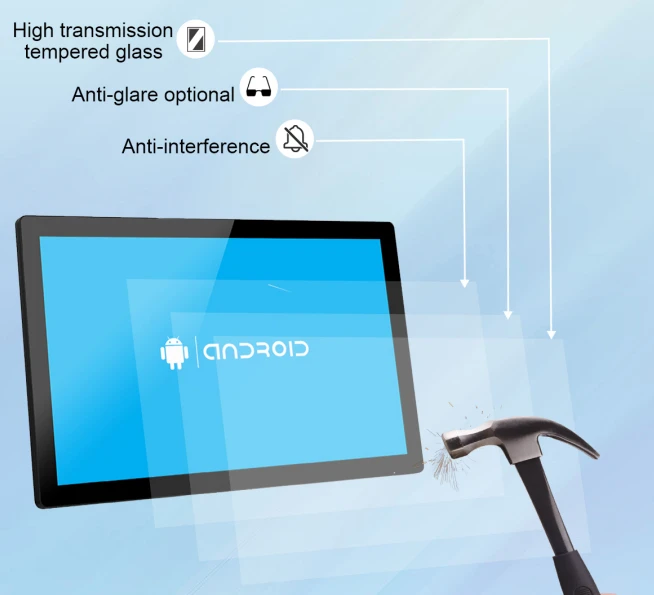

b.Lamination bonds layers (touch panel, display, cover glass) into a monolithic structure, passing IK08+ impact tests-resisting hail, vandalism, or accidental hits.
Thermal Stability
c.Thermal Stability

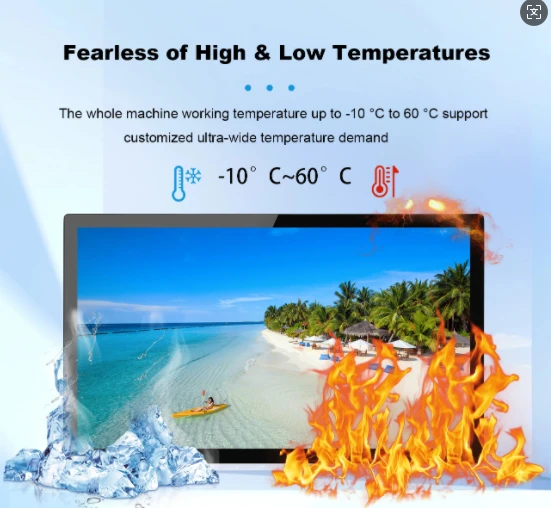

d.OCA materials withstand -30°C to 70°C, preventing delamination in extreme temperatures.
4. Touch Performance
Faster Response & Accuracy
Eliminating air gaps reduces touch signal distance, improving:

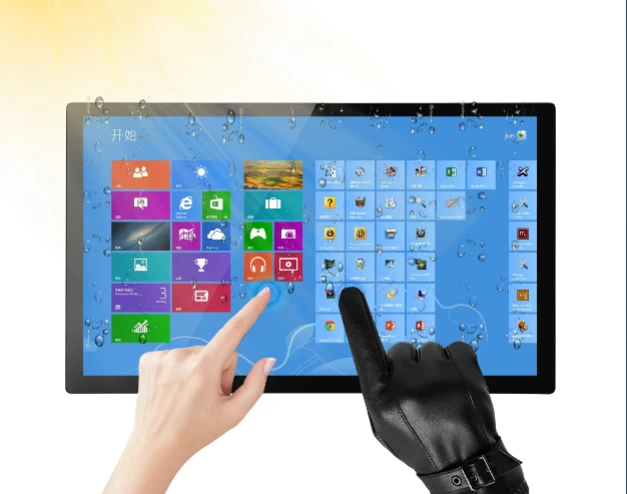

Glove/wet-touch operation

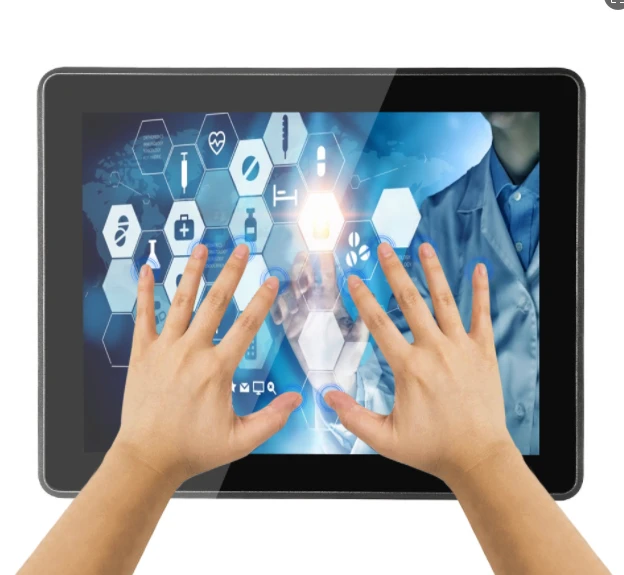

Multi-touch precision (critical for user input errors).
5. Long-Term Reliability
Prevents Internal Corrosion
Sealing blocks oxygen/humidity, slowing OLED/LCD degradation (5-10-year lifespan).
Lower Maintenance Costs
Minimizes failures from environmental damage (e.g., fogging, dust accumulation).
6. Compliance & Safety
a.Meets Standards
IEC 62196/GB 18487 mandates outdoor displays to resist environmental stress. Full lamination simplifies certification.
b.Explosion Risk Mitigation
Sealed design reduces spark/flammable dust ingress in high-voltage areas.
c.Cost-Benefit Comparison
AFeature Fully Laminated Non-Laminated
Weatherproofing ✔️ IP65/IP67 ✖️ Vulnerable
Sunlight Visibility ✔️ Low reflection ✖️ High glare
Touch Sensitivity ✔️ <5ms latency ✖️ >20ms latency
Durability ✔️ IK08 certified ✖️ Prone to cracks
Cost ✖️ +20-30% ✔️ Cheaper
d.Implementation Notes
Recommended: GG (Glass-Glass) capacitive touchscreens for best durability.
Budget Option: Partial lamination + tempered glass (requires frequent cleaning).
Extreme Climates: Specify salt spray resistance (per ASTM B117) for coastal areas.
