TTL vs RS-232: Key Differences & Motherboard Support
Electrical Characteristics
TTL:
Voltage levels: 0V (low), +3.3V/+5V (high)
Single-ended signaling
Shorter distance (typically <1.5m)
RS-232:
Voltage levels: +3V to +15V (low), -3V to -15V (high)
Differential signaling
Longer distance (up to 15m)
Hardware Interface
TTL:
Uses simple GPIO pins (TX, RX, GND)
Common on microcontrollers and SBCs

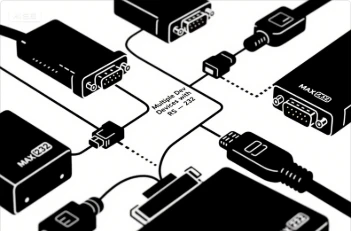

RS-232:
Requires DB9 or DB25 connectors
Needs line drivers (e.g., MAX232)
Motherboard Support
A. TTL Support:
Most modern motherboards DON'T have direct TTL headers
Common on:
Raspberry Pi (GPIO header)
Arduino boards
BeagleBone
ESP32/ESP8266 development boards
Can be accessed via USB-TTL converters (CP2102, CH340G, FTDI)
B. RS-232 Support:
Traditional motherboards (pre-2010) often had built-in RS-232 ports
Modern motherboards may include:
Dedicated COM port (usually DB9)
Internal header (typically 9-pin)
USB-to-RS232 adapter support
Common on:
Industrial PCs
Server motherboards (Supermicro, ASUS WS series)
Some high-end consumer boards (ASUS Pro series
How to Check Your Motherboard
For TTL:
Look for GPIO headers (usually 2.54mm pitch)
Check specifications for "UART" or "serial header"
For RS-232:
Physical DB9 port (back I/O panel)
Internal COM header (check motherboard manual)
BIOS settings may show serial port options
Workarounds for Modern Systems
TTL:
Use USB-to-TTL converters (widely available)
RS-232:
Use PCIe serial cards or USB-to-RS232 adapters
Note:
Many modern consumer motherboards have removed native RS-232 support to save space, while TTL access typically requires special headers or external adapters. Industrial and embedded systems are more likely to include both interfaces natively.
