Industrial X86 Motherbaord Intel Celeron J4125 is a fanless, low consumption quad-core processor, support DDR4 RAM
The main features of Industrial Mini ITX Motherboard ITX40D are as follows:
1. Integrated Intel® Celeron J4125 2.0GHz quad-core processor, compatible with the full range of Intel® Gemini Lake CPUs;
2.1* SODIMM slot, supports single channel 2400MHz DDR4 memory, up to 16GB;
3. Support VGA, HDMI, LVDS or eDP synchronous/asynchronous three displays;
4. Can support 2 Gigabit networks;
5. Can support 2 Mini-PCIe (WIFI/4G) and 1 MSATA;
6. Can support 8 USB interfaces;
7. Built-in 6 RS232 serial ports, optionally supports 4 RS485;
8. No fan for heat dissipation, and can be made into a closed machine to be dustproof and moisture-proof;
9. Supports wide temperature operation of -20~60 degrees
10. Support AT and ATX mode switching, 12V DC power supply;

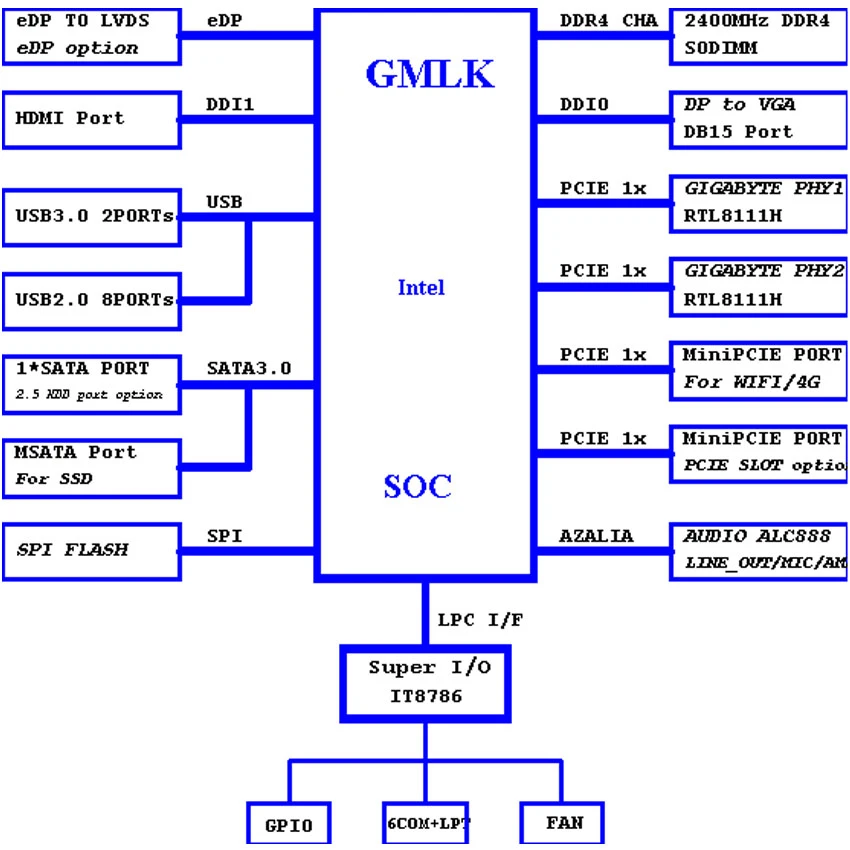

Mainboard Frame Diagram
Industrial motherboard is an embedded computer characterized by reliability, stability, and industrial temperature range. It is widely used in fields such as industrial control, automation, data acquisition and network communications
Mini-ITX has a smaller board size and lower footprint, so it can reduce the size of the chassis and apply it to customer solutions, such as mounting on a monitor or in an environment with limited space. Mini-ITX embedded boards make it easy and fast to develop industrial computing solutions. In addition to being deployed in a small chassis the size of Mini-ITX, it is also compatible with ATX and micro-ATX chassis without changing the I/O baffle. Mini-ITX embedded motherboards are ideal for applications such as industrial automation, medical, self-service kiosks and entertainment equipment.
FAQ
Q: Are you a trading company or factory?
A: We are a professional industrial Panel PC/monitor/Android touch panel PC manufacturer, Established more than 14 years.
Q: What's Minimum Order Quantity?
A: 1 pcs sample. welcome to test our sample first and then place bulk order.
Q: How long is your Lead Time ?
A: Different quantity with different production time.regular product with 7-10 days, customized with 15-25 days around.
Q: What's your Payment Terms?
A: TT or Paypal, Western Union.
We also welcome to place Trade Assurance order on Alibaba.
Q: Do you give any discount?
A: We surely try our best to help you get the best price and good service at the same time.
Q: Do you support OEM / ODM?
A: Yes, pls let us know your detailed requirements then we can provide you the solution.
Motherbaord Specification
|
CPU |
Integrated Intel® Celeron J4125 2.0GHz quad-core processor, TDP 10W Compatible with all Intel® Gemini Lake CPU series |
|
RAM |
1* SODIMM slot, supports single channel 2400MHz DDR4 memory, supports up to 16GB (default) |
|
Onboard LPDDR4 4G/8G memory (optional) |
|
|
Graphics |
Integrated Intel® UHD Graphics 600 core graphics card |
|
1*VGA interface, 1*HDMI interface, 1*LVDS or eDP interface (default is LVDS) |
|
|
Support VGA, HDMI, LVDS or eDP synchronous/asynchronous three displays |
|
|
Network |
1* Realtek RTL8111H Gigabit network card (2 networks optional), supports network wake-up/PXE |
|
storage |
1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
|
1* 2.5-inch hard drive interface (optional, choose one from the 7pin SATA3.0 interface) |
|
|
1* mSATA3.0 slot (long card) |
|
|
1* Onboard 64GB or 128GB eMMC (optional) |
|
|
Audio |
Onboard ALC888/ALC662 6-channel high-fidelity audio controller, supports MIC/Line-out, power amplifier (supports 2 ohm 5W dual channel) |
|
Expansion |
1* Mini-PCIe slot (supports both half card and long card), supports WIFI/4G module (4G optional, hardware adjustment is required to support 4G) |
|
1* Mini-PCIe slot (half card, optional), supports WIFI module |
|
|
1* PCIe x1 SLOT slot (choose one from half-card Mini-PCIe, optional) |
|
|
Backplane I/O interface |
1* HDMI |
|
1* VGA |
|
|
2* USB 2.0(When these 2 USB2.0 are valid, the built-in can only support 4 USB2.0) |
|
|
2* USB3.0 |
|
|
1* RJ-45 Gigabit network interface (LAN2 and USB2.0 are optional) |
|
|
1* Line out interface (green), 1* MIC interface (red) |
|
|
1* 12V DC power input |
|
|
Built-in I/O interface |
1* JHDMI interface 2*8Pin (optional) |
|
1* JVGA interface 1*12Pin (same signal as DB15) |
|
|
1* LVDS interface 2*15pin, supports dual channel 24bit (choose one from eDP, default) |
|
|
1* Screen backlight power supply interface 1*6pin |
|
|
1* eDP interface 2*15pin (choose one from LVDS, optional) |
|
|
6* USB 2.0 interface 2*5Pin (when supporting single network, 4 USB2.0 are supported; when 4G needs to be supported, 1 USB2.0 interface is invalid) |
|
|
1* Front audio interface 2*5pin |
|
|
1* Power amplifier interface 1*4pin |
|
|
6* COM interface (COM1~2 supports RS485, COM1/2 9P is powered, optionally supports 4 RS485) |
|
|
1* LPT |
|
|
1* 4pin ATX power interface |
|
|
1* Hard drive power supply interface |
|
|
1* Front panel switch button and indicator light interface 2*5Pin |
|
|
Fan interfaces |
Fanless cooling design, reserved 1*4pin CPU fan interface, reserved 1*4pin system fan interface |
|
GPIO |
Support 4 input and output GPIO |
|
BIOS |
64Mb Flash ROM |
|
Watchdog |
Support hardware reset function (level 256, 0~255 seconds) |
|
OS |
Windows 10/Linux |
|
Power |
DC 12V |
|
Operating temperature |
60℃～-20℃ |
|
Storage temperature |
-20℃～70℃ |
|
Working humidity |
5%~95% @ 40° C, non-condensing |
|
Measurement |
170mm x 170mm |
