Product Introduction

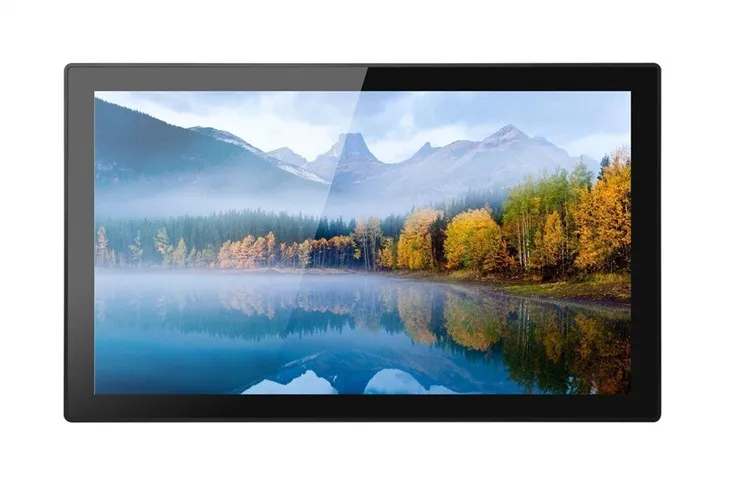

Linux Industrial PC monitor computer touch screen pc monitor ips panel touch screen computer display
Capacitive Touch Industrial Grade A+Screen True Flat Design
10 Points Capacitive Touch,6.5ms Quick Response,IP65/IP66 Waterproof,16.7M colors,Wide Viewing Angle
Support 24 hours *7 days uninterrupted operation
-19 inch 10 points projected capacitive(PCAP) touch screen
-16:10 screen ratio,1440*900 resolution
-IP65 front panel dust proof and waterproof
-Bestview industrial PC has multiple industrial touch panel sizes
-Accept Customization
Touch Sensitive Stable Operation
This industrial open frame touch panel adopt the advanced LCD display and is available in projection capacitive 10-points touch or non touch. It is suitable for variety of environments and applications, such as self-service terminal,HR market, O2O smart device, robot equipment, etc.
Optional Function:High Brightness,Light Sensor,Anti Glare,Anti UV,Anti Privacy
Using LED backlight technology, make sure colourful pictures, highbrightness and good contrast, wide angle viewing, longer life time.Industrial grade A+ LED,Different Resolutionfor options,Lifetime>50.000hs,Regular Brightness: 300nits(OEM 800/1000/1500nits),Wide Viewing Angle: 150/150160/160(0EM 178/178)
Ultra-thin and highly efficient heat dissipation
|
lP65 IndustrialGrade Design,effectively preventdust and surface water
This IP65/IP66 industrial touch panel PC with a touch screen is designed with good-looking and thin front bezels, well for embedding into the cabinet, console, and other equipment. It comes with 10 point capacitive touch screens, also offers a non-touchscreen for some customers. And screen customization options such as explosion-proof, anti-glare, 178° full viewing angle, high resolution, TFT panels and high brightness, wide temperature, and wide voltage operation. With flexible I/O and high reliability for machine automation, factory automation, and other harsh indoor or outdoor applications. |
High Temperature Test Screen
Controllable high temp test -10°C~60°CWorking stable even in harsh environments
The Ip65 industrial touch panel pc fit most manufacturing scenario with all in one design, industrial grade motherboard and fanless heating-dissipation constructure to meet extreme temperature, vibration and shock tolerance.
Ip65 industrial touch panel pc has stable operation in a wide temperature range , -10℃ to 60°C , and come with a dual fan cooling system designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for vibration prone, hot, harsh environments.
Other
| Industrial ouch panel pc is ideal for industrial and commercial applications, suitable for various kinds of application, Automatic system, Public Places, Business Organizations, Financial Organizations, Non-profit Organizations, Real Estate Property, Entertainments. |
1.1xDevice
2.1xWall Mount Bracket(Optional)
3,1xPower Supply
4.1xPower Adapter
5.4xEmbedded Screws
6.1xWiFi Antenna
Capacitive touch and Non touch Available
1.12.1 inch industrial touchscreen monitor with PCAP Touch
2. Support single touch and multi touch,non touch Available
3. Touch with gloves is available
4. Touch response time <8ms
MAIN CATEGORIES
Bestview is a national high technology company with professional R&D ,produceand sell industrial touch monitor, All in one PC and Mini Pc. With the powerful technologyadvantage and rigorous quality control process, Bestview already got certifications of CEKCC, FCC,ROHS,IP66,HDMl and iso9001. Bestview has won the favorite of many customers
from abroad.
why choose us
15+ Years Touch Solution Provider
MOQ
Low MOQ of 1pcs for customization
Productionline capacity
in-house Touch Monitor/Touch Panel PC Production3000㎡factory,100 workers,7semi-automaticproduction lines,annual delivery quantity 120K
Product Testing
Leading service robotics brand with products sold in more than
R&D
20 R&D and after-sales engineers to provideprofessional technical support
Customer Feedback
0%lot relect rate,99%customer satisfaction85% repeated order
Price Advantage
Iuropean /Korea/Taiwan equivalent qualitywith lower price
Application scenario
Smart Medical terminal
Medical infrastructure and IT infrastructure through information technology Integration.equipped with smart medical Yang Fanset sail.
Smart Factory MES system
In smart factories, FWC products are human-machine in combination with MES system.nteractive,Production Kanban provideshardware technology landing office to help the industry Optimize Operations.
iOT Internet of Things
With warehouse management system,throughRFlD tag technology, cooperate Vehicle.mounted terminal and PDA terminal are theentire intelligent warehousing and logisticssystem.Provide reliable quarantee
Automatic control
With the upper software to achieve automaticcontrol
Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bagand foam wrapping
2. Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPs,FedEx,TNT,Air freight,LCL/FCL Sea freight
Company Introduction
Bestview is a national high technology company, professional R&D, produce and sell bro adcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE,KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.Bestview main partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has alreadyapplied every photography field in the world, industry generation four, rail way traffic, industry application etc. The market has spread Europe, America, Southeast Asia and other more than 60 countries.
15+ Years Touch Solution Provider
3000+ Square Meter Workshop
Serving 50+ International Markets
PROFESSIONAL R&D TEAM
Bestview alreadygot certifications of CE, KCC, FCC,ROHS,IP66,HDMl and iso9001. Bestview has won thefavorite of many customers from abroad.
3000+
Square Meter Workshop
20000+
Units sold each year
40+
certification
50+
Countries
Certifications
Create a comprehensive solution for efficient human theft manag
HDMI
CE
ROHS
IP66
IP65
Question and Answer
Common Problem
Are you a trading company or factory?
We are a professional industrial Panel PC/monitor/Android touch panel PC manufacturer, Established more than 15 years
What's Minimum Order Quantity?
1 pcs sample. welcome to test our sample first and then place bulk order.
How long is your Lead Time ?
Different quantity with different production time.regular product with 7-10 days, customized with 15-25 days around.
Do you support OEM / ODM?
Yes, pls let us know your detailed requirements then we can provide you the solution.
ry dard righteous
First-class professional team for you to recommend products more in line with your needs. Perfect after-sale services exempt your worries.
Our address
No.5F, Building 24, Longbi Industry City, Bantian Street, Longgang District, Shenzhen City, Guangdong Province, China
Phone Number
+86-755-28447130
+8613632535154
sales@bestview.cc
Product Specification
|
Bestview Ip65 industrial touch panel PC |
YT15PC |
YT156PC |
YT17PC |
YT185PC |
YT19PC |
|
|
Motherboard |
Configuration |
Intel® Celeron J1900/J4125/J6412 Quad core |
||||
|
Upgrade 1 |
Intel@6th Core i3-6100 H |
|||||
|
Upgrade 2 |
Intel@7th Core i5-7300 H |
|||||
|
Upgrade 3 |
Intel@8th Core i7-8550 U |
|||||
|
Upgrade 4 |
I3 i5 i7 up to 12th Optional |
|||||
|
Storage |
Memory |
4GB DDR3 8GB Optional |
||||
|
SSD |
64GB, 128GB,256GB,512GB,1TB |
|||||
|
HDD |
500GB,1TB,2TB |
|||||
|
Interface |
WiFi, 3/4G module |
802.11b/g/n (optional), Support 3g/4g (optional) |
||||
|
HDMI |
1*HDMI output |
|||||
|
USB |
2*USB2.0(4* USB Optional) |
|||||
|
Network |
2*RJ45 with 1000 Base-T |
|||||
|
Com |
2* COM(RS232), can changed to RS485 or add more 2 to 4 RS232 |
|||||
|
Power supply |
1*DC12V Standard, 9-36V Optional(lock phoenix terminal) |
|||||
|
Audio output |
1*3.5mm audio |
|||||
|
Display |
Size(inch) |
15inch |
15.6inch |
17inch |
18.5inch |
19inch |
|
Screen type |
LCD screen with LED backlight |
|||||
|
Resolution |
1024*768 |
1920*1080 |
1280*1024 |
1920*1080 |
1440*900 |
|
|
Size(mm)(L)*(W)*(H): |
350×287*42.5 |
392.1×242*44.5 |
383.6×315.3*44.8 |
456.5×281*44.6 |
429×349.4*44.2 |
|
|
Contrast ratio |
700:1 |
700:1 |
700:1 |
1000:1 |
1000:1 |
|
|
Brightness |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
300cd/㎡ |
|
|
Screen ratio |
4:3 |
16:9 |
4:3 |
16:9 |
16:10 |
|
|
Structure |
Front and back cover |
Plastic front case, metal back case |
||||
|
Craft |
Front case groove design |
|||||
|
Color |
Black/white |
|||||
|
Heat dissipation |
Aluminum fin heat dissipation |
|||||
|
Panel indicator light |
Power state, hard disk state |
|||||
|
Touch screen |
Type |
Projected capacitive touch screen |
||||
|
Touch point |
10 point capacitive touch |
|||||
|
Response time |
＜8ms |
|||||
|
Accuracy |
＜3mm |
|||||
|
Transparency |
≥90% |
|||||
|
Protection |
The surface is coated with 1:1 PVC protective film |
|||||
|
Others |
Working environment |
-20℃～ 70℃; Humidity: 5%～ 95% |
||||
|
Storage environment |
Temperature: -20℃～60℃; Humidity: 5%～95% |
|||||
|
Installation ways |
Embedded/Panel Mount, Wall Mount(VESA75*75mm/100*100mm) |
|||||
|
Power consumption |
≤60W |
|||||
|
Warranty |
1 year warranty |
|||||
|
Accessories |
WiFi |
WiFi antenna |
||||
|
Bracket |
Wall mounted/Open frame; Open edge for embedding ,desktop bracket |
|||||
|
Adapter |
Power adapter |
|||||
