This professional application operates in direct outdoor sunlight, with a screen brightness of up to 1500CD/m ². Even in direct sunlight, the screen interface remains clearly visible, eliminating the troubles of outdoor environments and ensuring normal user operation.
Voltage instability environment
Wide voltage power supply, high surge protection, even unstable voltage ranging from 110V to 250V, the machine adapter will not fail and can operate stably

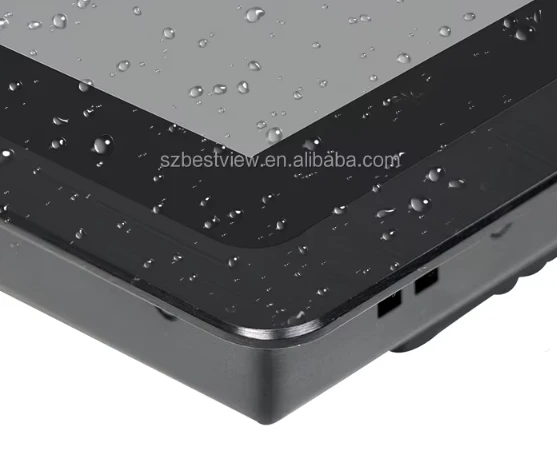

This flat surface has dust-proof and water-proof functions, which can effectively prevent water splashes, fog and dust from entering the machine interior, prevent condensation water from forming inside the display, and prevent leakage or even disconnection of the internal power transformer and other coils due to moisture.

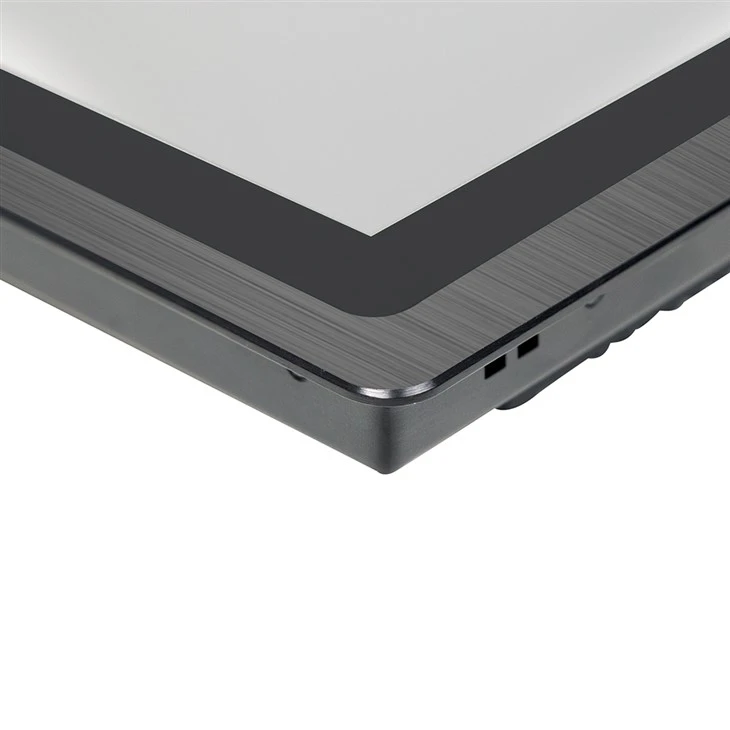

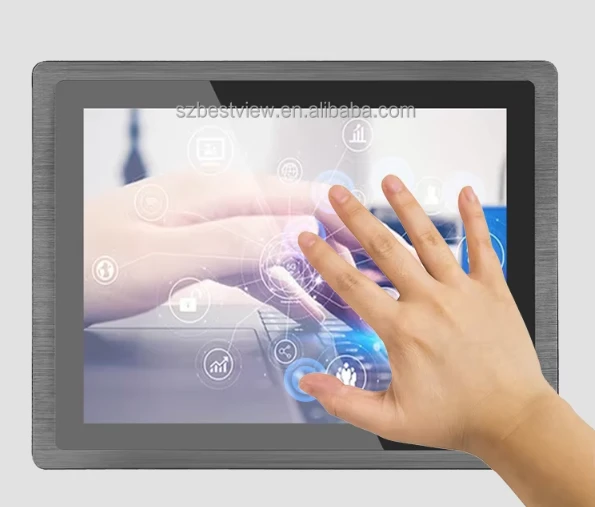

Anti-fingerprint touch screen
The screen glass can effectively isolate fingerprints, oil stains, etc., ensuring the sensitive touch of the machine
High-temperature tempering treatment can easily deal with daily bumps and scratches
|
LCD panel( IPS screen) |
|
|
CPU |
Intel® Celeron J1900 2.0GHz, Quad cores, fanless |
|
Intel® Core i3-3217U 1.8GHz dual cores, with fan |
|
|
Intel® Core i5-3317U 1.7GHz dual cores, with fan, i5-6th |
|
|
Memory |
8GB DDR3 ( Max. 32G) |
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB, 256GB |
|
HDD: 160GB,320GB,500GB,1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1×Realtek RTL 8111F Gigabit Ethernet controller |
|
Wifi |
Optional |
|
4G module |
Optional |
|

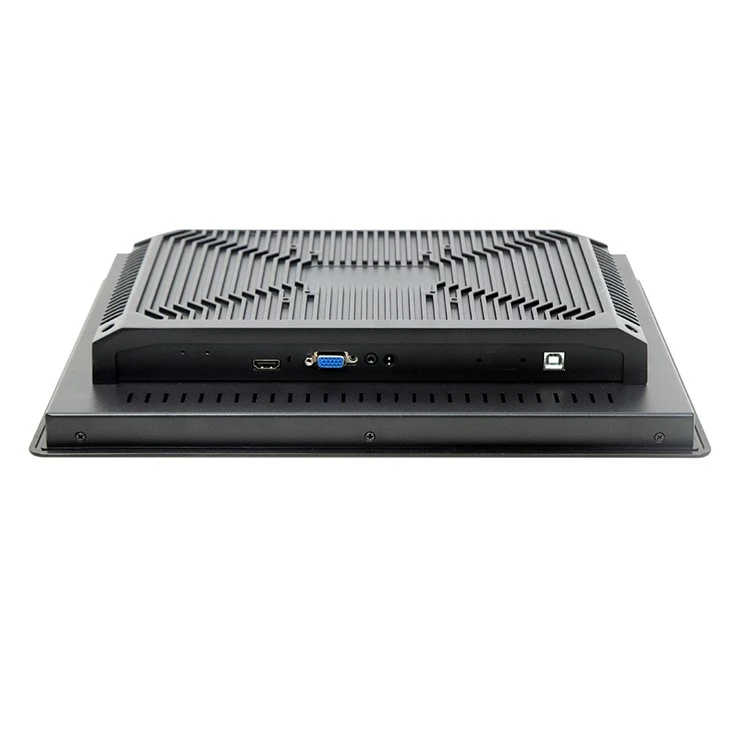

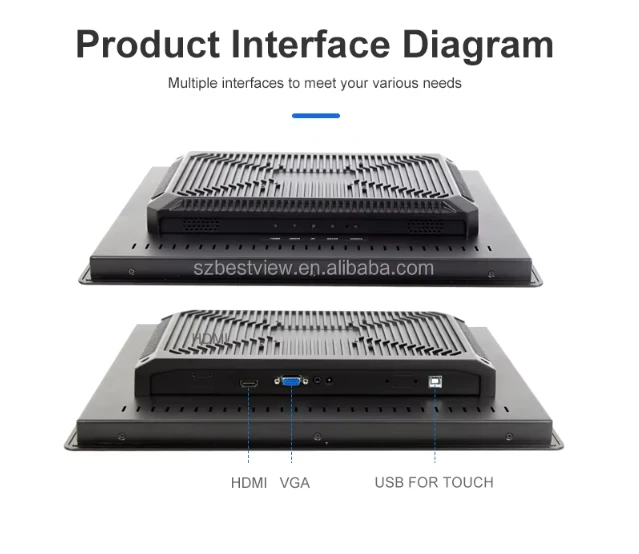

I/O Interface |
2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC |
|
Opetation System |
Windows 7/8/10/Linux |
|
LCD panel |
|
|
Panel size |
10.4" 12.1" 13.3"15" 15.6" 17" 18.5" 19" 21.5 Inch (16:9) |
|
Resolution |
1920X1080 |
|
Brightness (cd/m²) |
350 cd/m² |
|
Response time |
15ms |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
75-85% |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature range |
operating: -25 to 75°C, storage :-30 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Accessories |
Power adapter, wall mounting bracket |
|
Other |
|
|
Mounting (options) |
1) Wall brackets for wall-mounting, VESA 100×100mm |
|
2) Metal desl stander to support the PC |
|
|
3) Open frame mount kits( left and right side) to hold the PC |
|
|
4) Embedded installation, 1 sets screws provided |
|
|
Certification |
CE, FCC |
|
Warranty |
1 year warranty |
