01

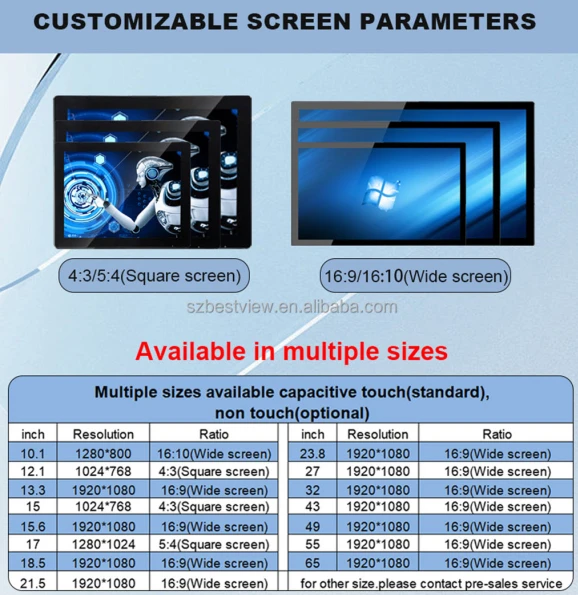

* All sizes are optional!
02
* Capacitive Touch/Resistive Touch/Infrared-Touch/Non-Touch optional!
03
* Many installation methods are available!
04
* Many interfaces, adapt to different devices!
05
* Ultra durable PCB board!
06
* Adapt to ultra-harsh environments!
07
* Support any type of OEM/ODM service!
08
* Low MOQ: 1 piece
09
* Warranty: 1 year!
Competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
01
• Thin front panel, suitable for embedded cabinet.
01
02

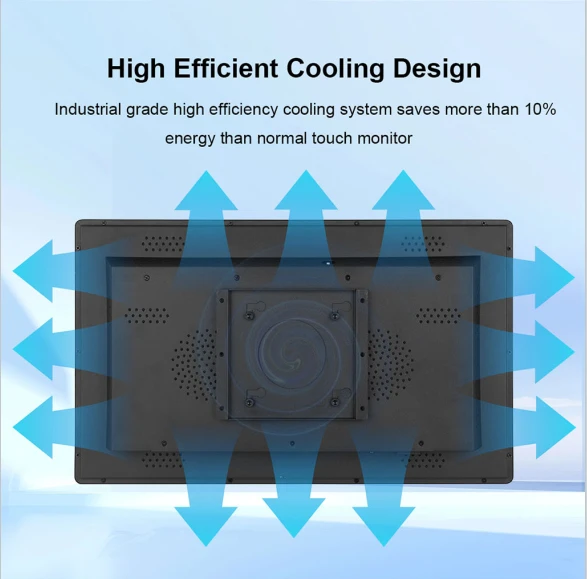

• Aluminium alloy shell, good mechanical properties, better performance of heat dissipation.
02
03

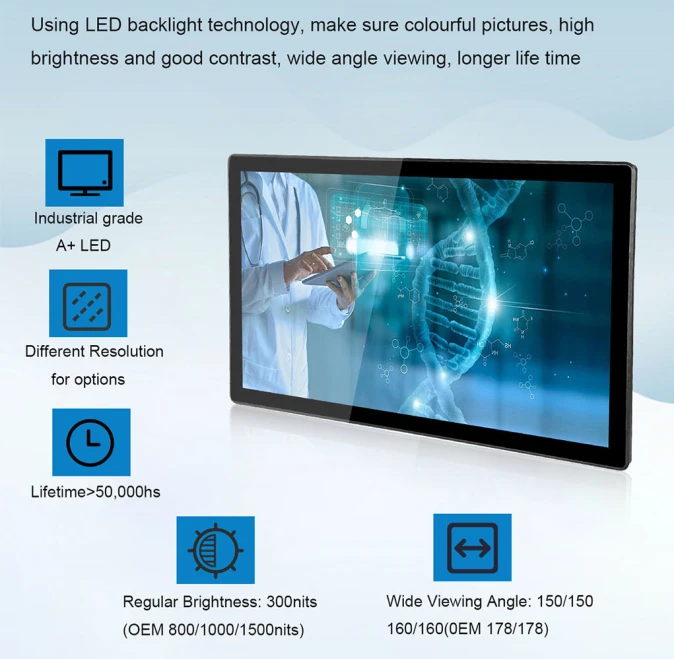

• Adopts industrial control HD LCD screen + LED backlight screen, highlight picture, perfect color display.
03
04
• Working temperature: -10~60 Celsius degree, (-4 ~158 Fahrenheit degree ), humidity range is 10%~90%.
04
05

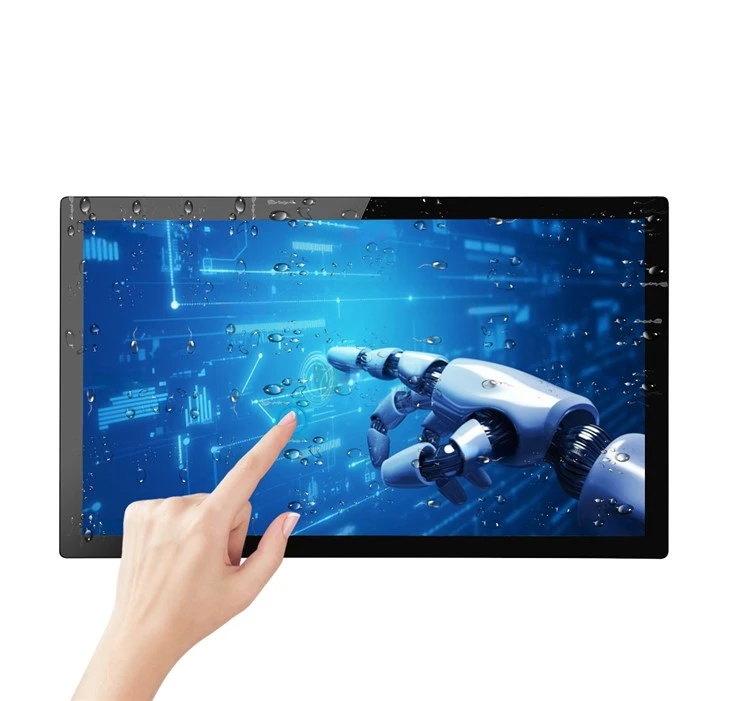

• Front IP65 rated waterproof and dust-proof, good for outdoor devices in harsh environments.
05
06
• Resistive touch screen, capacity touch screen, and non-touchscreen available.
06
07
• Triple protection: explosion-proof, flameproof, and moisture-proof.
07
08

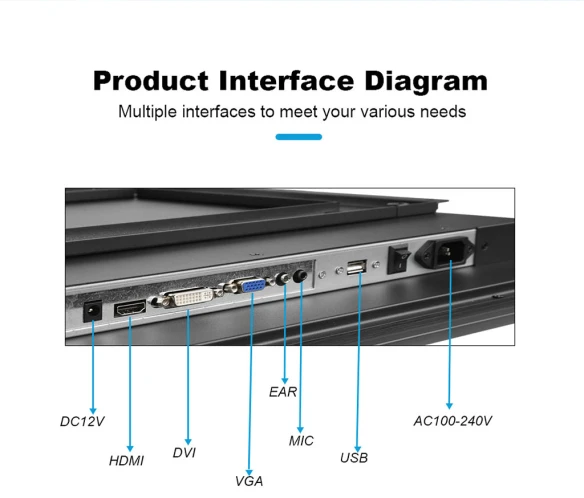

• Standard I/O interface: VGA, HDMI, DVI, automatic identification signal channel.
08
09
• Special design for DC power port with anti-shedding, and support DC cable optional.
09
10
• Support 7*24 hours long-time and all-weather operation without interruption.
10
11
• RTD2513BR shock resistance standard,well-protected during transportation, and mining equipment.
11
12
• Anti-static level of contact is 4KV, supporting customized MAX 16KV.
12
13
• Anti-surge design, it is proper functioning during instantaneous voltage rising into 280V.
13
14

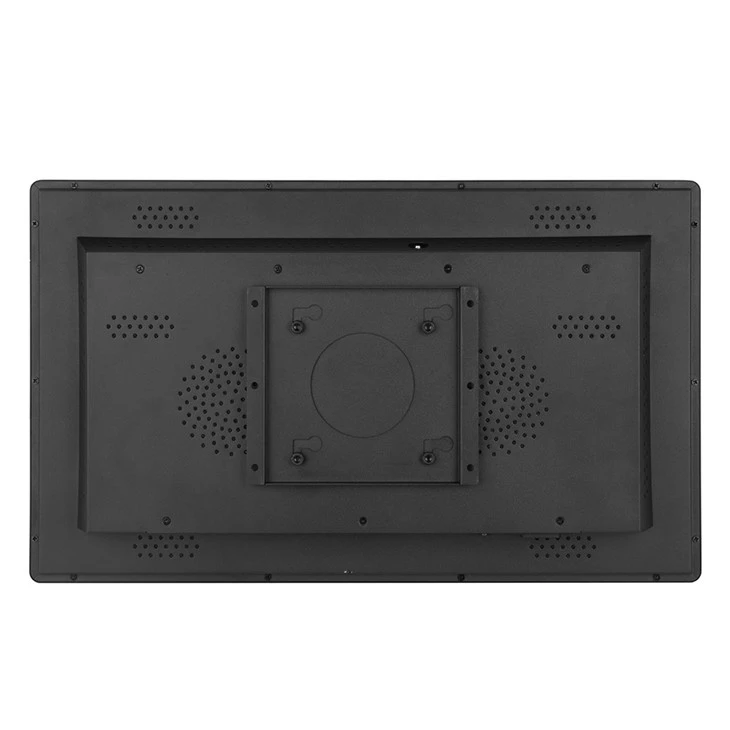

• Embedded mounting, wall-mounted, desktop, panel mount, VESA, and open frame for optional.
14
|

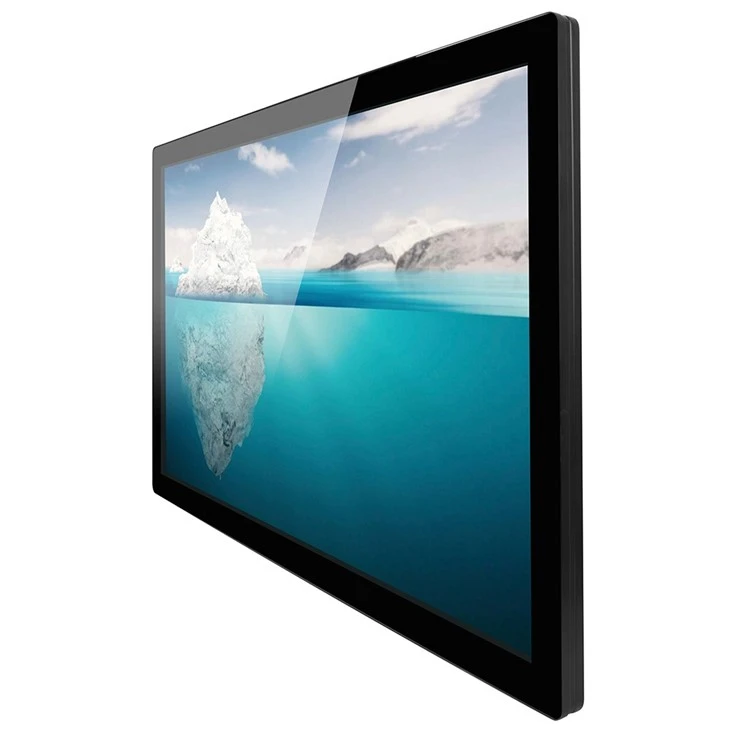

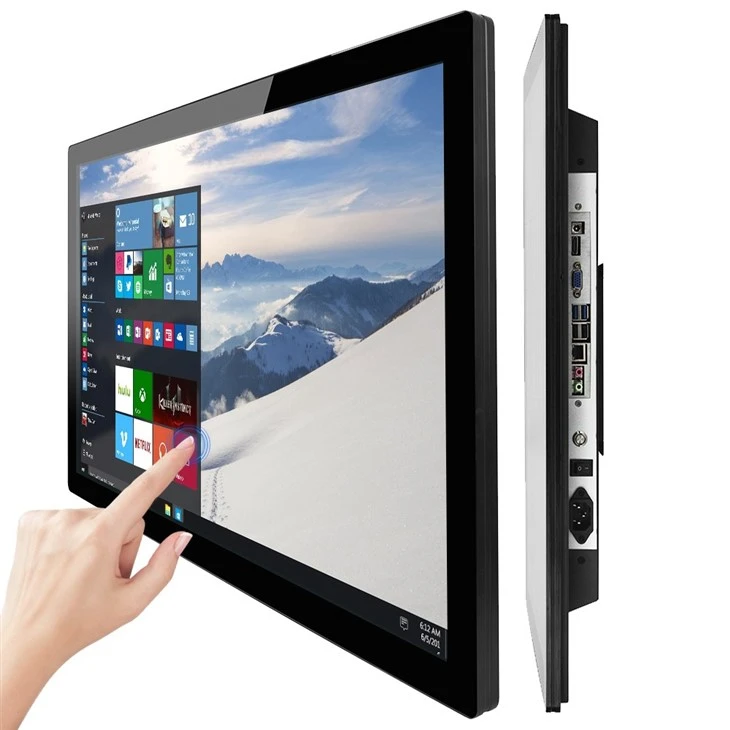

18.5 inch Industrial Touchscreen Monitor |
|
|
LCD panel( IPS screen) |
|
|
Panel size |
18.5" (16:9) |
|
Native Resolution |
1920*1080 |
|
Brightness (cd/m²) |
250cd/m2 |
|
Contrast ratio |
800:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|

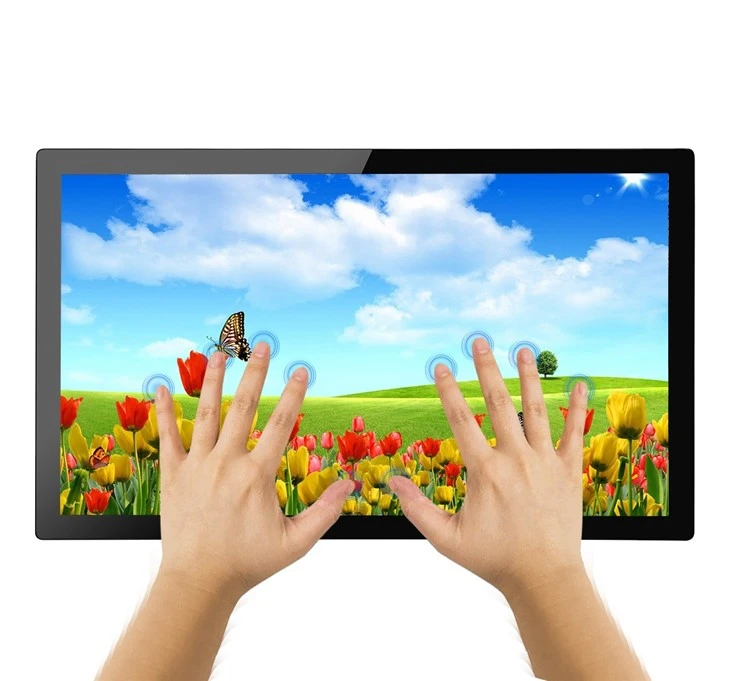

Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

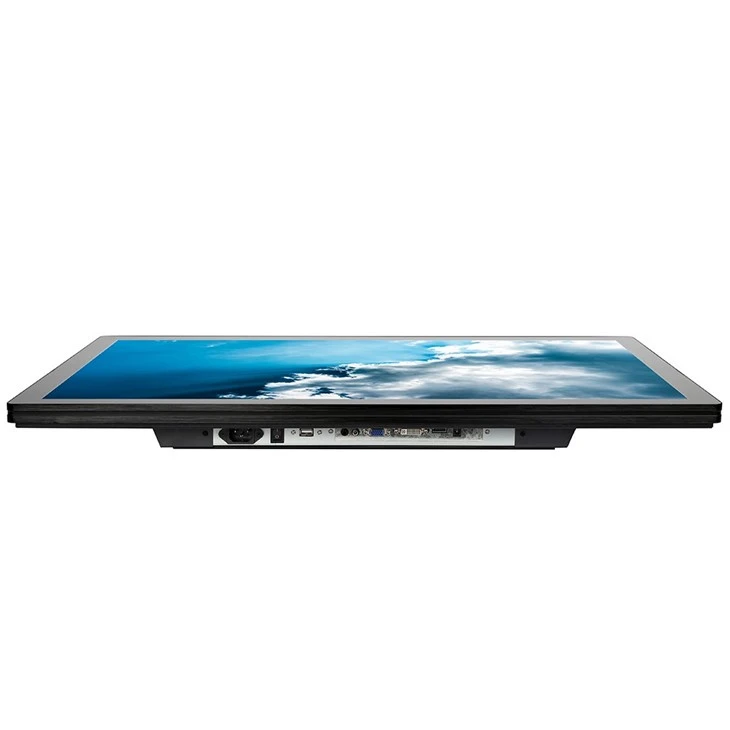

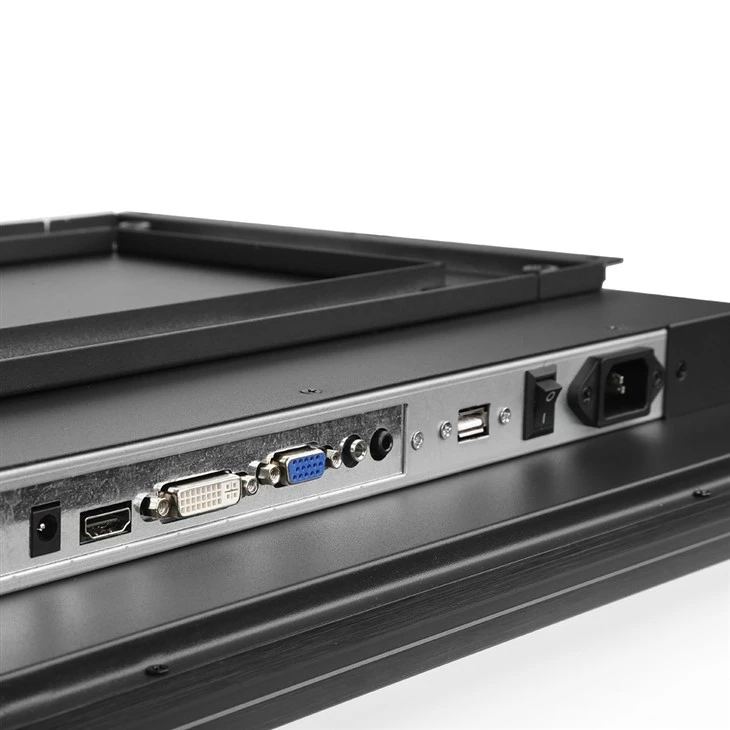

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤60W |
|
Operating Environment |
|
|
Temperature Range |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 2pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
|
Keywords |
Industrial touchscreeen monitor/industrial touch monitor/capacitive touch screen monitor |
