Product
|
10 Points Capacitive Touch Screen All In One/ Monitor
|
|||
|
Output(AIO pc)
|
Inside HMI/VGA output
|
|||
|
Input (touch monitor)
|
VGA,HMI, DVI input
|
|||
|
Touch function
|
Latest projected capacitive touchscreen, 10 fingers touch
|
|||
|
Response Time
|
< 5ms
|
|||
|
Touch effective recognition
|
> 1.5mm
|
|||
|
Max resolution
|
Default is 1920*1080P
|
|||
|
Brightness
|
≥300cd/m2
|
|||
|
Contrast
|
≥1200：1
|
|||
|
Compatible OS
|
Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP
|
|||
Feature:
01
1. Durable materials: Aluminum alloy frame & Metal back cover, Corrosion and oxidation resistance.
02
2. Simple Installation: Wall mounted / desktop stand / embedded etc installations, plug and play. No need to debug.
03

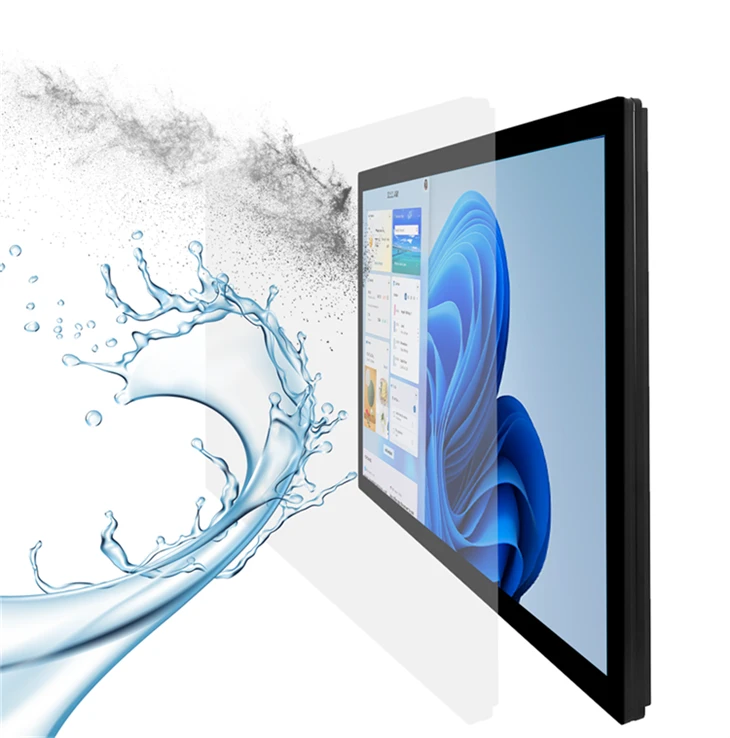

3. Structure crafts: Private mould design, pure flat and slim style, new backlight integrated structure, good sealing, surface IP65 waterproof.
04
4. Stable performance: Each unit undergoes multiple tests such as whole machine aging, temperature and humidity testing, static electricity detection, vibration, high voltage, touch click and display to ensure stable quality and support 7*24H work.
05
5. Strict quality control: The monitors have undergone multiple tests such as 48-hour ageing, electrostatic testing, vibration, voltage/electronic load test, voltage withstand test, touch/calibration test, controlled high temperature test, constant temperature and humidity test, controlled drop test.
06
6. OEM services：Flexible to add serial and USB ports (color,logo,4G module,packaging, etc).
|
LCD panel( IPS screen)
|
|
|
Panel size
|
15.6"18.5" 21.5" 23.8" 27" 32" 43"49" 55" 65" |
|
Native Resolution
|
1920*1080
|
|
Brightness (cd/m²)
|
250cd/m2 1000nits Optional
|
|
Contrast ratio
|
1000:1
|
|
View angle
|
89°/89°/89°/89° (R/L/U/D)
|
|
Touch panel
|
|
|
Touchscreen Type
|
10 points Projected capacitive touch
|
|
Touch Interface
|
USB
|
|

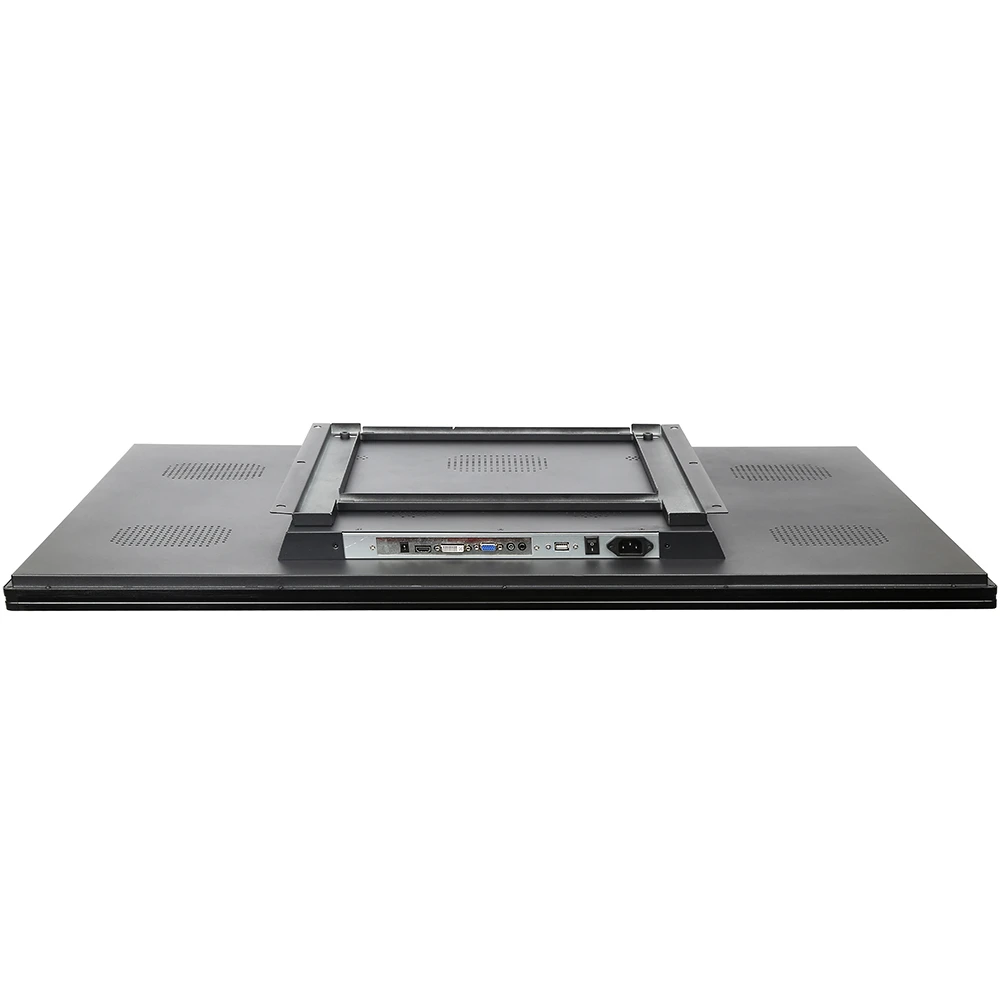

Signal Ports
|
|
|
VGA
|
1×VGA
|
|
USB
|
1xUSB for touch
|
|
HDMI
|
1xHDMI
|
|
DVI
|
1XDVI
|
|
OSD
|
|
|
OSD control
|
Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
|
|
Support OS
|
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect
|
|
Power Supply
|
|
|
External Power Supply
|
AC 100 - 240V
|
|
Working voltage
|
DC 12V DC9-36V Optional
|
|
Power consumption
|
≤60W
|
|
Operating Environment
|
|
|
Temperature Range
|
operating: -10 to 60°C, storage :-20 to 70°C
|
|
Relative humidity
|
operating: 10% to 90% , storage :5% to 90%
|
|
Packing Details
|
|
|
Packing detail
|
1pcs/box 2pieces/carton
|
|
Accessories
|
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional
|
|
Others
|
|
|
Warranty
|
1 year warranty
|
|
For Sample
|
Click here to contact us
|
|
Our Advantages
|
More than 15 years Experience in Industrial intelligent display field
|
