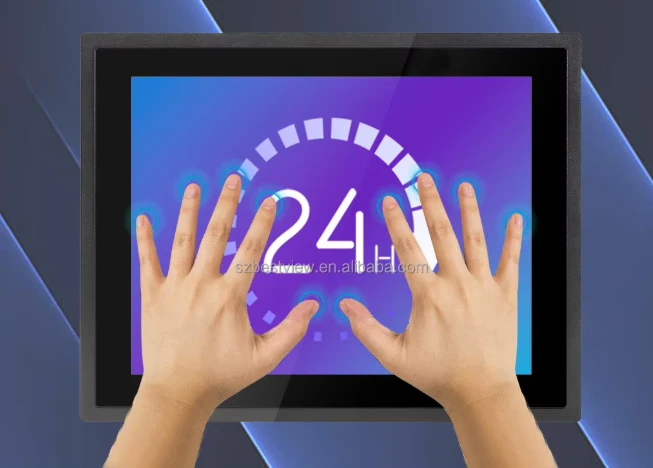

Introduction to Touch
Capacitive ten-point touch glass features high resolution, sensitive response, no stuttering or blind spots during touch, and high stability
Choose a Optical Bonding high-definition screen
Better display effect
The screen isolates dust and moisture
The screen is thinner and lighter.
Fully enclosed and all-aluminum

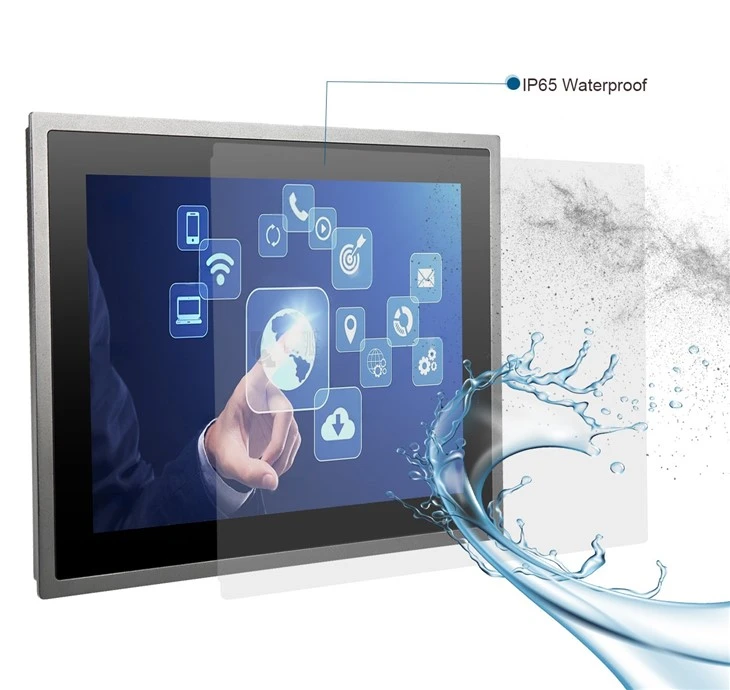

The fully enclosed design ensures normal operation even in harsh environments, with silent heat dissipation, dust-proof and salt spray-proof features

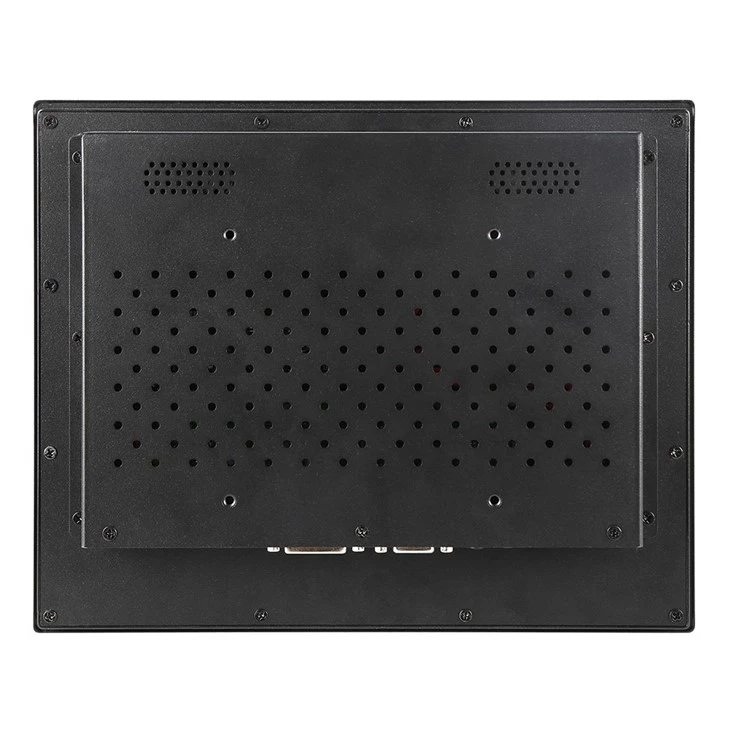

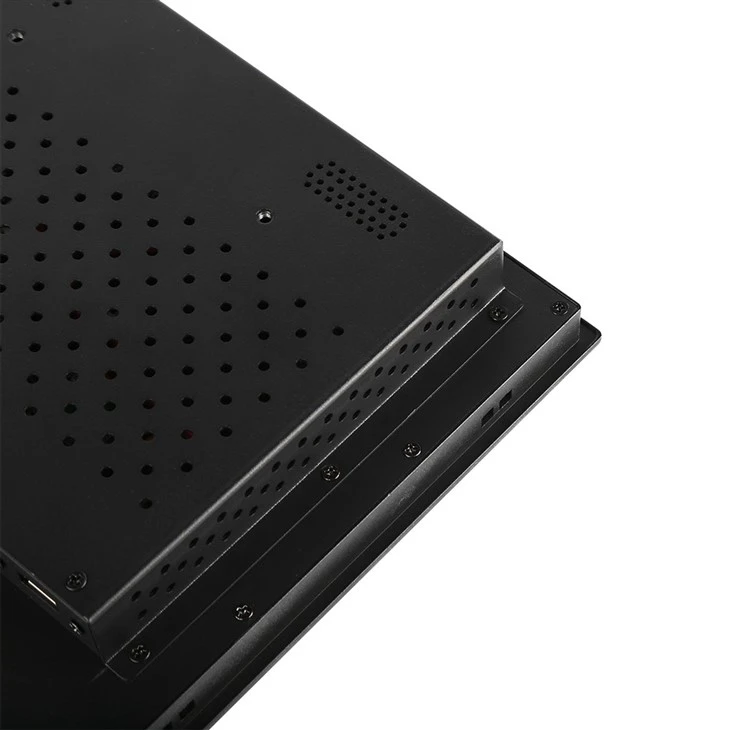

All-aluminum extruded back cover + oxidized appearance

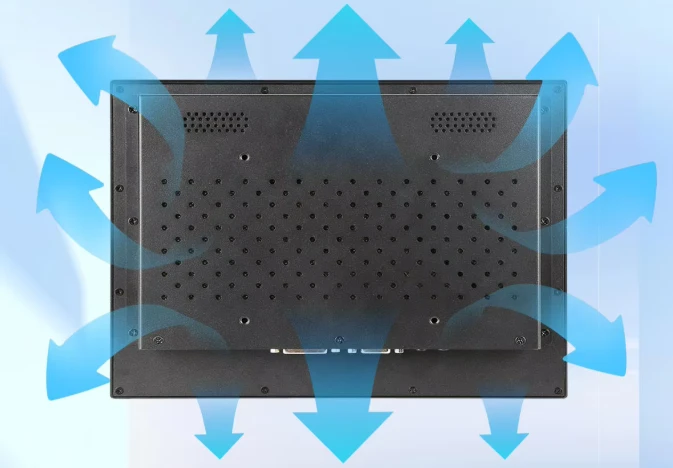

The extruded back cover is suitable for industrial workshops and medical equipment, and has a better heat dissipation effect

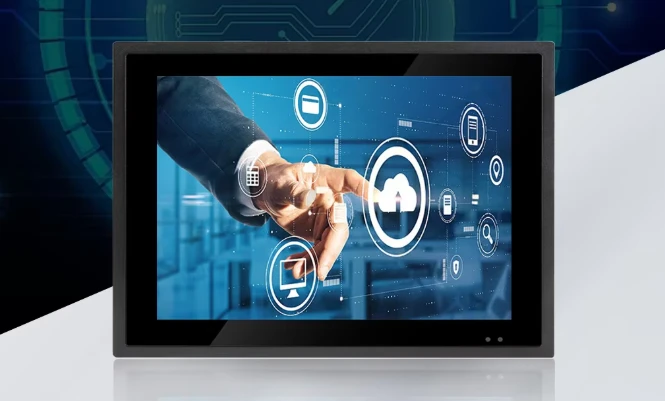

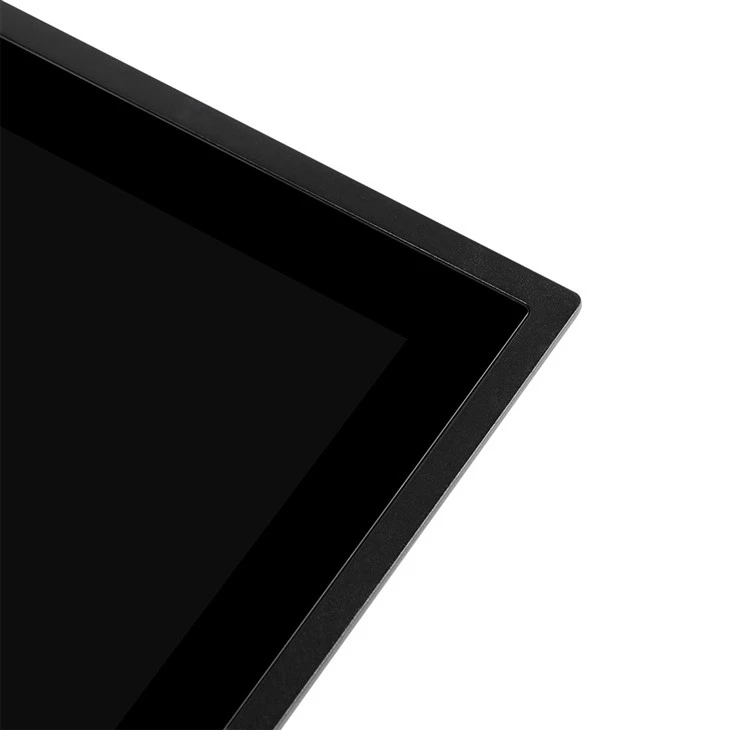

Optical Bonding + frame lamination design
The ultra-narrow bezel integrates seamlessly with the machine after being embedded

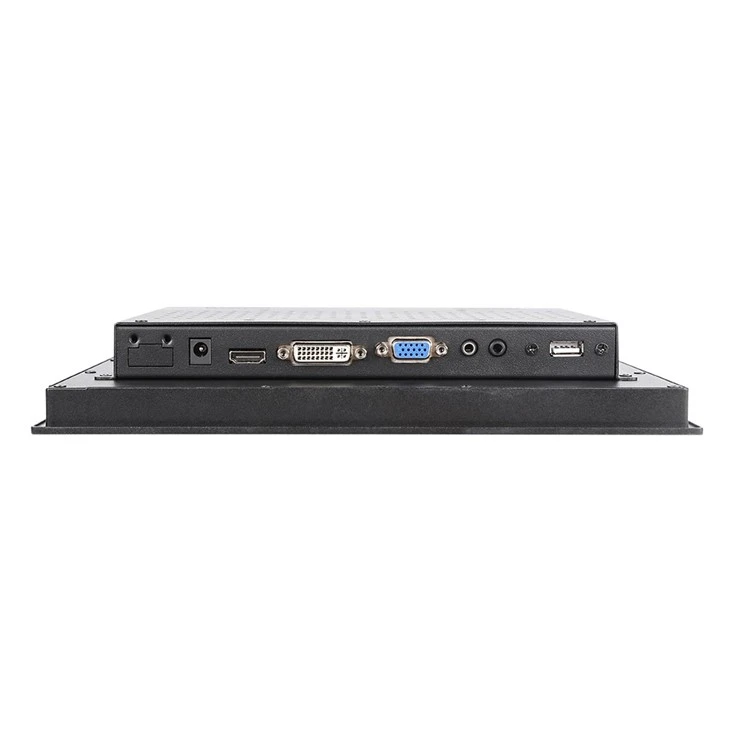

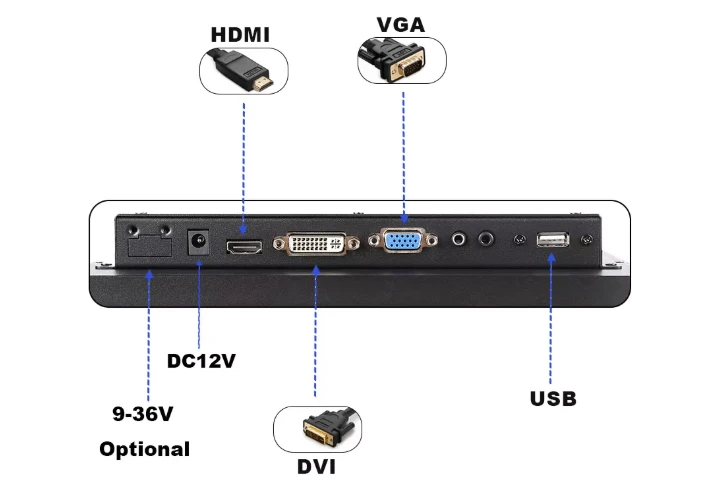

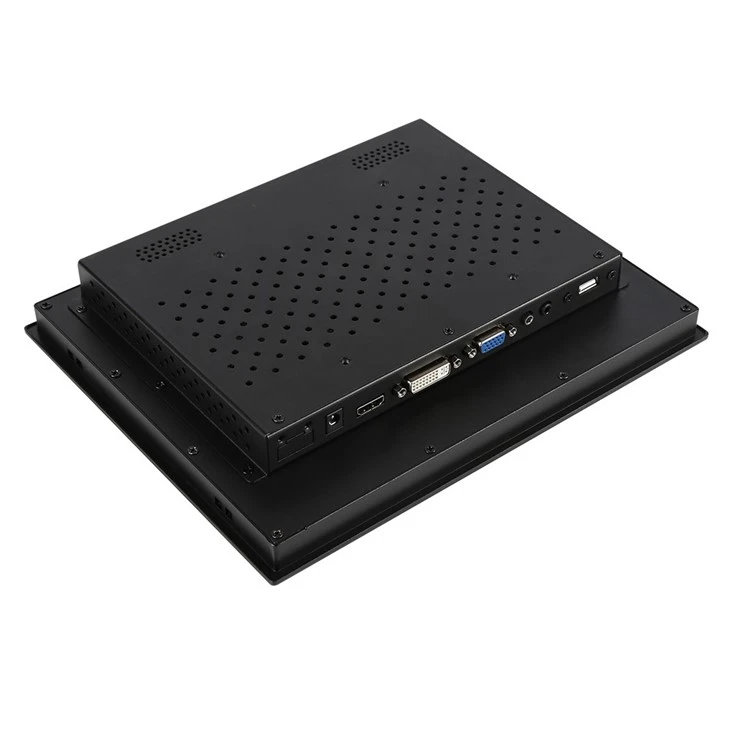

Product interface details
The interface can be customized as needed to meet different requirements

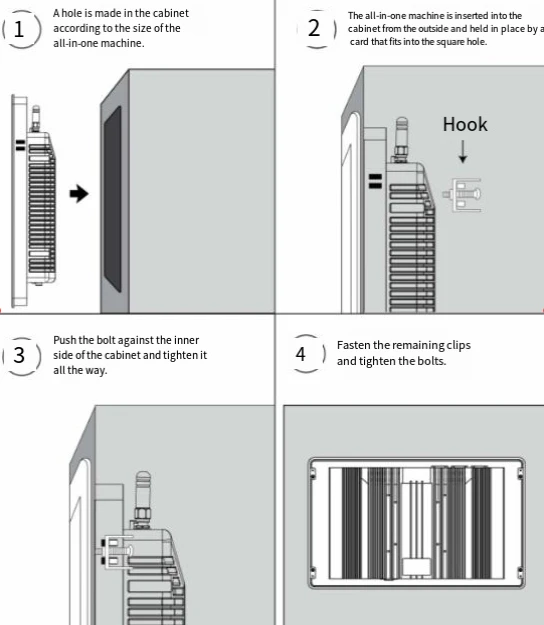

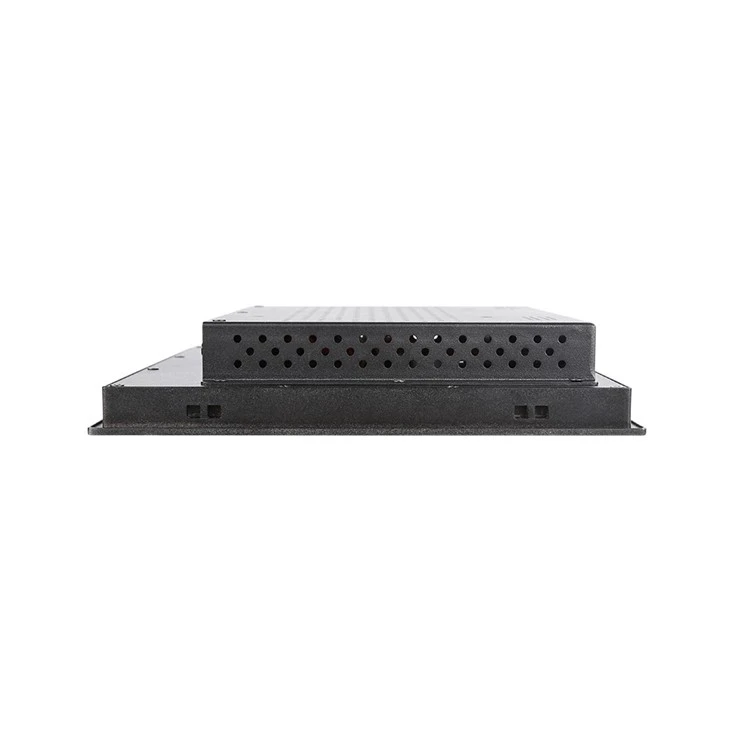

Installation method
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
