Industrial quality LCD monitor
It adopts original resistive and capacitive touch screens, with high-speed transmission response, one-time correction, high stability and strong anti-interference ability.
HD Panel clear Presentation LED Backlight
Industrial grade LED
Different contrast options
Wide Viewing Angle :89/89/89/89
eRegular Brightness : 300cd/mSupport OEM

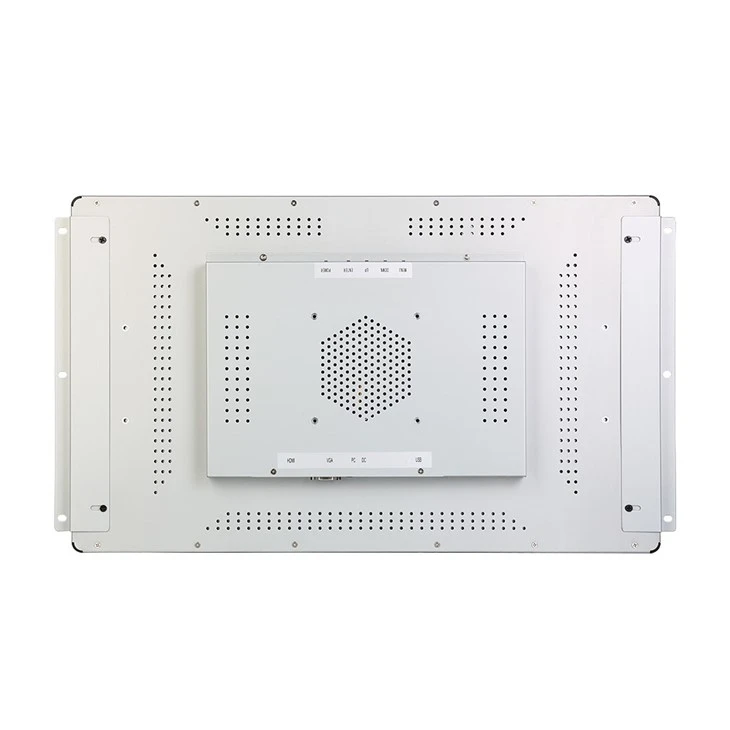

Cold rolled metal Efficient heat dissipation
The main body of the machine is made of cold-rolled metal material to enhance the heat dissipation effect. A perfect heat dissipation system can keep the machine running stably, reduce the failure rate, and ensure the temperature balance between the inside and outside of the machine.
|
LCD panel( IPS screen) |
|
|
Color |
Black optional |
|
Panel size |
7,12.1,13.3,15,15.6,17,18.5,19,21.5,27,32,43inch optional |
|
Native Resolution |
1280*1024 |
|
Brightness (cd/m²) |
350-400nits |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
capacitive touch optional |
|
Touch Interface |
USB(RS232 optional) |
|
Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB |
|
HDMI |
1xHDMI |
|
DVI |
1xDVI or No |
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
WinXP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, touch pen,Touch driver disk,Remote Control, Stander optional |
|
Others |
|
|
Certification |
CE, FCC, ROHS |
|
Warranty |
2 years warranty |
|
Waterproof |
front panel ip65 waterproof |
