High brightness optional
Brightness can reach 500cd/㎡, and will changes withlight intensity, suitable for outdoor use

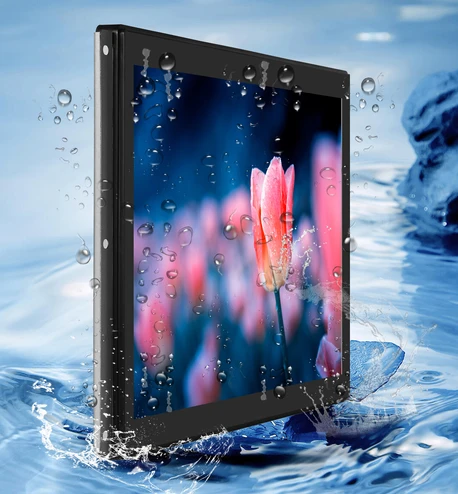

IP65 WATERPROOF DUSTPROOFLIGHTNING PROTECTION
Aluminum alloy frame,pure flat panel Seamless design

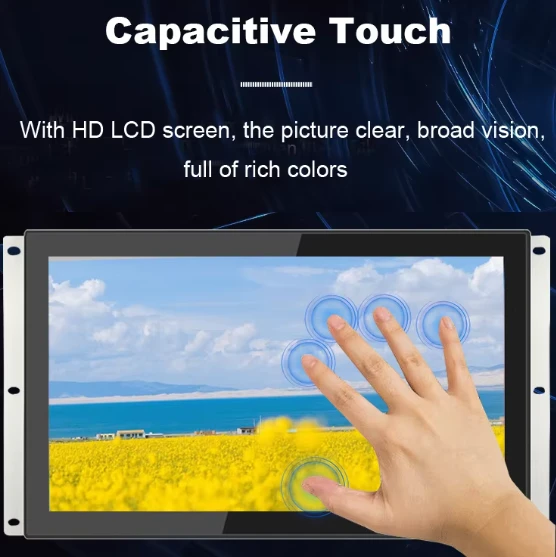

INSTANTANEOUS TOUCH
Pure screen capacitive touch, high resolution, quick
response, no stuck, no blind spots, high stability

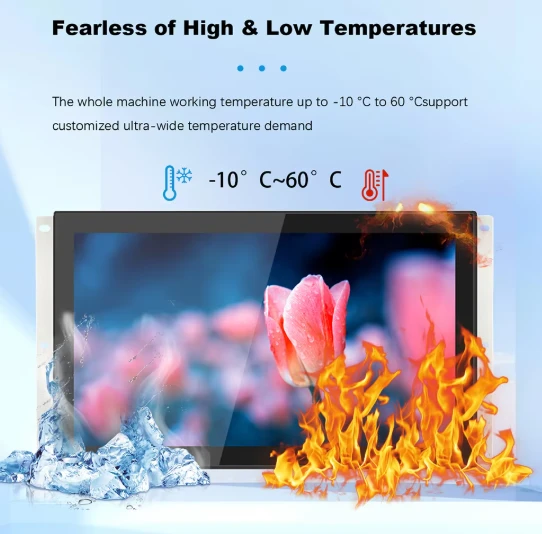

ANTI-HIGH AND LOWTEMPERATURE
Through controlled high temperature test, the productThe temperature is -20*C-70°C, and can work well inharsh environments
|
LCD panel( IPS screen) |
|
|
Color |
Black optional |
|
Panel size |
7,12.1,13.3,15,15.6,17,18.5,19,21.5,27,32,43inch optional |
|
Native Resolution |
1280*1024 |
|
Brightness (cd/m²) |
350-400nits |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
capacitive touch optional |
|
Touch Interface |
USB(RS232 optional) |
|
Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB |
|
HDMI |
1xHDMI |
|
DVI |
1xDVI or No |
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
WinXP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, touch pen,Touch driver disk,Remote Control, Stander optional |
|
Others |
|
|
Certification |
CE, FCC, ROHS |
|
Warranty |
2 years warranty |
|
Waterproof |
front panel ip65 waterproof |
