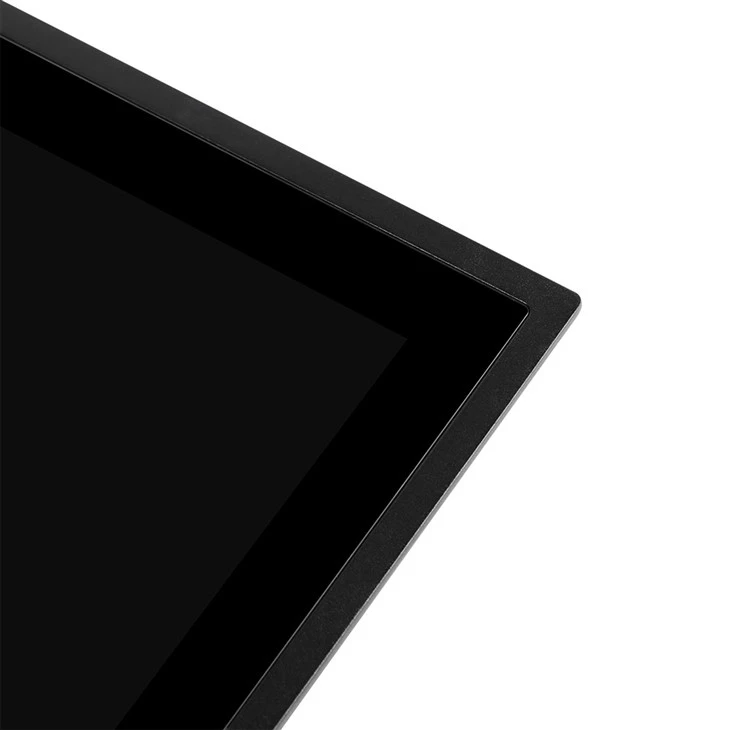

Industrial-grade touch solution
The industrial-grade touch solution features precise clicks without deviation, and the ten-point capacitive touch screen responds quickly and sensitively. The flat touch panel isolates dust, moisture and oil stains, ensuring stable operation even in harsh environments

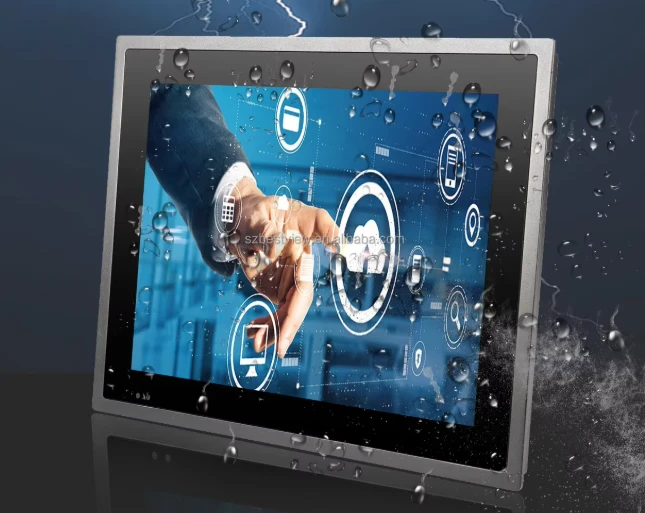

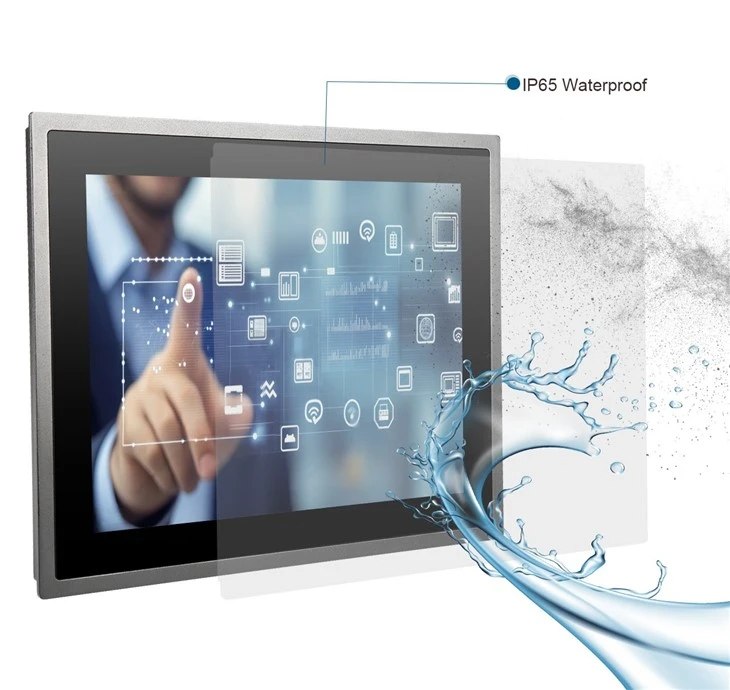

IP65 dust and water resistant
The front panel meets the IP65 standard, ensuring stable operation in industrial environments with dust, dust, and water spray, allowing for worry-free use. Our company can also provide complete IP65 standard touch displays and industrial control tablet all-in-one computers.

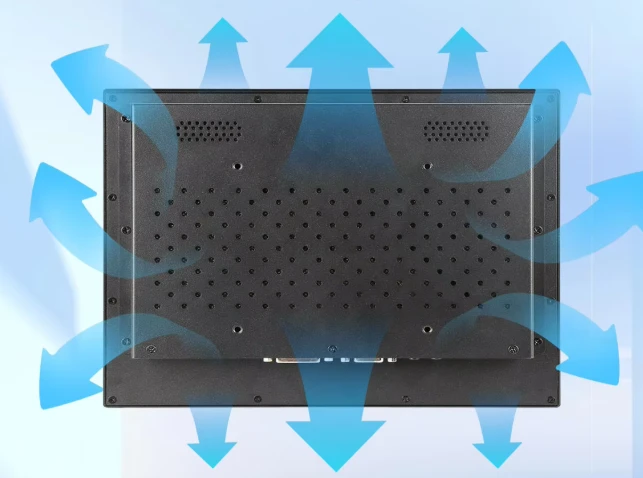

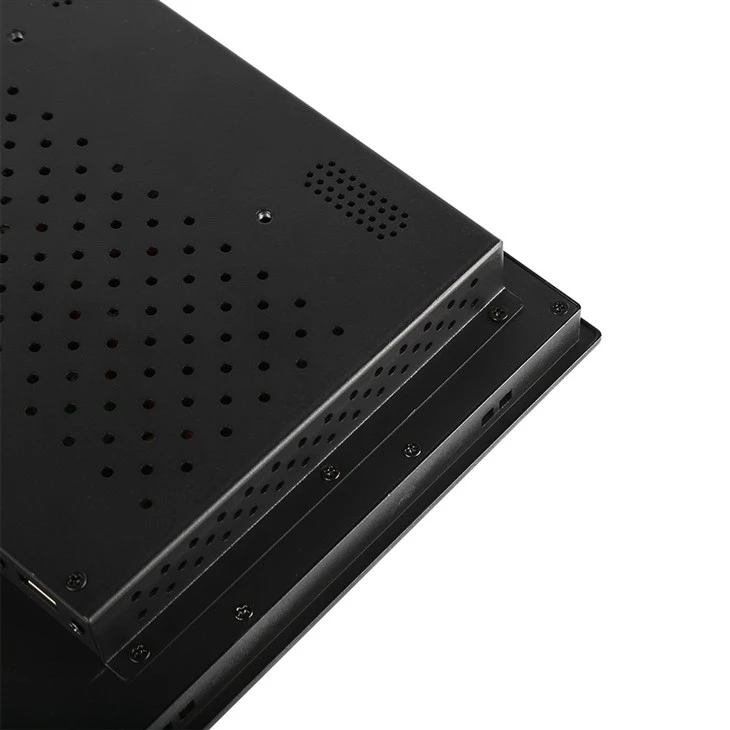

The aluminum alloy body conducts heat efficiently
The whole machine is made of aluminum alloy, featuring strong thermal conductivity, high strength and good mechanical properties of the body. The interior of the body conforms to the engineering design of heat convection and heat radiation, efficiently discharging the heat of the body to achieve circulating heat dissipation and ensure the stable and long-term operation of the touch display
Stable operation all day long
It has the ability to operate continuously for 24*7 hours a day, with low consumption and noise reduction, making it suitable for various harsh environments

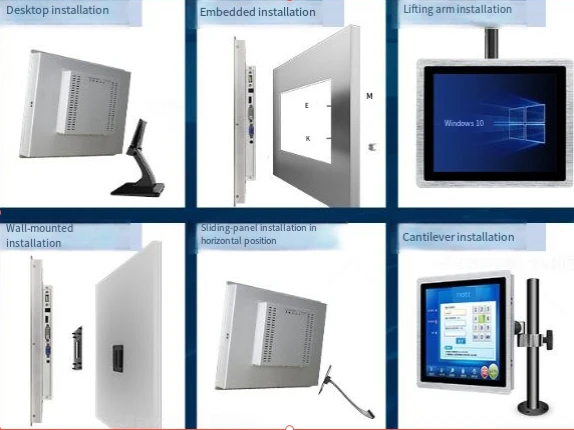

Supports multiple installation methods
Supports various installation methods such as desktop, embedded, wall-mounted, cantilever, boom, and horizontal louver. For more details, please consult our online customer service!
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

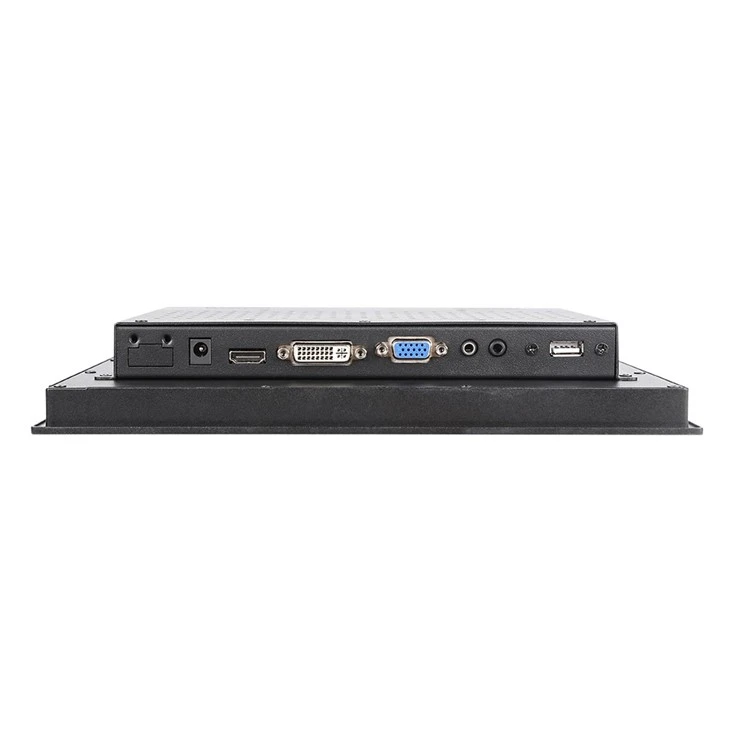

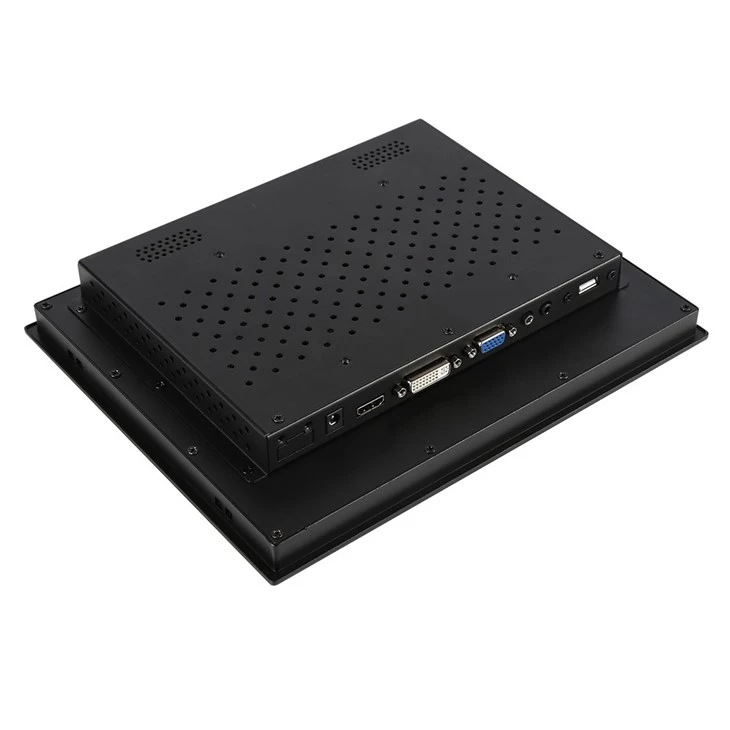

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
