Features
01
01.Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
01
02
02.Black or silver color optional
02
03

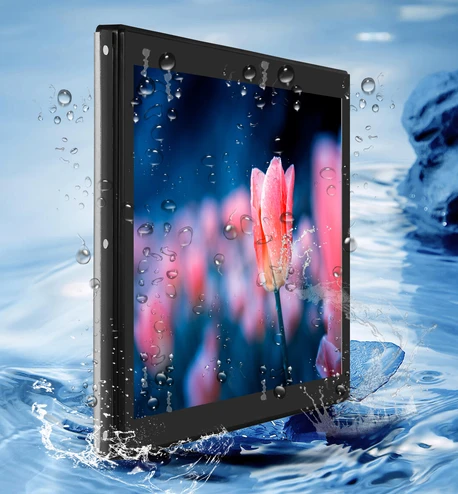

03.IP65 grade water-proof,dust-proof for front panel.
03
04
04.Working temperature:-20-60 degree
04
05
05.365Days*24hours all-weather working.
05
06
06.Support boot strap with electricity
06
07
07.3mm bezel thin front panel,embedded cabinet suitable
07
08
08.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
08
09
09.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
09
10
10.Compatible with various industrial systems/application.
10
11
11.Support non-touch,resistive touch,capacitive touch.
11
12
12.Whole system is equipped with WI-FI module,more convennient.
12
13
13.Build-in 2.0 speakers,support 1080P HD video.
13
14
14.CE,FCC,CCC,ROHS certificate.
14
15
15.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
15
16
16.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
16
17
17.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
17
18
18.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
18
|
LCD panel( IPS screen) |
|
|
Color |
Black optional |
|
Panel size |
7,12.1,13.3,15,15.6,17,18.5,19,21.5,27,32,43inch optional |
|
Native Resolution |
1280*1024 |
|
Brightness (cd/m²) |
350-400nits |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
capacitive touch optional |
|
Touch Interface |
USB(RS232 optional) |
|
Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB |
|
HDMI |
1xHDMI |
|
DVI |
1xDVI or No |
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
WinXP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, touch pen,Touch driver disk,Remote Control, Stander optional |
|
Others |
|
|
Certification |
CE, FCC, ROHS |
|
Warranty |
2 years warranty |
|
Waterproof |
front panel ip65 waterproof |
