The flat front panel is dustproof and waterproof
Effectively prevent splashing water droplets and dust from entering the interior of the machine body

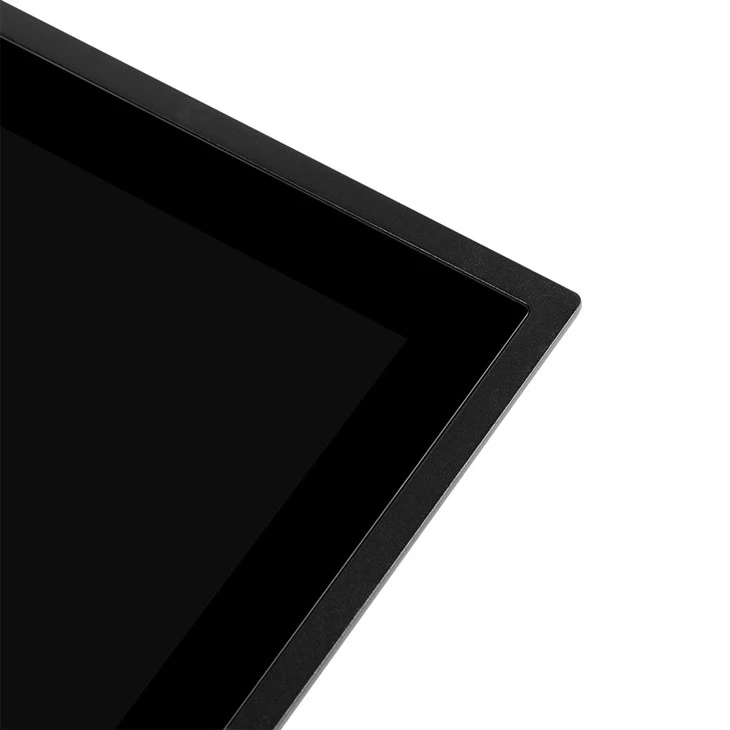

3MM frame thickness The bevel design of the middle plate feels smooth and round
The thin and narrow frame thickness is more suitable for embedded installation
Industrial control LCD screen The picture quality is excellent, accurately reproducing true colors
The LED backlight panel has clear colors and a longer service life

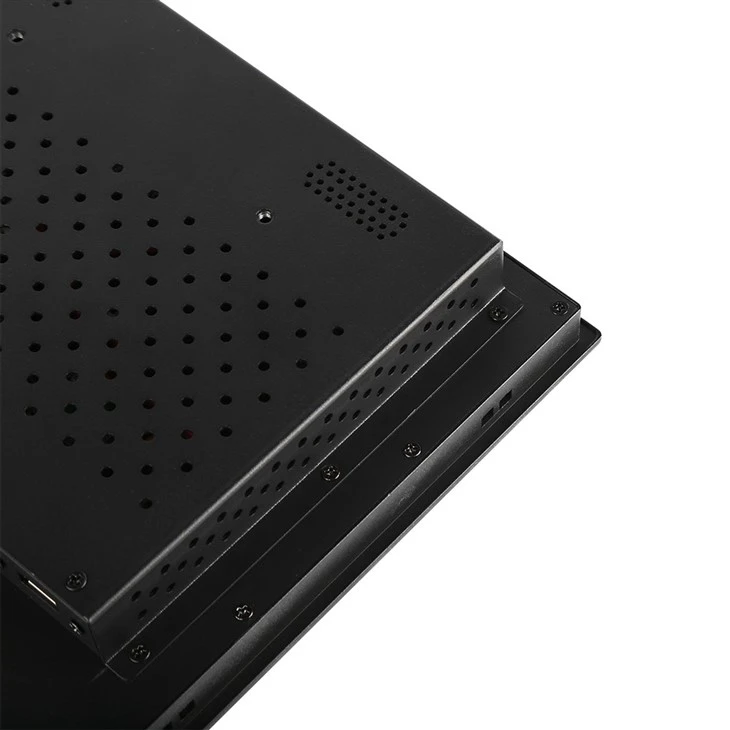

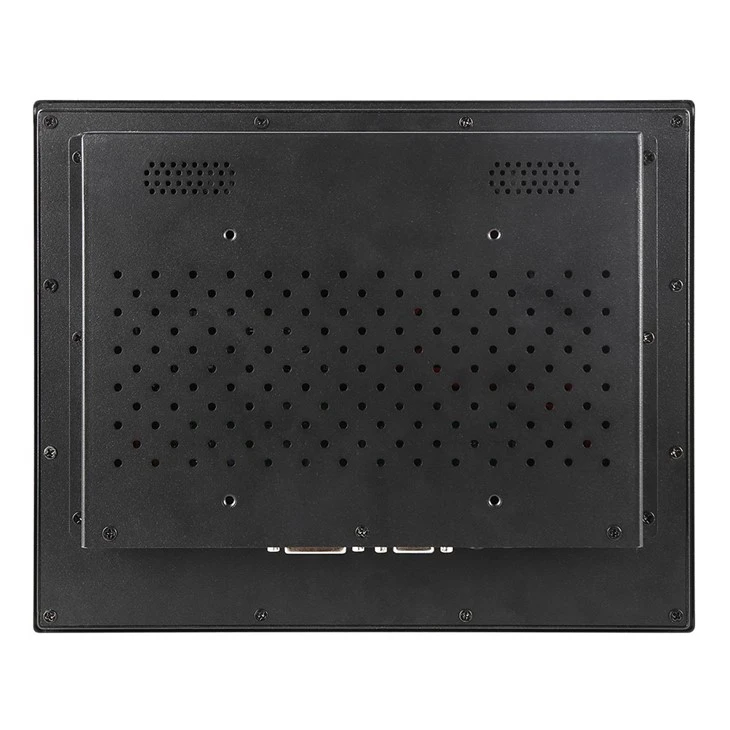

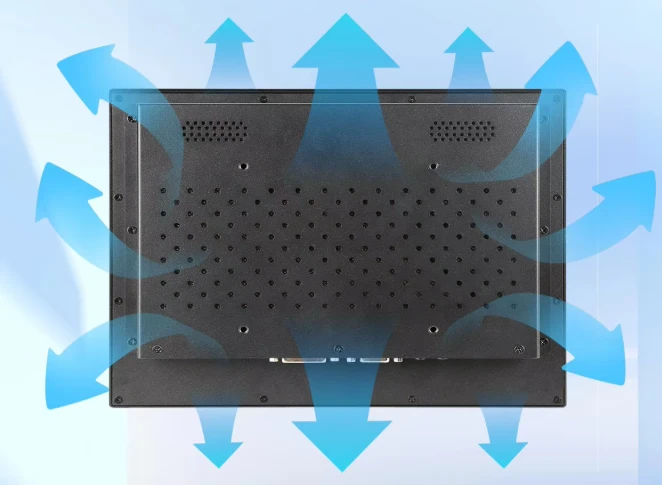

The whole machine is fully enclosed. The heat dissipation structure realizes industrial hole-free heat dissipation
The metal integrated body adopts an arc-shaped heat dissipation structure design
Resistant to high and low temperatures Fearless of high and low temperatures
Resistant to high and low temperatures,Low to -10 °C, high to 60°C
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

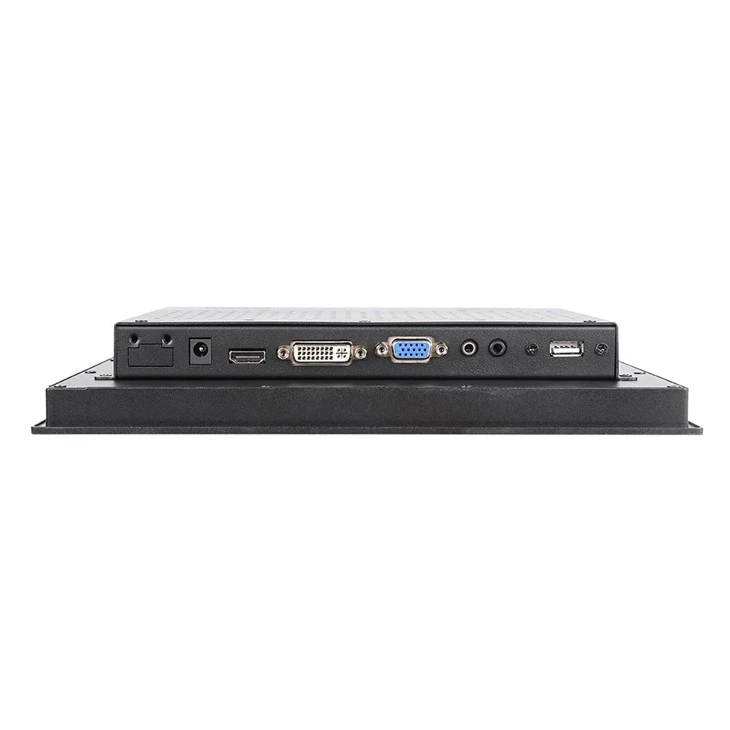

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
