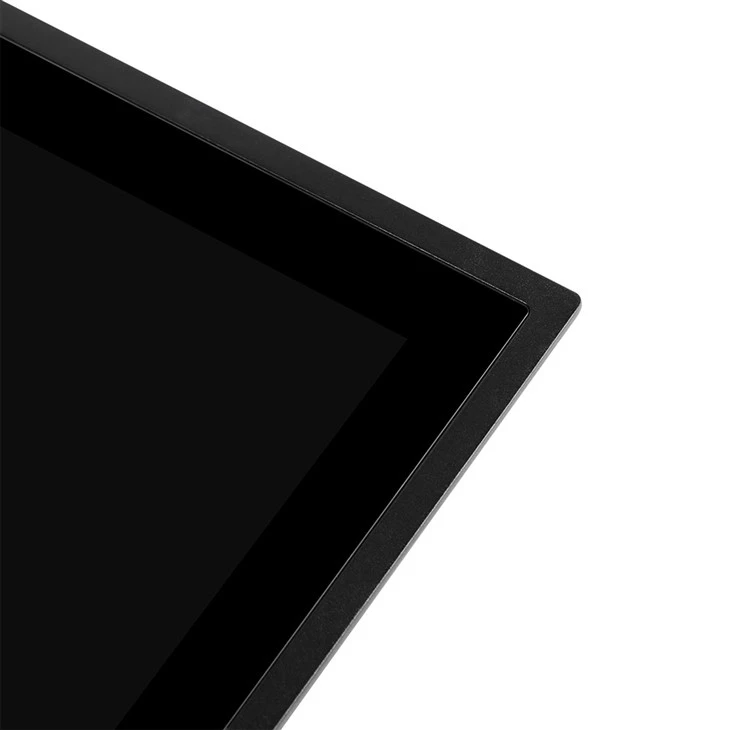

3mm thin frame is embedded
It is highly compatible with various cabinet equipment, easy to install and has a more aesthetically pleasing overall appearance.
Enhanced scalability
Integrated with multiple industrial communication interfaces, it is easy to connect to the internal equipment of the cabinet. Support expansion modules to meet personalized needs

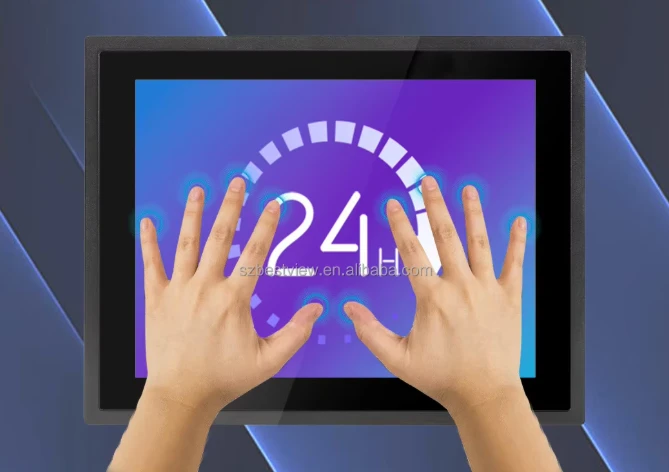

Convenient and efficient to use
Supports ten-point touch operation, with a simple and easy-to-use interface. It can realize functions such as remote monitoring data collection and fault diagnosis, enhancing the intelligence level of the cabinet machine.

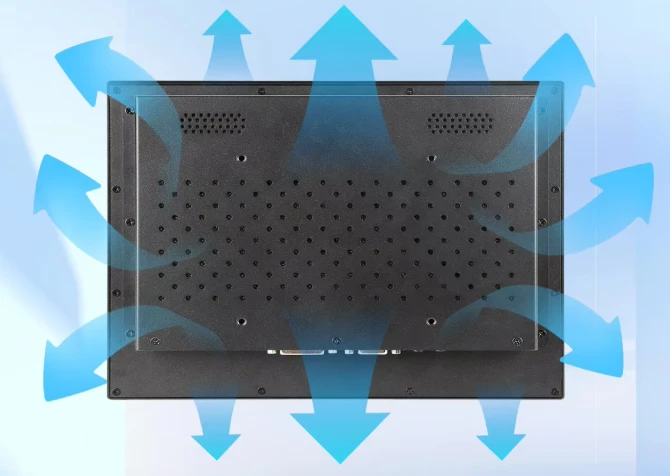

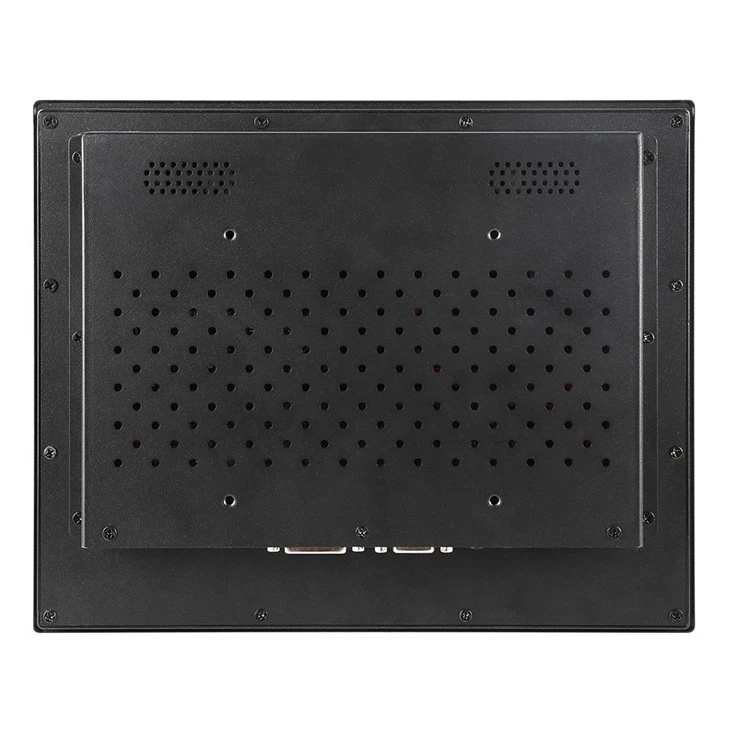

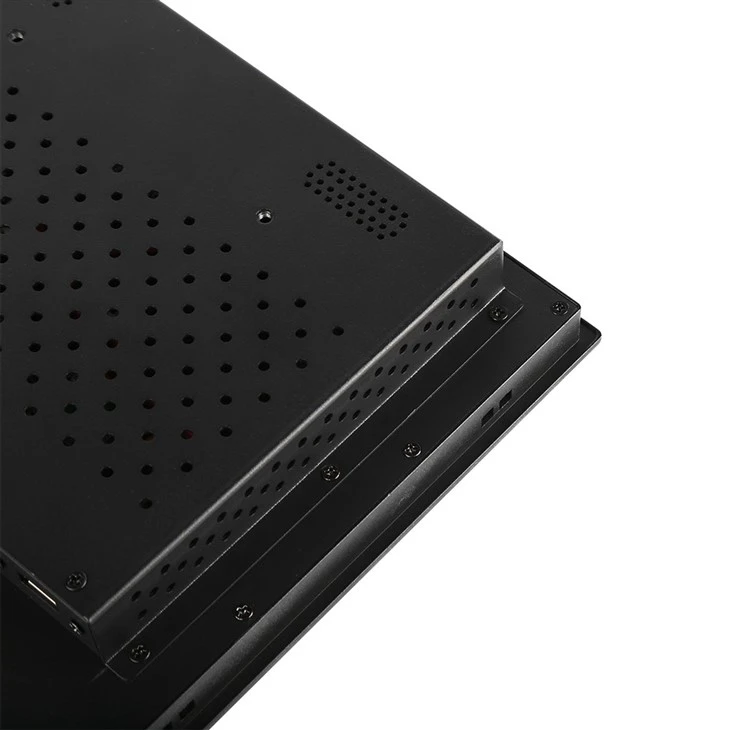

Silent heat dissipation design
The full-body metal heat dissipation back cover adopts a low-power processor, providing efficient and silent heat dissipation without the need for disassembly, assembly or cleaning.

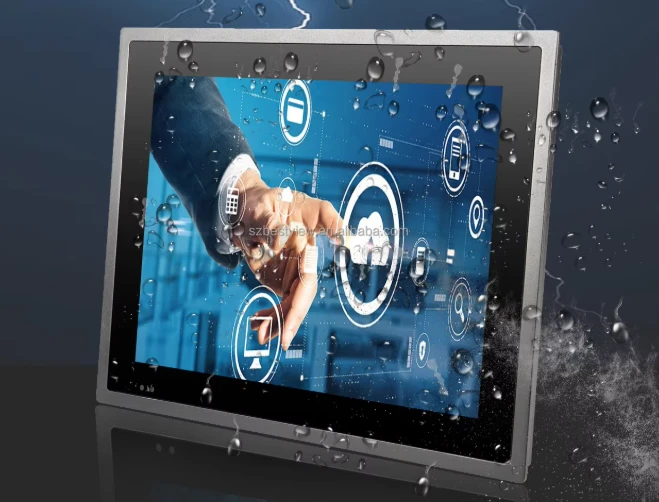

Waterproof and dustproof
The entire machine equipment features a "pure flat" effect, is easy and firm to install, and has a high fit. The front of the entire machine is rated IP65 for water and dust resistance. Effectively prevent rainwater and dust from entering the interior of the product
Industrial materials are resistant to high and low temperatures
After strict temperature control box testing, the product can adapt to temperatures ranging from -10°C to 70° C. It operates stably regardless of extreme cold or heat.
System compatibility software can be installed at will
Supported systems :Windows/ Android /Linux/ et
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

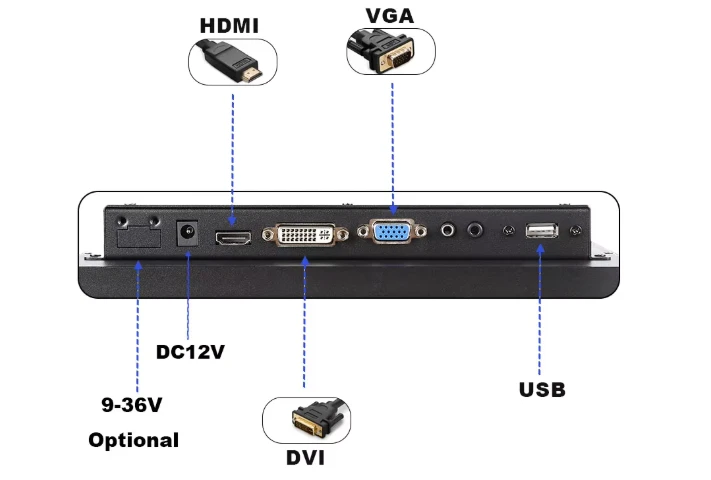

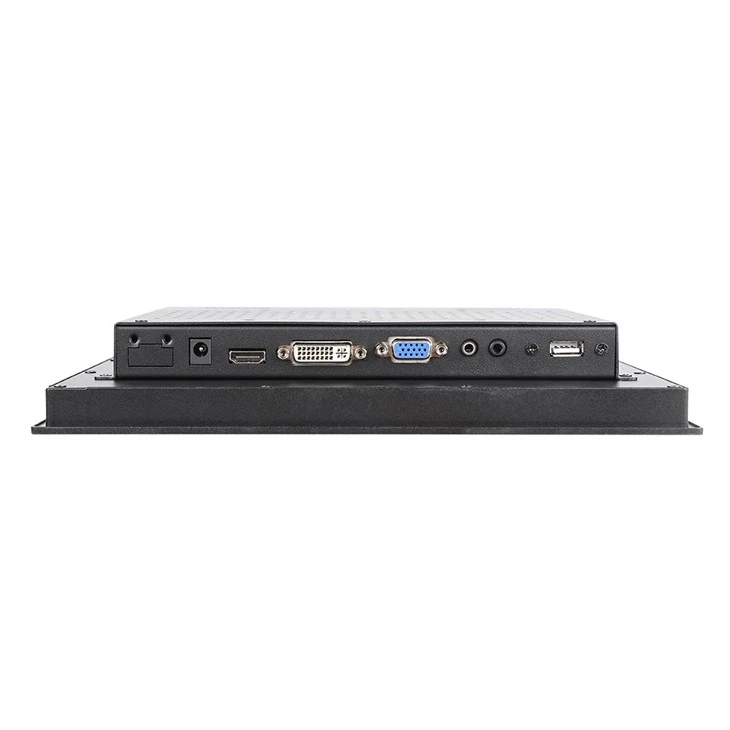

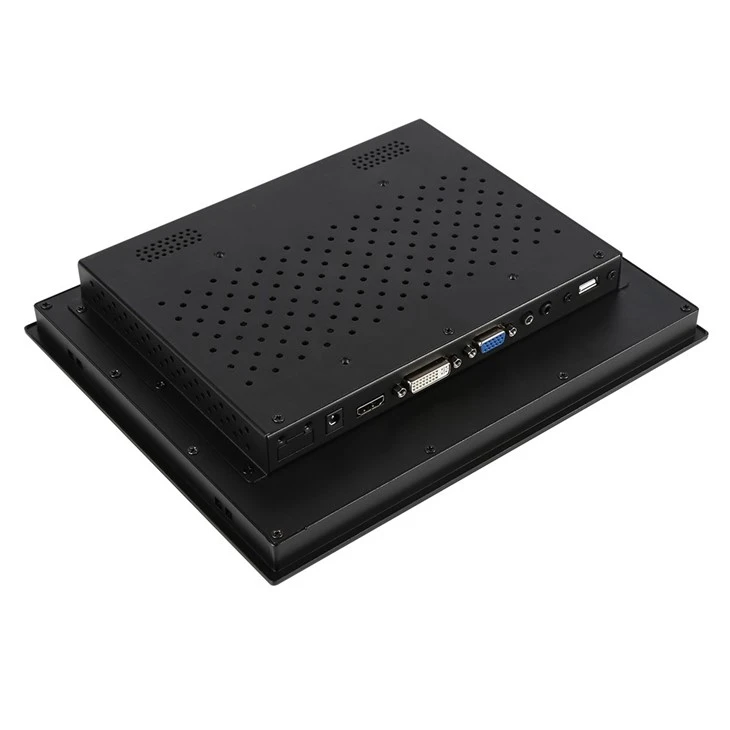

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
