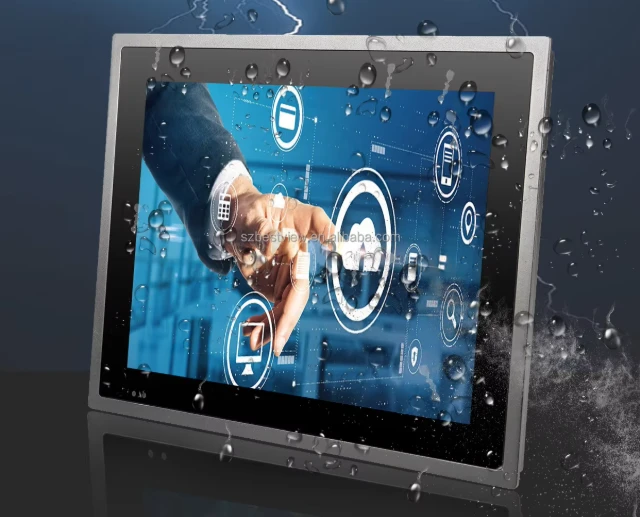

Industrial-grade IP65 water and dust resistant
The front panel is designed with IP65 protection, effectively preventing water splashes

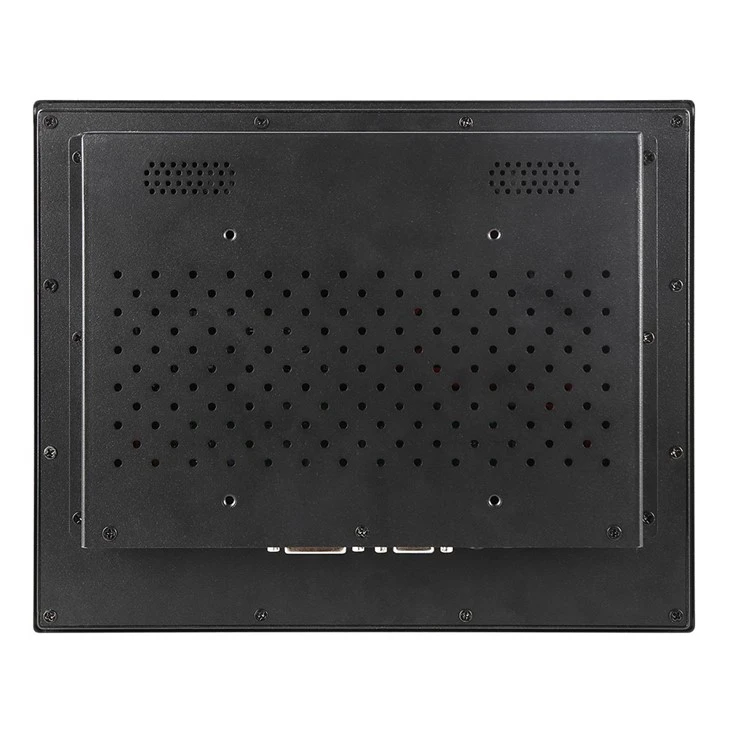

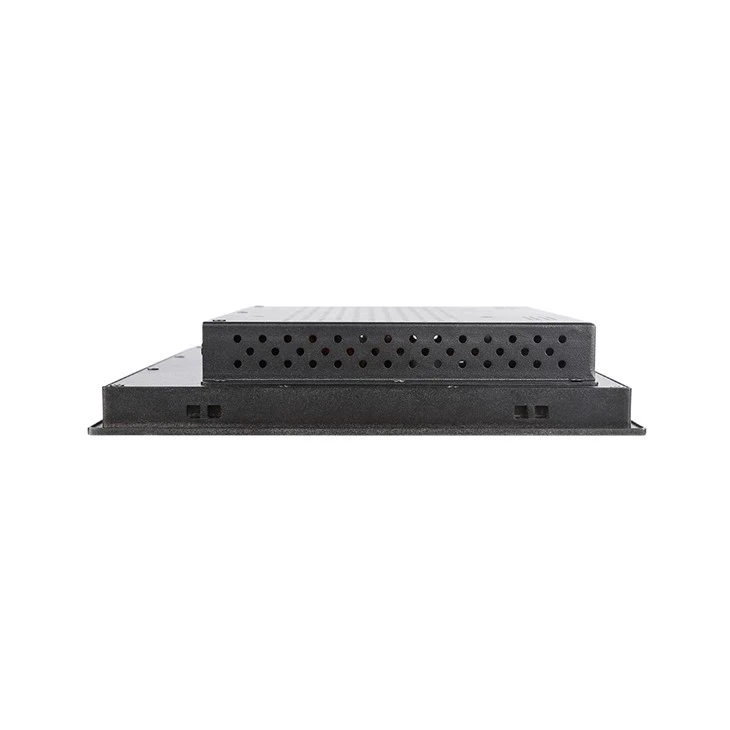

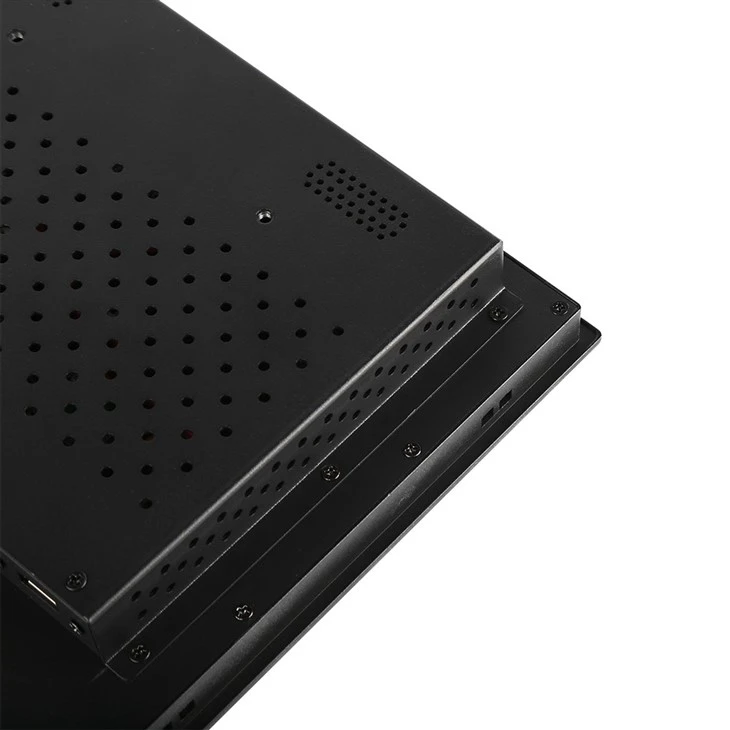

All-metal casing
The fully enclosed and seamless design significantly enhances the overall hardness and compressive strength of the machine, making it resistant to high temperatures and corrosion, and ensuring a long service life
EIndustrial-grade LCD screen
It features dust-proof and water-proof design, making it suitable for harsh environments such as industrial and outdoor Settings, and enhancing the reliability of the equipment.

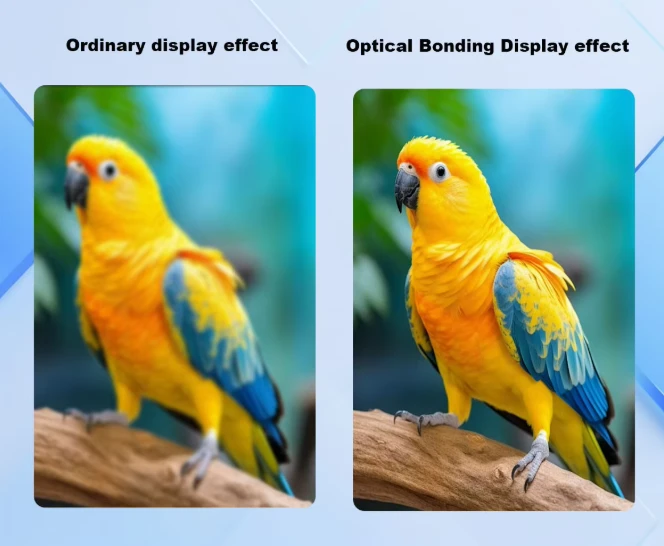

Color saturation The high-definition display is delicate and natural
The screen adopts LED backlit high-definition industrial control A-grade screen with saturated colors and uniform display brightness
Industrial-grade motherboards have more stable performance
It adopts a low-power chipset to save energy, has strong resistance and can operate stably in various complex and harsh environments

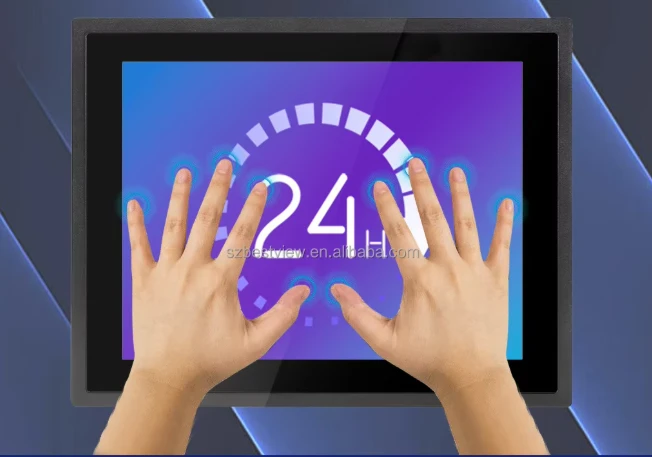

Multi-touch interaction
The touchpad can easily achieve web browsing, self-service inquiry, and marketing guidance, meeting various needs
Energy-saving and low consumption, with circulating heat dissipation
It operates 24 hours a day, supports power-on and startup, and has the ability to operate stably 365*24 hours a day, making it suitable for industrial sites
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

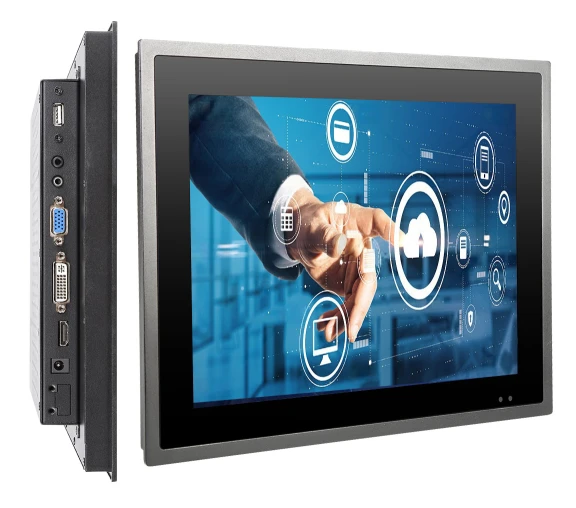

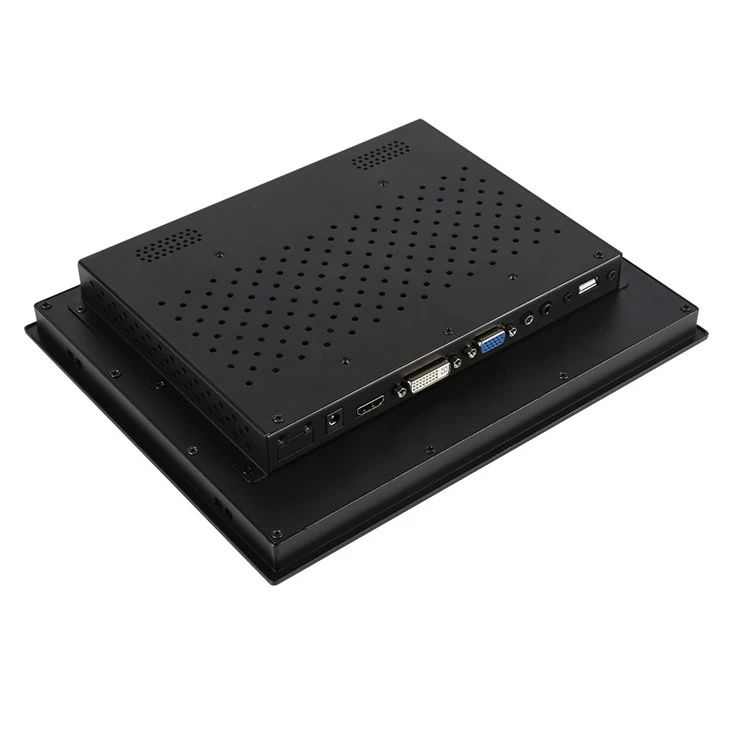

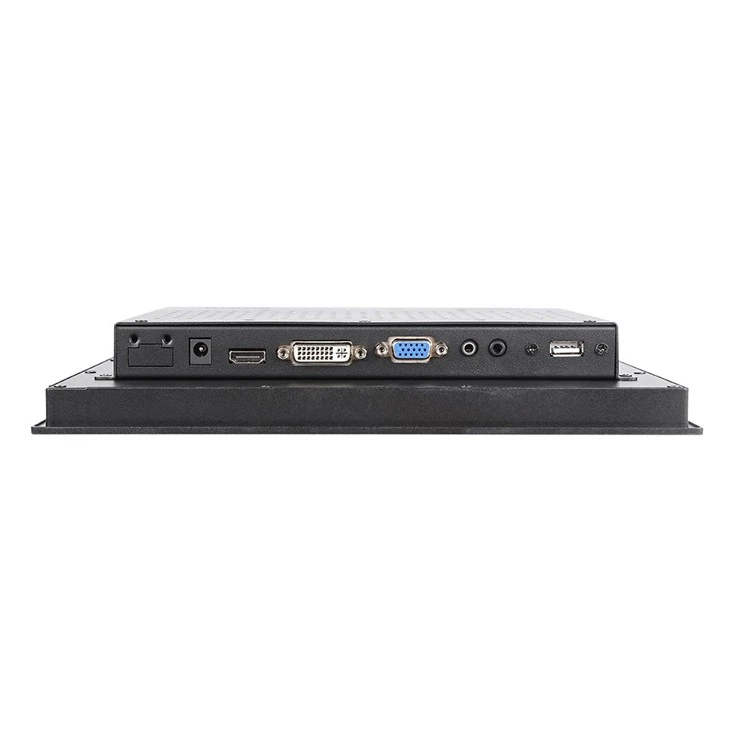

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
