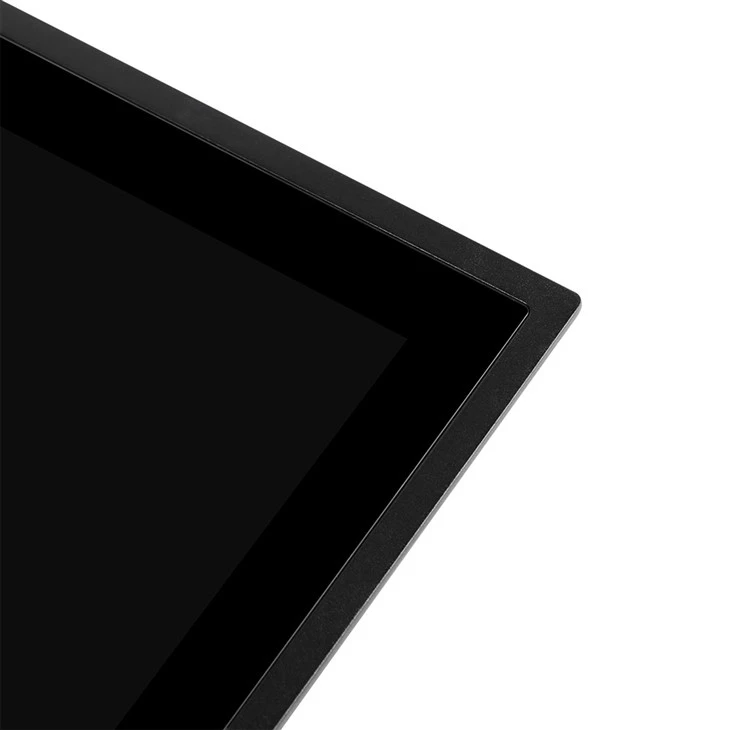

The design features a 3mm frame thickness
Aluminum alloy face frame, with finely ground corners and arcs.

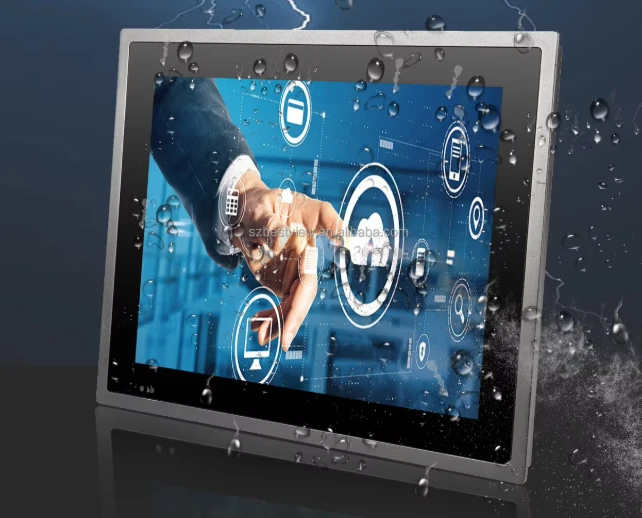

Industrial-grade IP65 dust and water resistant
The pure flat plate is designed with IP65 grade, effectively preventing dust and water droplets from entering the interior of the machine.
Efficiency leap Precision and stability

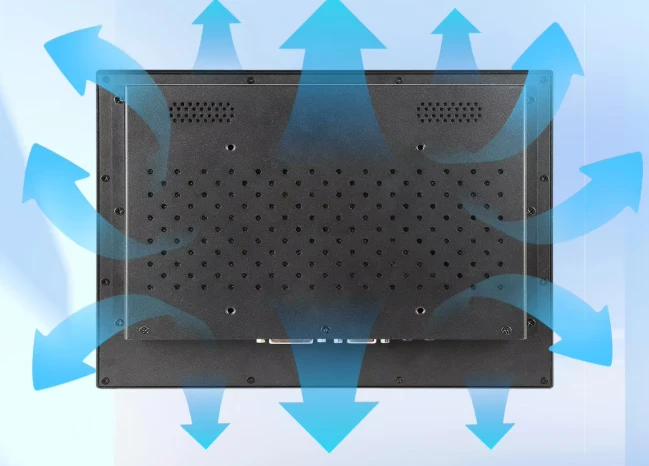

Strong thermal conductivity, low power consumption and silent heat dissipation.

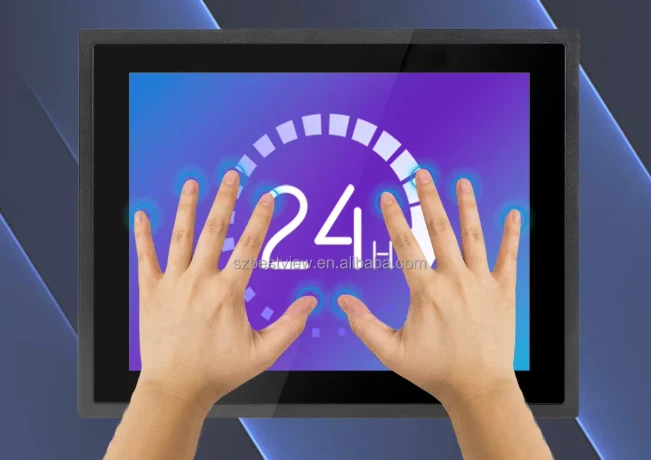

It operates 24 hours a day without any lag or system crashes
It has the ability to operate continuously and stably for 24 hours a day, adapting to industrial environments that require long-term startup

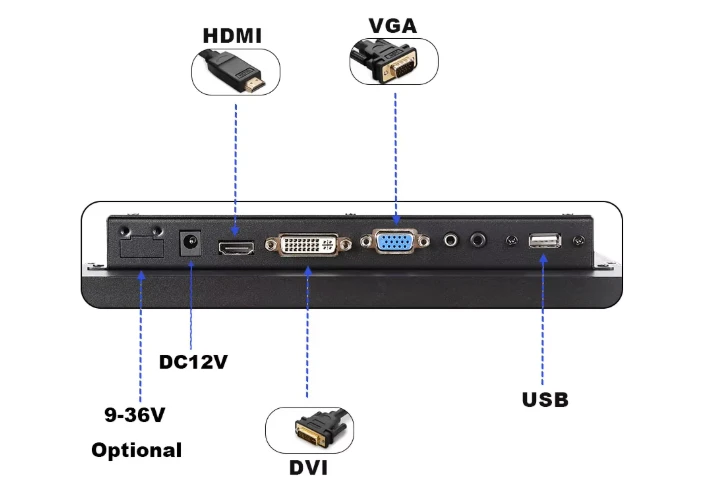

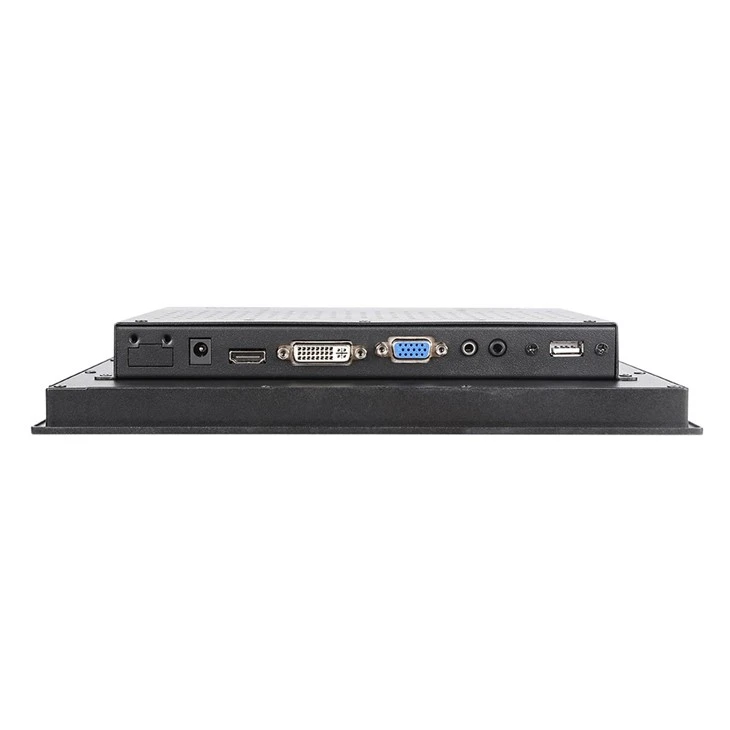

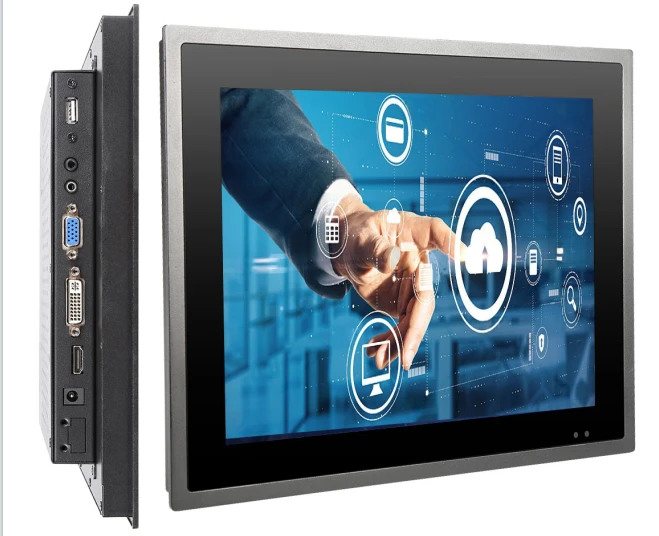

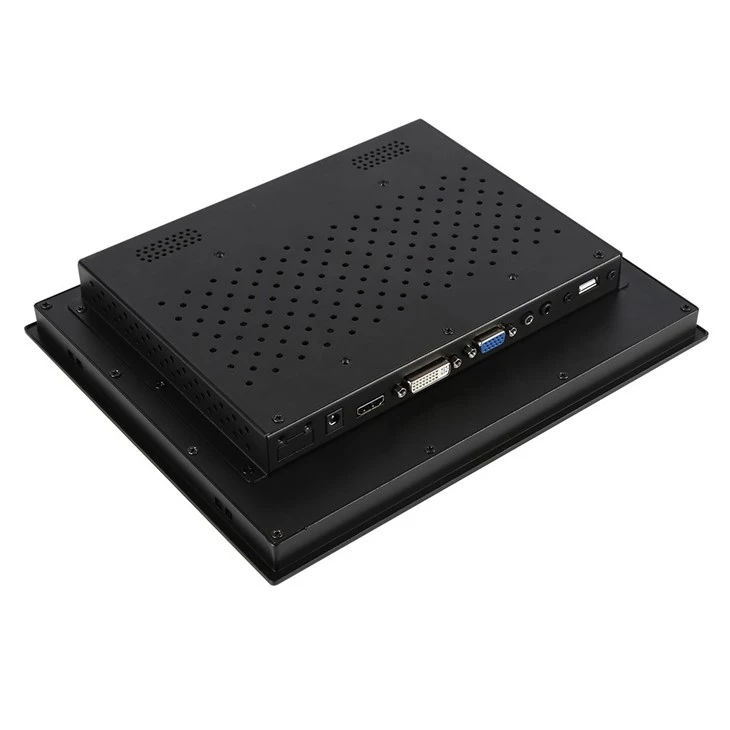

The interfaces are rich and complete, meeting various industrial demands
For custom interface modules, please consult customer service
Multi-point capacitive touch screen
Precise analysis, millisecond-level response, pure flat capacitive touch design with no blind spots, surface hardening treatment, scratch-resistant and wear-resistant, capable of withstanding over 100 million clicks, supporting 10-point to 20-point capacitive touch
Compatible with multiple operating systems, it can easily handle various software
Outstanding compatibility, stable operation of multiple systems, compatible with various industrial software, easy and simple operation, intelligent and fast.
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
