1. Signal Transmission & Bandwidth
LVDS (Low-Voltage Differential Signaling)
Uses parallel differential signaling (multiple data pairs + clock).
Limited bandwidth (~3 Gbps max for dual-channel), suitable for ≤1080p@60Hz.
Prone to EMI (requires shielded cables/length matching).
eDP (Embedded DisplayPort)
Uses serial packetized data (1–4 high-speed lanes, each up to 8.1 Gbps).
Supports 4K@60Hz, 8K (with DSC), ideal for high-res industrial displays.
Lower EMI (embedded clock, fewer wires).
2. Compatibility & Driving Method
LVDS
Requires external TCON (Timing Controller) on the motherboard.
Common in older industrial panels (HMI, medical devices).

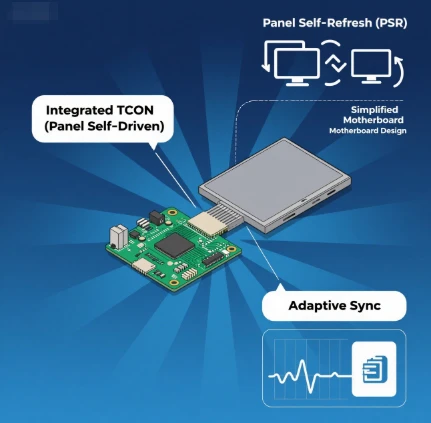

eDP
Integrated TCON (panel self-driven), simplifying motherboard design.
Supports Panel Self-Refresh (PSR) and Adaptive Sync (better for dynamic content).
3. Noise Immunity (Critical for Industrial Use)

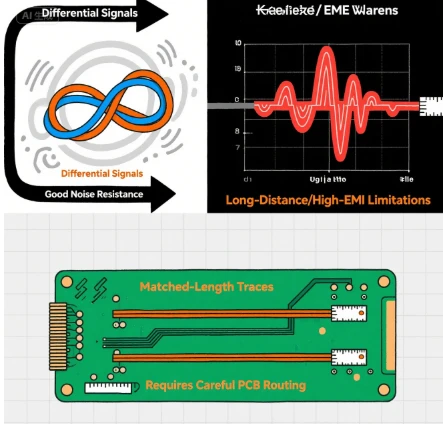

LVDS
Good noise resistance (differential signals) but suffers in long-distance/high-EMI environments.
Needs careful PCB routing (matched-length traces).

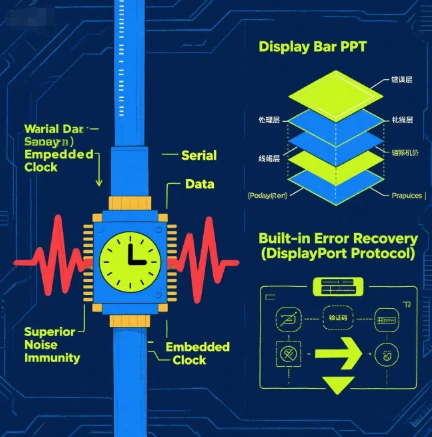

eDP
Superior noise immunity (serial data + embedded clock).
Built-in error recovery (DisplayPort protocol).

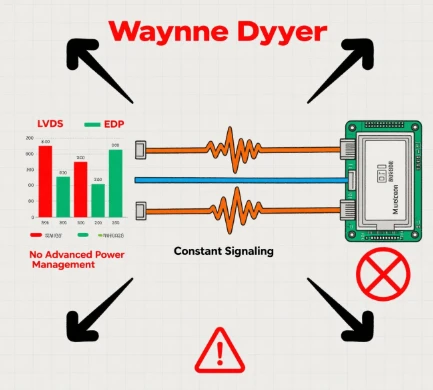

4. Power Efficiency
LVDS
No advanced power management (constant signaling).
eDP

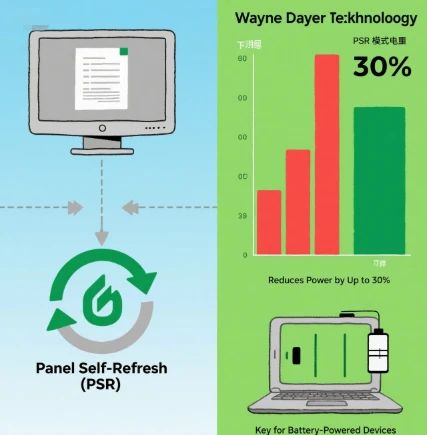

PSR reduces power by up to 30% in static images (key for battery-powered devices).
5. Industrial Applications
| Feature | LVDS | eDP |
|---|---|---|
| Max Resolution | 1080p (legacy panels) | 4K/8K (high-end industrial displays) |
| EMI Resistance | Moderate (needs shielding) | Excellent (ideal for harsh environments) |
| Wiring Complexity | High (multiple pairs + length matching) | Low (fewer lanes, self-clocking) |
| Cost | Low (mature tech) | Higher (but becoming standard) |
| Typical Use Cases | Old HMIs, elevator ads, basic control panels | Advanced touchscreens, medical imaging, military |
How to Choose?
LVDS: Budget projects, low-res displays, legacy compatibility.
eDP: Future-proofing, high-res/high-brightness needs, or harsh environments (factories, outdoor kiosks).
Trend: eDP is replacing LVDS in industrial PCs due to higher bandwidth, lower power, and better noise immunity.
