Industrial Touch Screen Pc
Designed specifically for supportingapplications in technology scenarios
Industrial-grade quality| More stable operation Suitable for use in various harsh environments
Comprehensive Upgrade Nine Core Advantages
Comprehensive Upgrade Nine Core Advantages

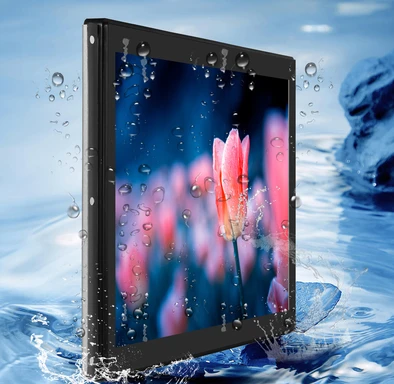

iP65 professional protectionagainst external damage
The fully enclosed design of the machine body can effectively prevent dust and water vapor from entering the machine andcan be used in more harsh working environments
Upgraded anti-electromagneticprotection to meet the needs ofstrong electromagnetic environments
The system has passed the IEC61000-4-2 test. The motherboard adopts an anti-surge design, which can effectively resist unstable voltage environments. In addition, by adding electromagnetic ring anti-interference electronic components, it can be ensured that the entire machine complies with EMC anti-interference standards.
Widely used in industrial places
Industrial control all-in-one machines are widely used in industrial sites, public areas, entertainment venues, commercial institutions, and finance
Institutions, etc.
|
LCD panel( IPS screen) |
||||
|

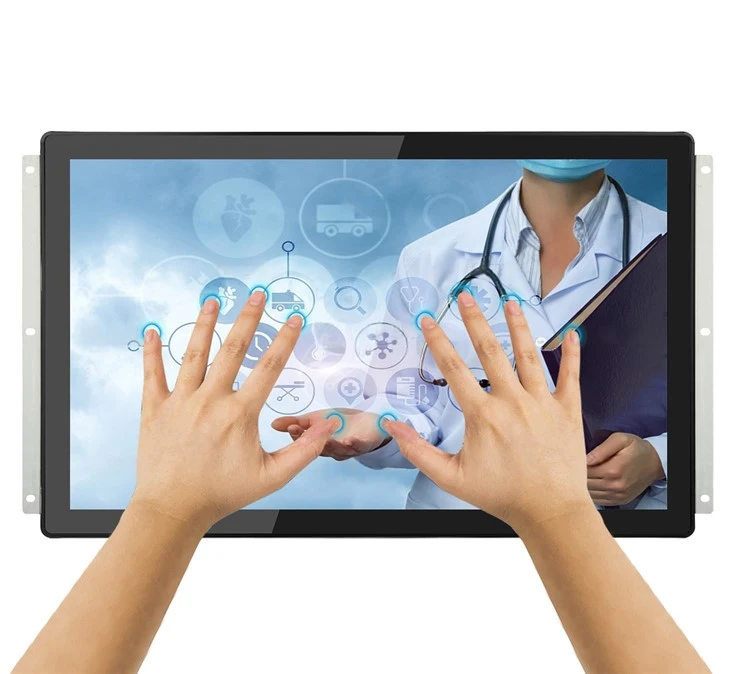

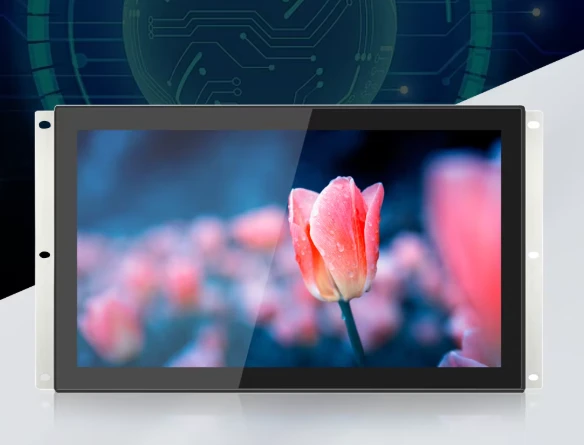

Bestview 18.5 inch industrial panel PC embedded open frame industrial touch panel PC |
||||
|
PC |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional) |
|||
|
Memory |
2GB DDR3, ( Max. 8G) |
|||
|
Hard Drive Capacity |
32G SSD or 320G HDD |
|||
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB,256GB |
|||
|
HDD: 320GB,500GB,1TB |
||||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|

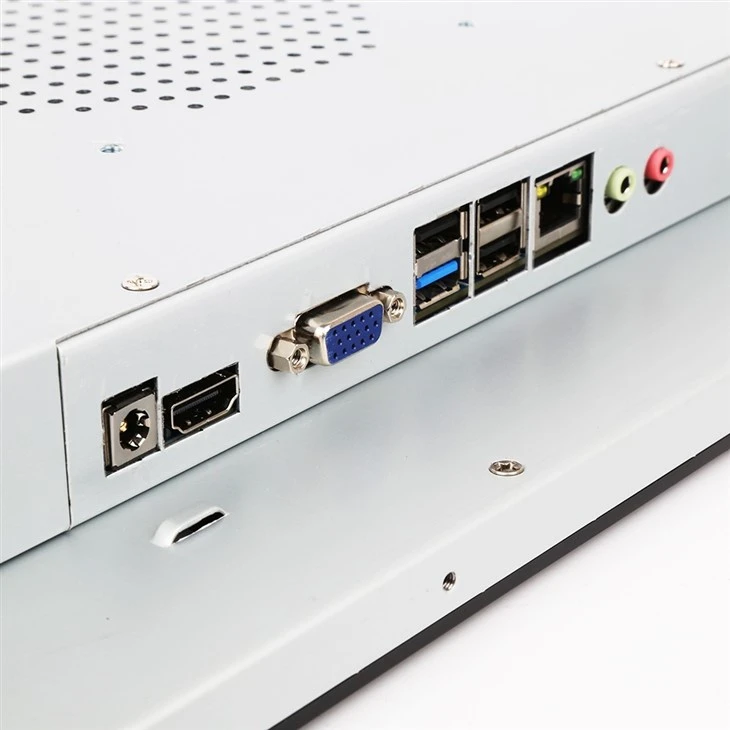

I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|||
|
Opetation System |
Preinstall test version Windows 7/8/10,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
7,10.1,10.4,11.6,11.6,12.1,12.1,13.3,15,15.6,17,18.5,19,19,21.5,27,32,43 Inch |
|||
|
Resolution |
1024*600,1280*800,1366*768,1930*1080,1280*1024,1440*900 | |||
|
Brightness (cd/m²) |
350 cd/m2 |
|||
|
Response time |
15ms |
|||
|
Contrast ratio |
1000:1 |
|||
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|||
|
Touch panel |
||||
|
Touch Type |
10 points projective Capacitive touch optional |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V |
|||
|
Power consumption |
≤18W |
|||
|
Operating Environment |
||||
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna |
|||
|
Other |
||||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
