7,10.1,10.4,11.6,11.6,12.1,12.1,13.3,15,15.6,17,18.5,19,19,21.5,27,32,43 Inch
LED HIGH-DEFINITIONLCD SCREEN
Rich colors, uniform brightness, and the adoption of LED backlight technology combined with high-definition industrial control A screen
All Metal body is more resistant to high and low temperatures(-20°C-60°C)
IP65 WATERPROOF & DUSTPROOF

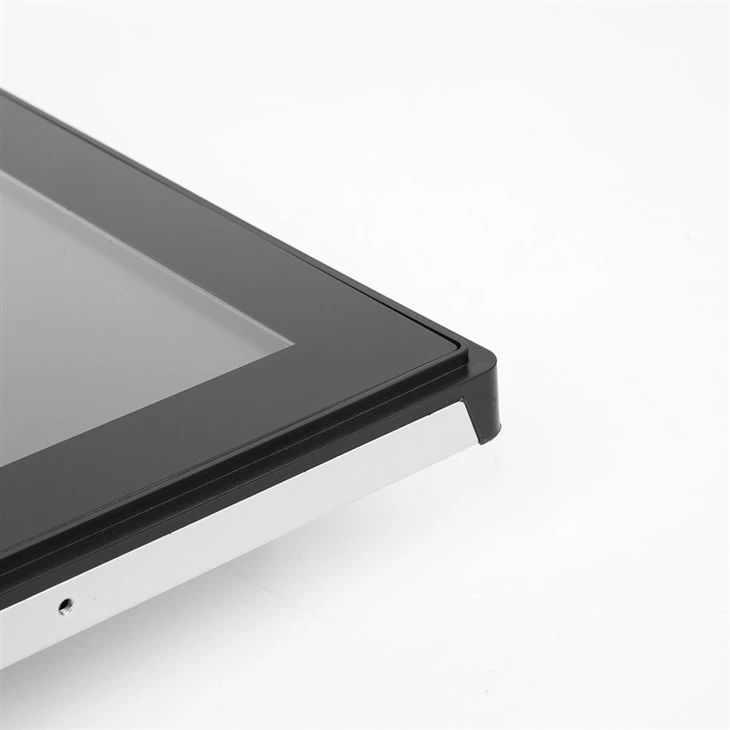

Touch screen and the aluminum alloy front frame are fullyintegratedDisplay surface is better dustproof and waterproof, reach to lP65
Adopting low-power industrial processors, it runs stably and quickly,and refuses to get stuck in critical times.

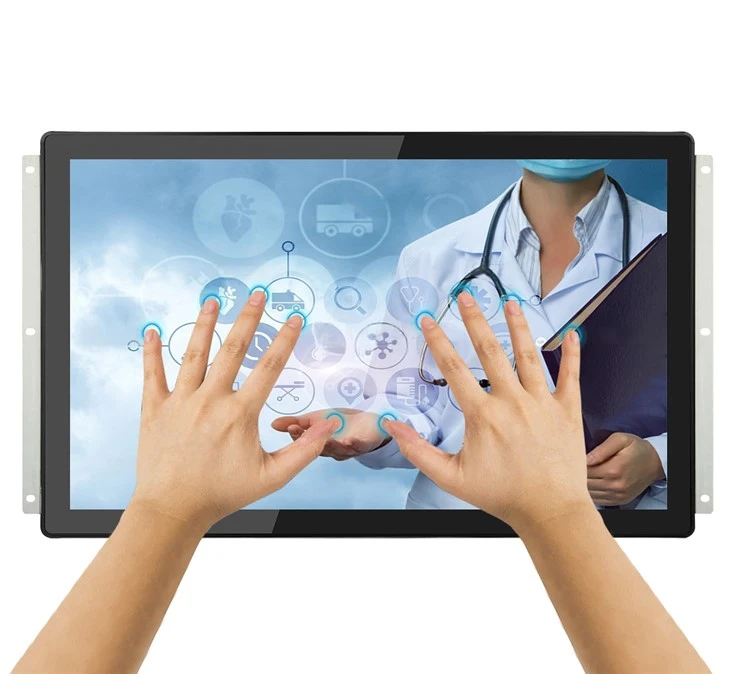

ACCURATETOUCH CONTROL
Adopting an original touch screen, it has high resolution, more sensitive response,and a superior experience without blind spots.The surface has a smoothsurface treatment and high stability.
Lots ofl/0 interfaces for options and can be customized
|
LCD panel( IPS screen) |
||||
|

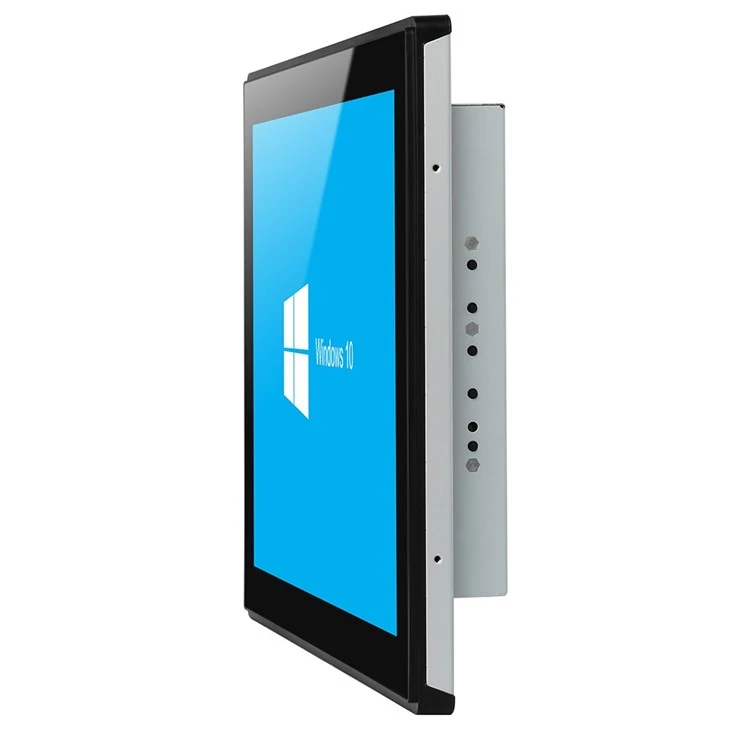

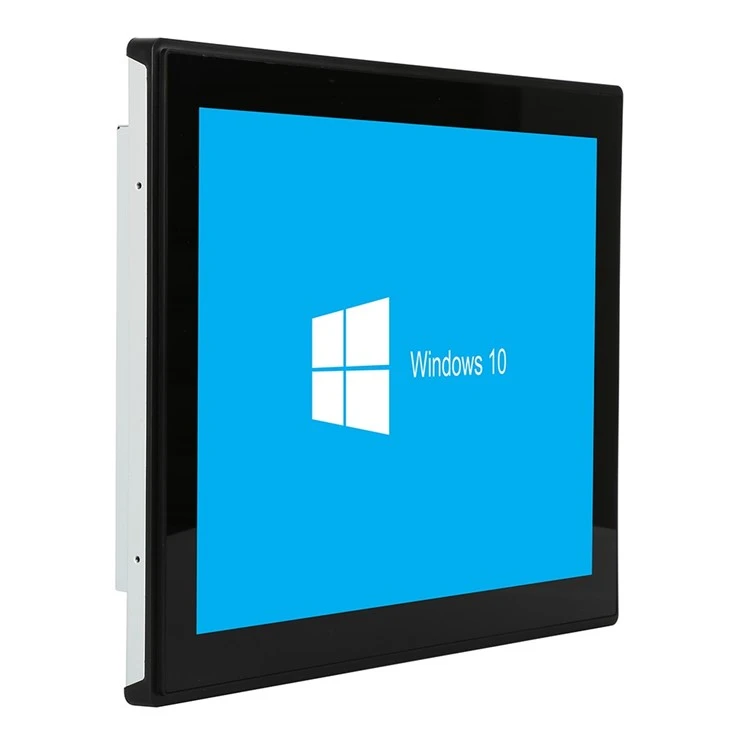

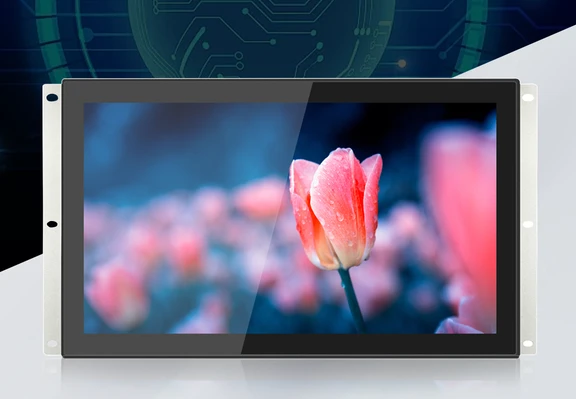

Bestview 18.5 inch industrial panel PC embedded open frame industrial touch panel PC |
||||
|
PC |
||||
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional) |
|||
|
Memory |
2GB DDR3, ( Max. 8G) |
|||
|
Hard Drive Capacity |
32G SSD or 320G HDD |
|||
|
Hard Drive Optional |
SSD: 32GB,64GB,128GB,256GB |
|||
|
HDD: 320GB,500GB,1TB |
||||
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|||
|
Wireless Network |
WIFI optional |
|||
|

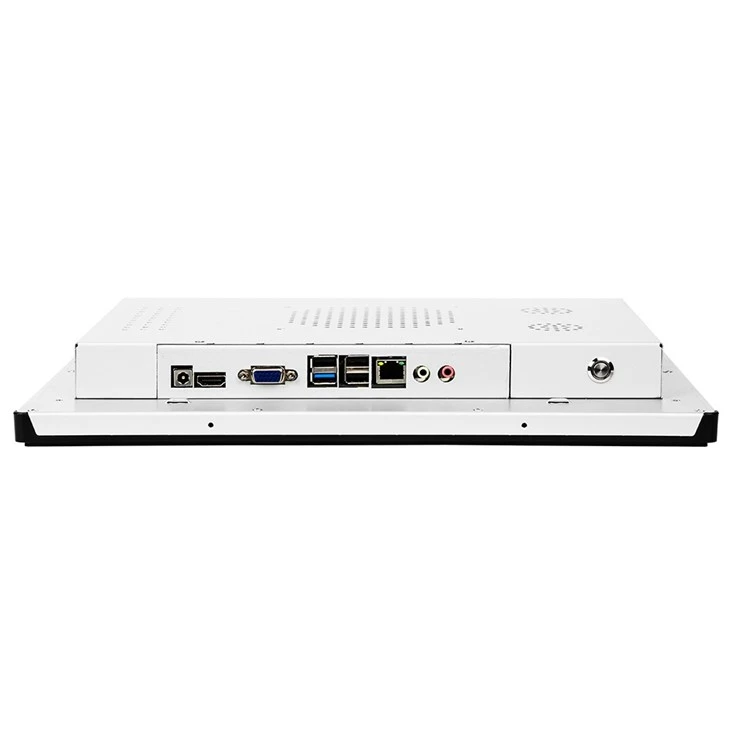

I/O Interface |
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
|||
|
Opetation System |
Preinstall test version Windows 7/8/10,Linux |
|||
|
Image Format |
Support BMP,JPEG,PNG,GIF |
|||
|
LCD panel |
||||
|
Panel size |
7,10.1,10.4,11.6,11.6,12.1,12.1,13.3,15,15.6,17,18.5,19,19,21.5,27,32,43 Inch |
|||
|
Resolution |
1024*600,1280*800,1366*768,1930*1080,1280*1024,1440*900 | |||
|
Brightness (cd/m²) |
350 cd/m2 |
|||
|
Response time |
15ms |
|||
|
Contrast ratio |
1000:1 |
|||
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|||
|
Touch panel |
||||
|
Touch Type |
10 points projective Capacitive touch optional |
|||
|
Touch Interface |
USB |
|||
|
Response time |
<8ms |
|||
|
Luminousness |
75-85% |
|||
|
Power Supply |
||||
|
External Power Supply |
AC 100 - 240V |
|||
|
Working voltage |
DC 12V |
|||
|
Power consumption |
≤18W |
|||
|
Operating Environment |
||||
|
Temperature range |
operating: -10 to 60°C, storage :-20 to 70°C |
|||
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|||
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|||
|
Packing Details |
||||
|
Accessories |
Power adapter, Wifi antenna |
|||
|
Other |
||||
|
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
|||
|
2) provide Floor standing to support the PC |
||||
|
Certification |
CE, FCC,ROHS |
|||
|
Warranty |
1 year warranty |
|||
