Multiple inspections to createindustrial quality
Every product needs to go through rigorous testing before leaving the factory.It can adapt to humid water and mist, high dust, high-low temperature,electrostatic and transport environment.

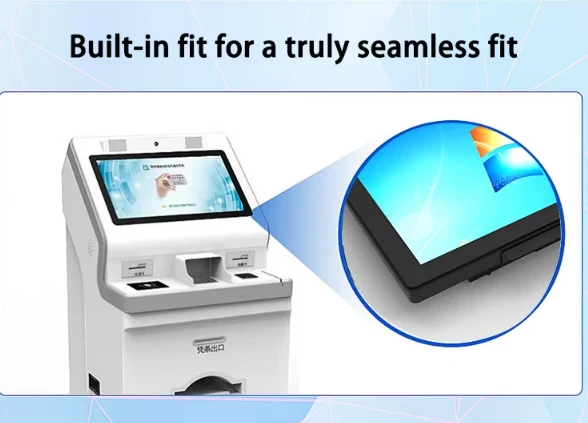

Built-in fit for a truly seamless fit

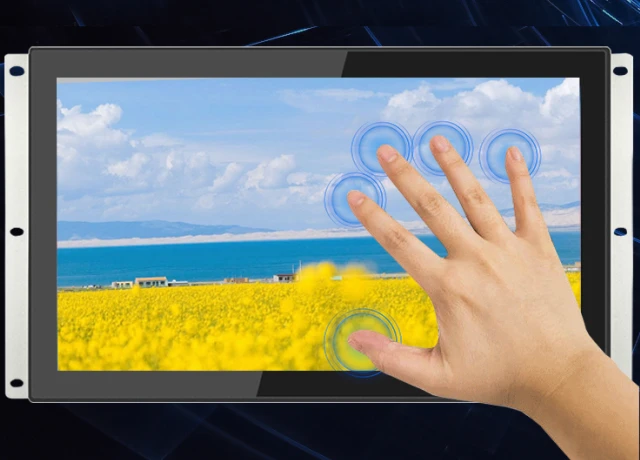

Capacitive touch pc
Projective capacitive touch positioning technologyis adopted.Fast response and high accuracy

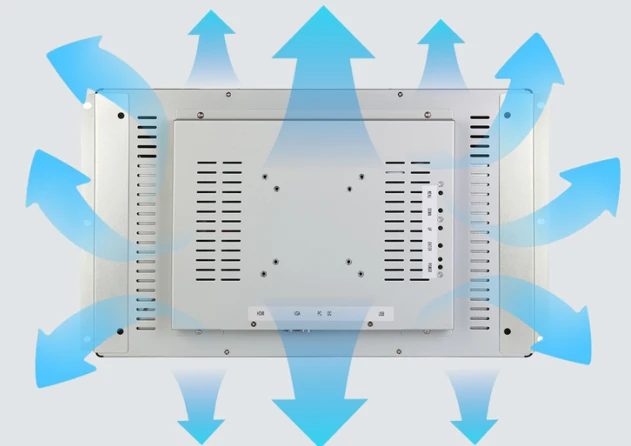

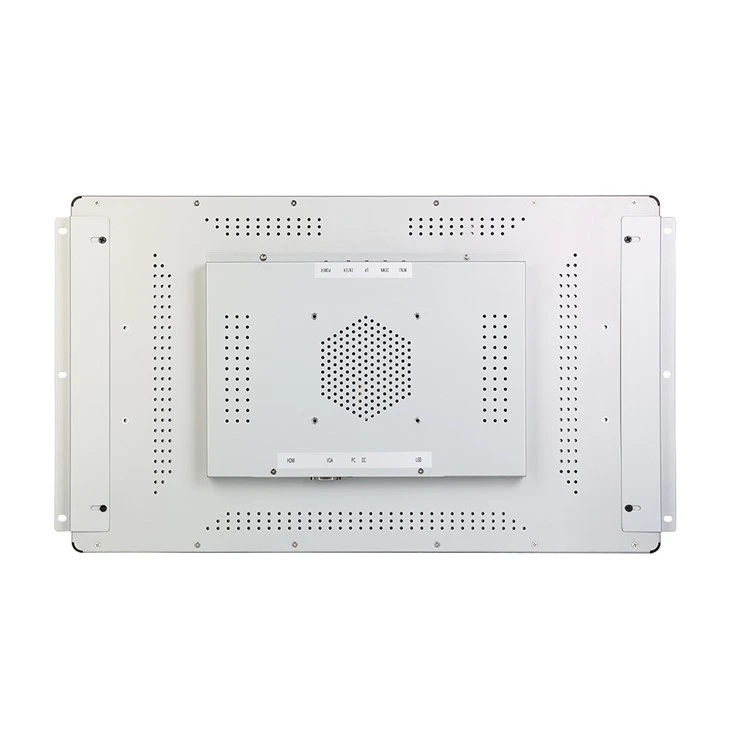

Metal back cover for strongheat dissipation
The fanless industrial control motherboard is combinedwith the all-metal back cover through aheat-conducting block to extract the hot air from the CPU to keep the motherboard running at a low temperature.Fanless structure, zero noise
Six advantages of industrial protection
Six advantages of our all-in-one machine
|
LCD panel( IPS screen) |
|
|
Color |
Black optional |
|
Panel size |
7,12.1,13.3,15,15.6,17,18.5,19,21.5,27,32,43inch optional |
|
Native Resolution |
1280*1024 |
|
Brightness (cd/m²) |
350-400nits |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
capacitive touch optional |
|
Touch Interface |
USB(RS232 optional) |
|
Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB |
|
HDMI |
1xHDMI |
|
DVI |
1xDVI or No |
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
WinXP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 80°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, touch pen,Touch driver disk,Remote Control, Stander optional |
|
Others |
|
|
Certification |
CE, FCC, ROHS |
|
Warranty |
2 years warranty |
|
Waterproof |
front panel ip65 waterproof |
