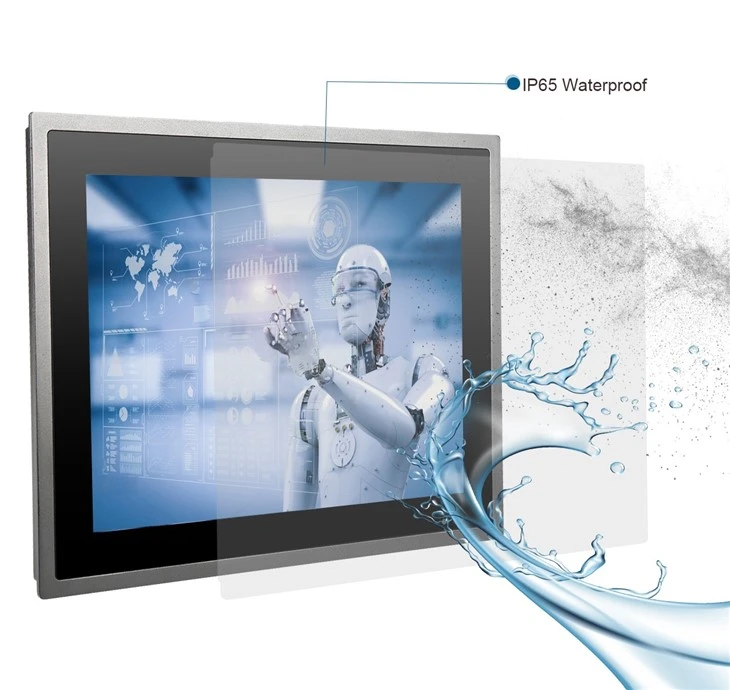

Flat, seamless, dust-proof and water-proof

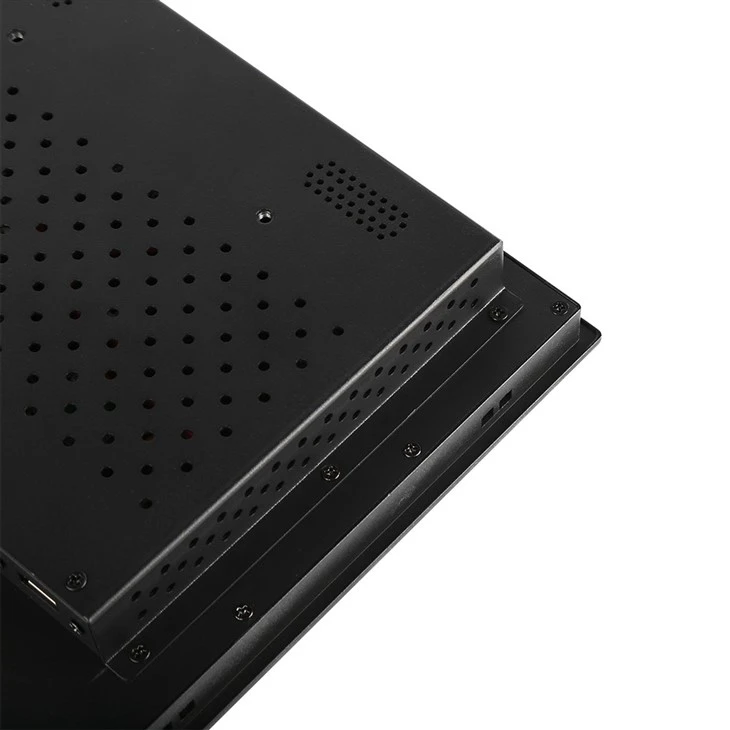

Efficient heat dissipation and stable operation
Three-dimensional fin-shaped heat sink, fast heat dissipation speed, no lag
It operates continuously day and night
Silent and low power consumption, stable operation for 7x24 hours
Thunderstorms are not afraid of impact
Resistant to magnetic and electrical interference, suitable for all kinds of harsh environments

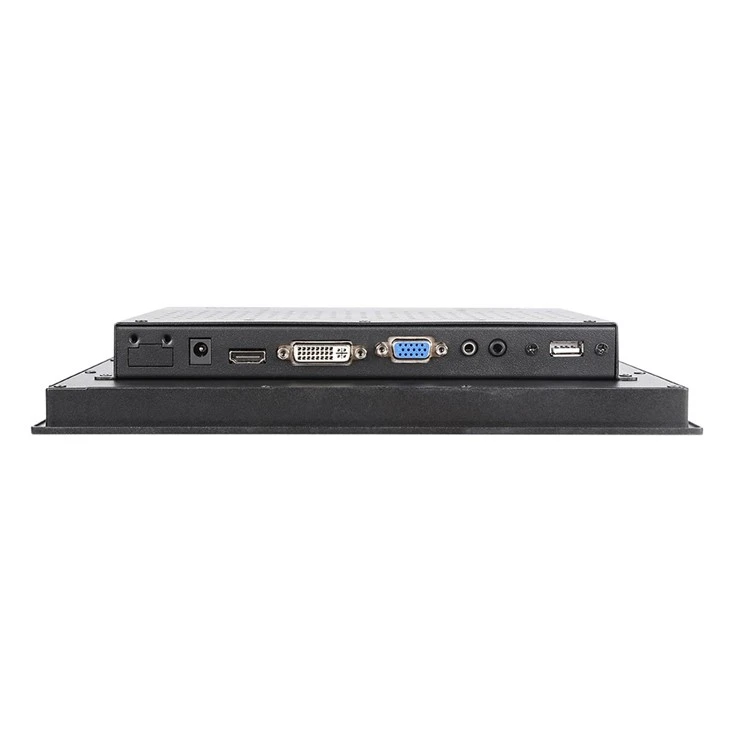

Rich interface expansion without boundarie
Multiple interfaces are preset to meet more scenarios, and the interface requirements support expansion
The 10-point touch response is highly sensitive
Precise touch control, fast response speed, 10-point touch, 50 million click life, 3ms ultra-fast response
Wide-temperature operation without fear of challenges
Wide temperature range from +70 °C to -10°C, suitable for more demanding environments
Operating system
Full compatibility
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

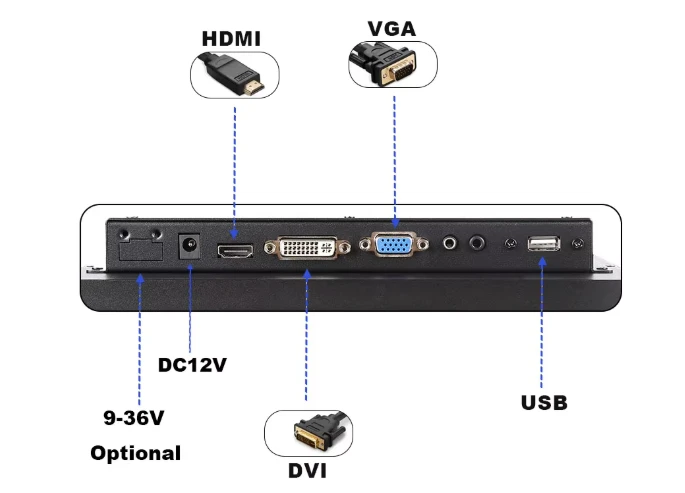

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|
Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
