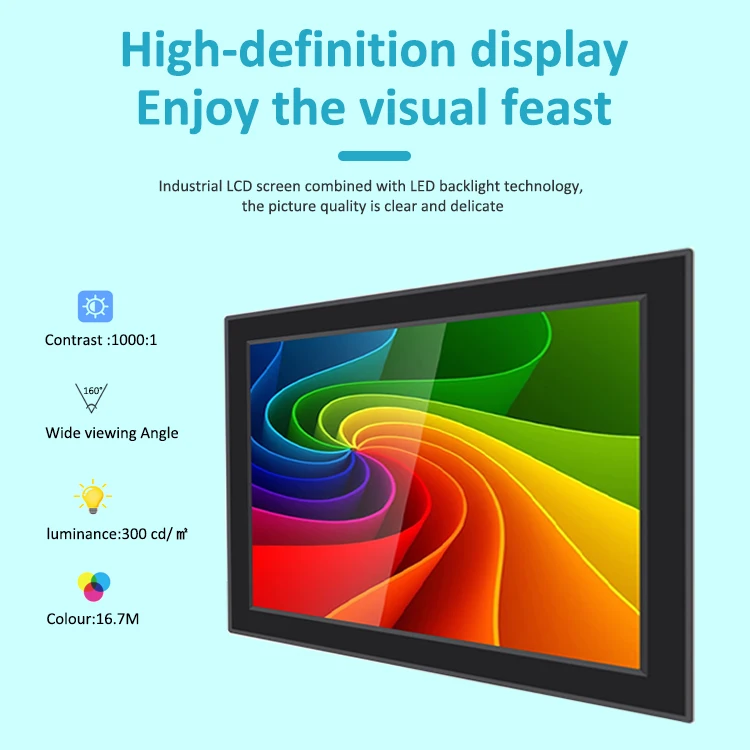

High-definition displayEnjoy the visual feast
Industrial LCD screen combined with LED backlight technologY,the picture quality is clear and delicate

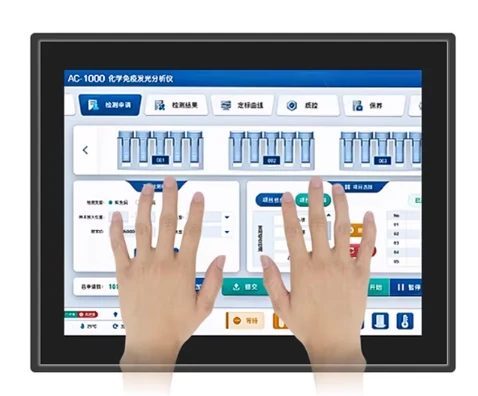

Precise touch,Responsive
Original capacitive touch screen, 10-point touch, no blind spotHighly analytical, better experience
Not afraid of high and low temperatures
The operating temperature is -10'c to 60'C,and supports ultra-wide temperature customization

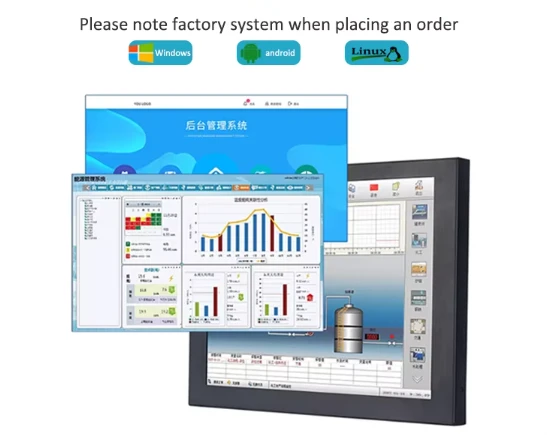

Compatible withmultiple operating systems
Please note factory system when placing an order
|
LCD panel( IPS screen) |
|
|
Panel size |
10.4" (4:3) or custom |
|
Native Resolution |
1024x768 |
|
Brightness (cd/m²) |
1000nits |
|
Contrast ratio |
1000:1 |
|
View angle |
85°/85°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|

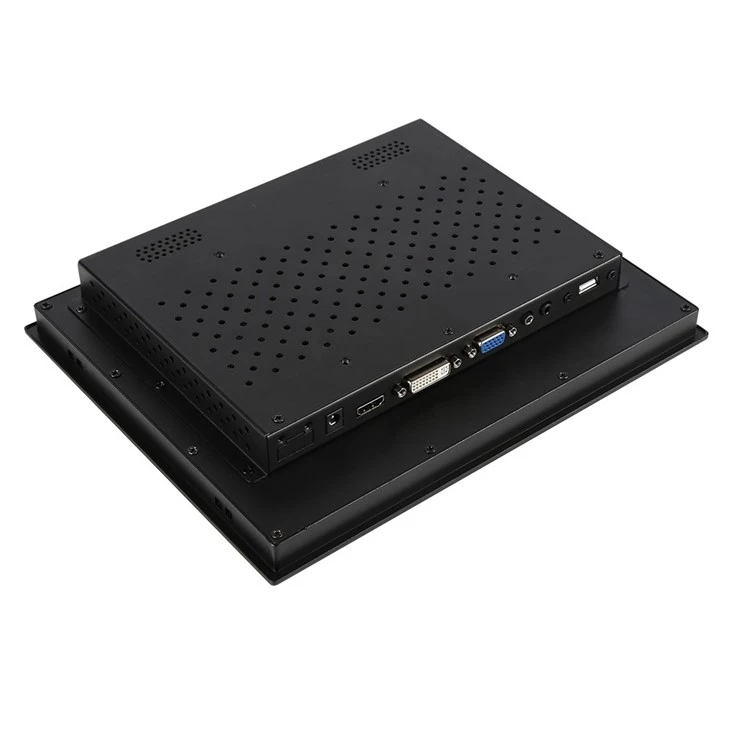

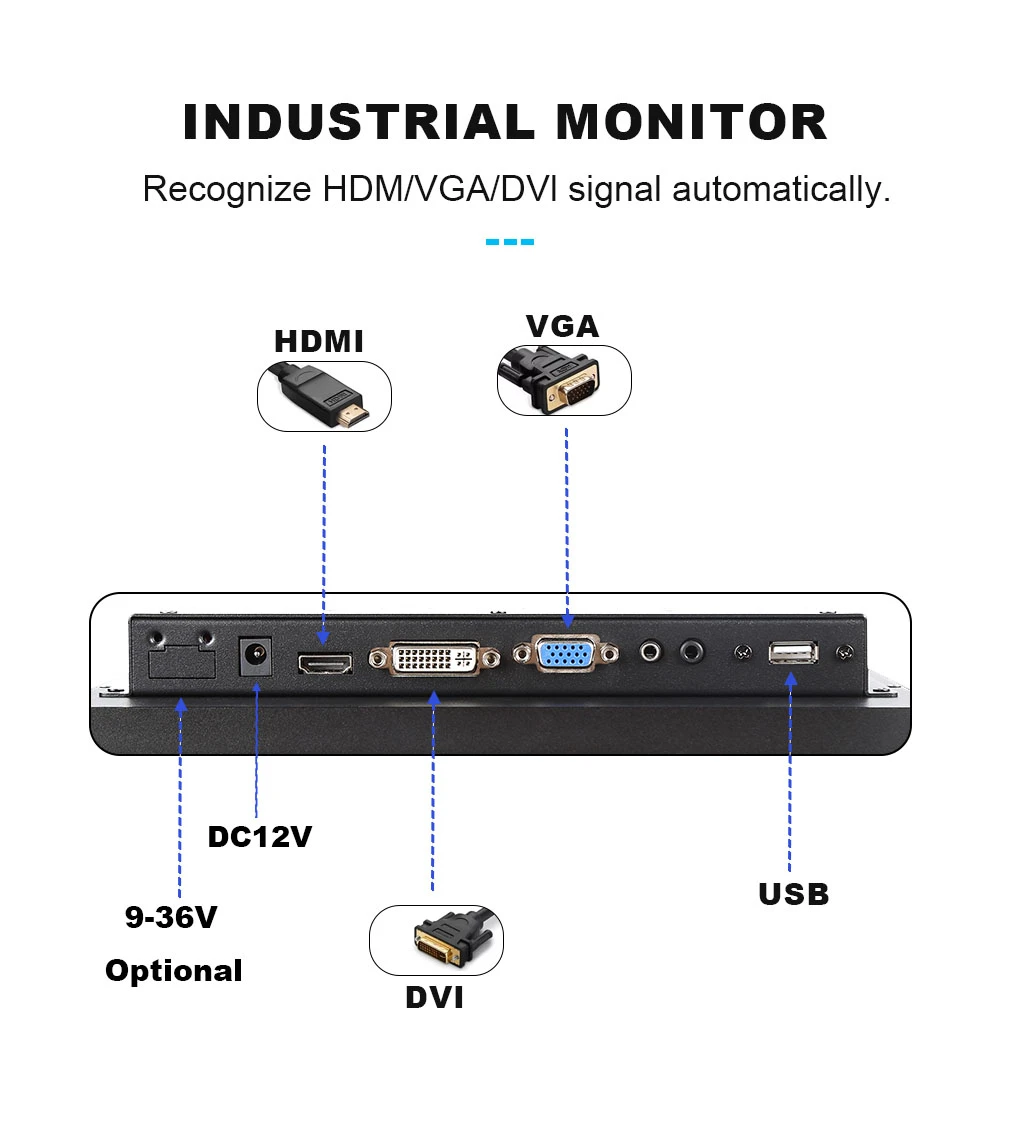

Signal Ports |
|
|
VGA |
1×VGA |
|
USB |
1xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|

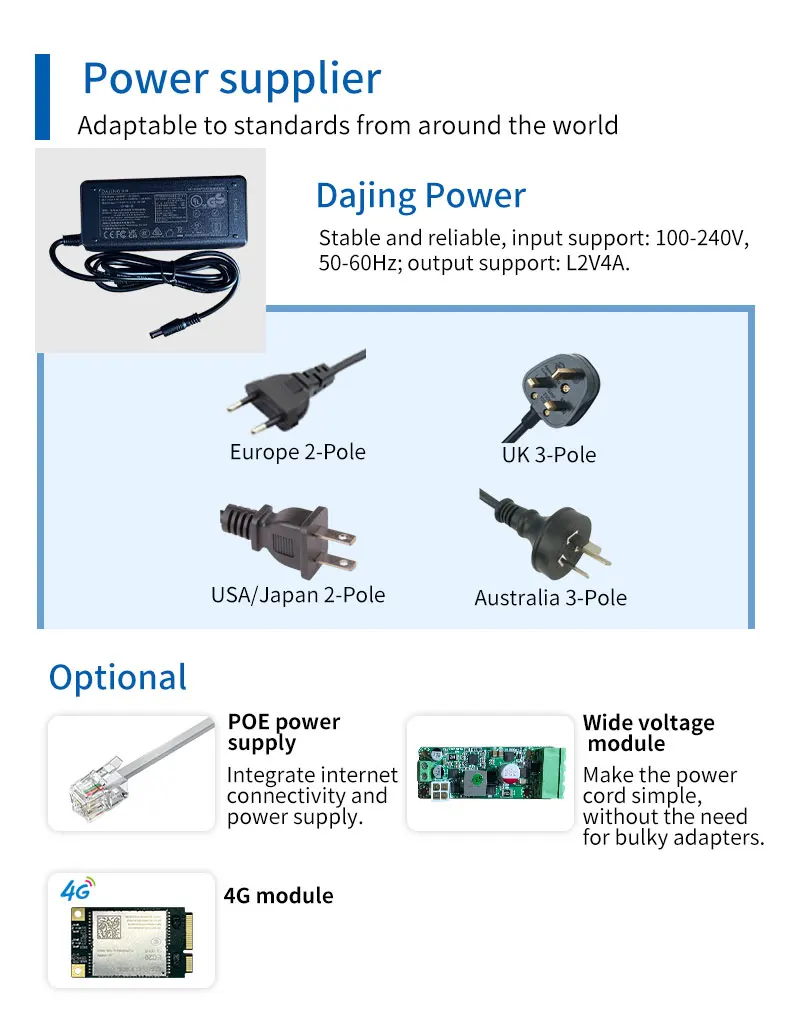

Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V 9-36V Optional |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
|
Packing Details |
|
|
Packing detail |
1pcs/box 3pieces/carton |
|

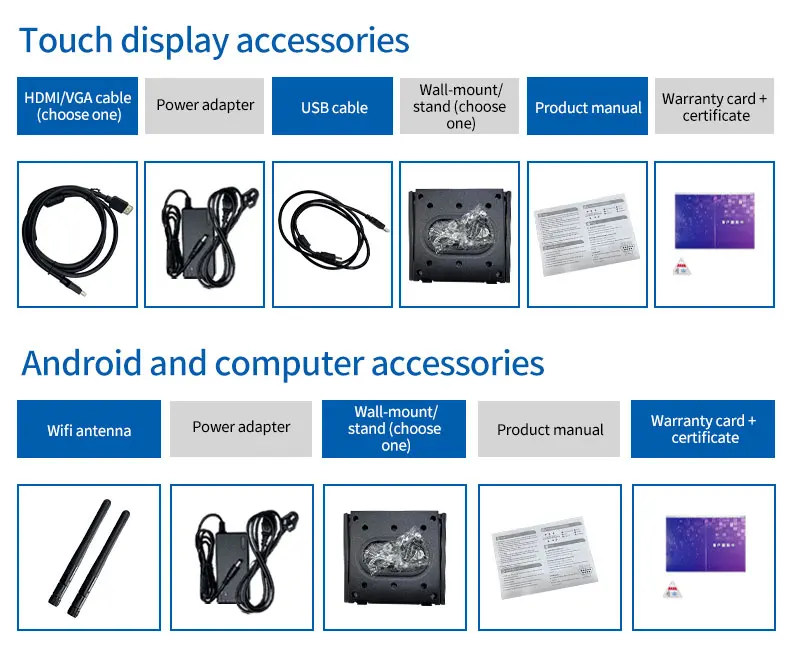

Accessories |
Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
|
Others |
|
|
Warranty |
1 year warranty |
